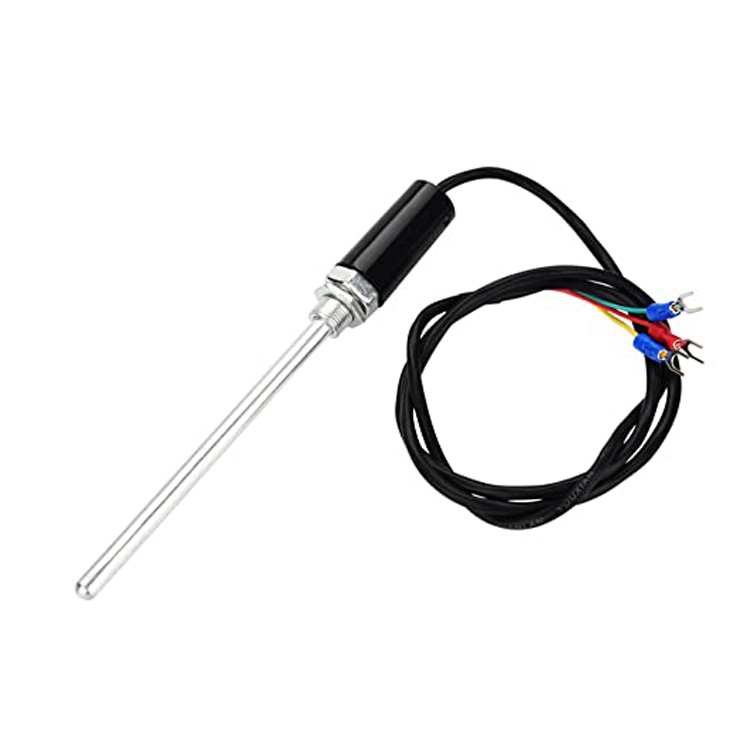

WZP-187 PT100 Thermocouple CU50 M12 Thermocouple Stainless Steel Waterproof Temperature Sensor Probe 1-5M
A Temperature Sensor Probe is a device used to measure temperature by inserting a probe into the material being measured.
Description
Product Description
WZP-187 PT100 Thermocouple CU50 M12 Thermocouple Stainless Steel Waterproof Temperature Sensor Probe 1-5M
This product is PT100 type stainless steel waterproof thermocouple, and can withstand a wide temperature range of -200 ~ 450. Adopted high-quality three-core high temperature, safe and durable shield wire. With great processing treatment, Argon arc welding seal, excellent sealing effect.Industrial thermal resistance is generally Pt100, Pt10, Cu50, Cu100, platinum thermal resistance temperature measurement range is generally -200 ~ 800℃, often used in power, chemical industry, injection molding, packaging, food, incubator, oven temperature measurement.
Features:①High precision;②High sensitivity; ③High temperature resistance; ④Fast response;
⑤Good shockproof effect.
Specification
Indexing number | PT100 |
Lead length | 1.5m, 2m (other lengths may be customized) |
Mounting thread | M12*1.5 |
Accuracy error | plus or minus 0.5% (100 degree error 0.5 degree) |

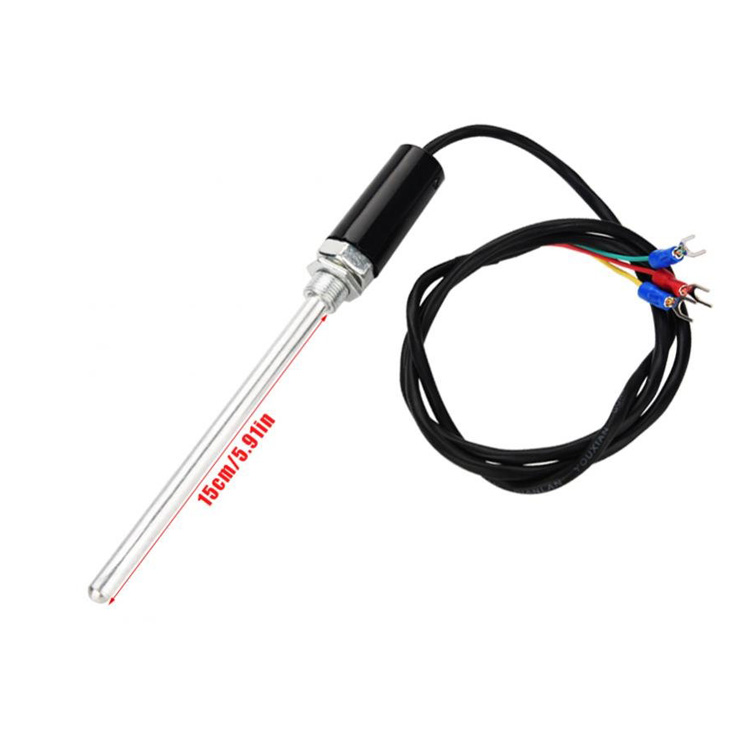

Insert depth | (The length of the metal part of the probe) specifications are as follows: 7*50, 7*100, 7*150, 7*200, 7*300, 7*500 (if you need other sizes, please explain) |
Temperature range | -200 ~ 400℃ (long-term working temperature is up to 350 degrees, not easy to damage) |
Reminder:
Note: The default probe is aluminum sheath, stainless steel should be specified separately
The thermal response time shall not exceed that specified in the following table :(s) | ||
Diameter(mm) | Thermocouple | |
Ungrounded | Grounded | |
2.0 | 0.5 | 0.4 |
3.0 | 1.2 | 0.6 |
4.0 | 2.5 | 0.8 |
5.0 | 4.5 | 1.2 |
6.0 | 6.0 | 2.0 |
8.0 | 8.0 | 4.0 |
Product show
