Factory Price Customized Specifications Temperature Sensor S B R Type Platinum Rhodium Thermocouple

Platinum Rhodium Thermocouple: High accuracy temperature sensor that uses platinum and rhodium wires for stable and precise temperature measurements in extreme conditions.


Category: Tag:

Description

Factory Price Customized Specifications Temperature Sensor S B R Type Platinum Rhodium Thermocouple
Product Description

A thermocouple is a temperature-measuring device consisting of two dissimilar conductors that contact each other at one or more spots. It produces a voltage when the temperature of one of the spots differs from the reference temperature at other parts of the circuit.

Thermocouples are a widely used type of temperature sensorfor measurement and control, and can also convert a temperature gradient into electricity. Commercial thermocouples are inexpensive, interchangeable, are supplied with standard connectors, and can measure a wide range of temperatures. In contrast to most other methods of temperature measurement, thermocouples are self powered and require no external form of excitation.

Specification of pt-rh thermocouple1) S/B/R type pt-rh thermocouple 2).wire diameter: 0.3 mm, 0.4 mm, 0.5 mm3).length:can be customized as for customer’s requirement4).measuring range:0-1600 C5).fixed device:screw thread/flange6).terminal box: water-proof type, splash-proof type, anti-explosion type, connector typeTechnical Parameters of pt-rh thermocouple1).material: PtRh10-Pt, PtRh30-PrRh6, PtRh13-Pt2).use temperature:0-1300,0-16003).max temperature: 1800°C4).experiment temperature: 0-1600°C5).thermal response Time:≤120 s
Conductor
material
Wire
Calibration
Accuracy
Class
Class
Accuracy
Temperature range(℃)
Accuracy
Temperature range(℃)
Ni Cr-Ni Si
K
1.5
or
0.4%t
-40-1000
2.5
or
0.75%t
-40-1000
Ni Cr Si-Ni Si
E
-40-1100
-40-1200
NiCr-Konstantan
N
-40-800
-40-800
Fe-Konstantan
J
-40-750
-40-750
Cu-Konstantan
T
1 or 0.4%t
-40-350
1.5 or 0.75%t
-40-350
Pt Rh 10-Pt
S
1 or 1+t-1100×0.003
0-1600
1.5
or
0.25%t
0-1600
PtRh 13-Pt
R
0-1600
Pt Rh30-PtRh 6
B
600-1700
Specification
Product name
Platinum rhodium thermocouple
Type
S/R/B
Material
99% high temperature corundum tube, Or GH3039 high temperature alloy tube or SIC protection tube
Stainless steel tube
OD φ22mm
Ceramic tube
OD φ16mm
Wire diameter
0.3mm, 0.4mm,0.5mm.
Platinum Rhodium Thermocouple
Ceramic tube OD
Total length
Immersion length
Connector tube OD
Connector tube length
Wire diameter
16MM
300MM
150MM
22MM
150MM
0.3MM
16MM
400MM
250MM
22MM
150MM
0.3MM
16MM
500MM
350MM
22MM
150MM
0.3MM
16MM
600MM
450MM
22MM
150MM
0.3MM
16MM
700MM
550MM
22MM
150MM
0.3MM
16MM
800MM
650MM
22MM
150MM
0.3MM
16MM
900MM
750MM
22MM
150MM
0.3MM
16MM
1000MM
850MM
22MM
150MM
0.3MM
Platinum Rhodium Thermocouple

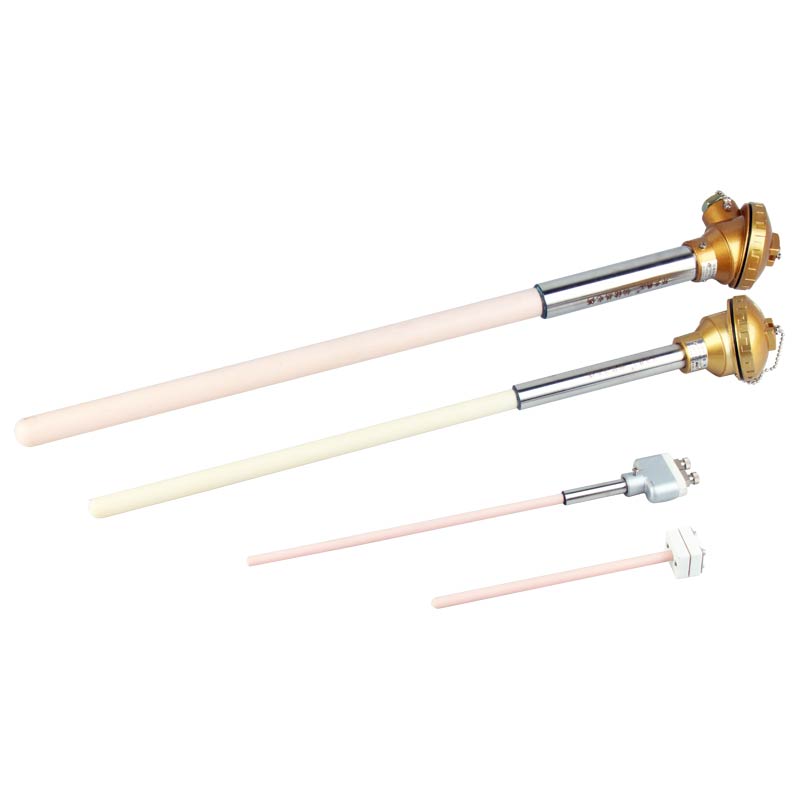

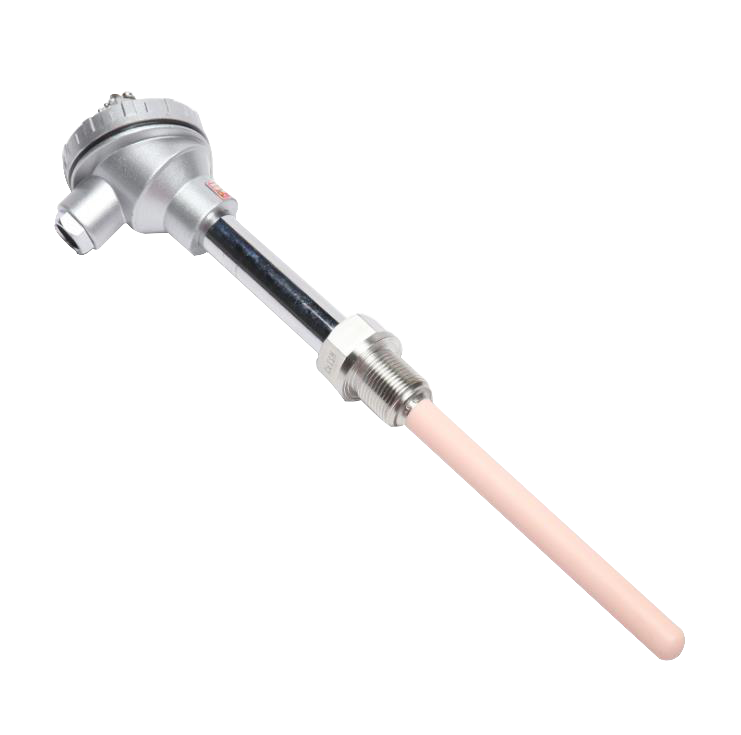

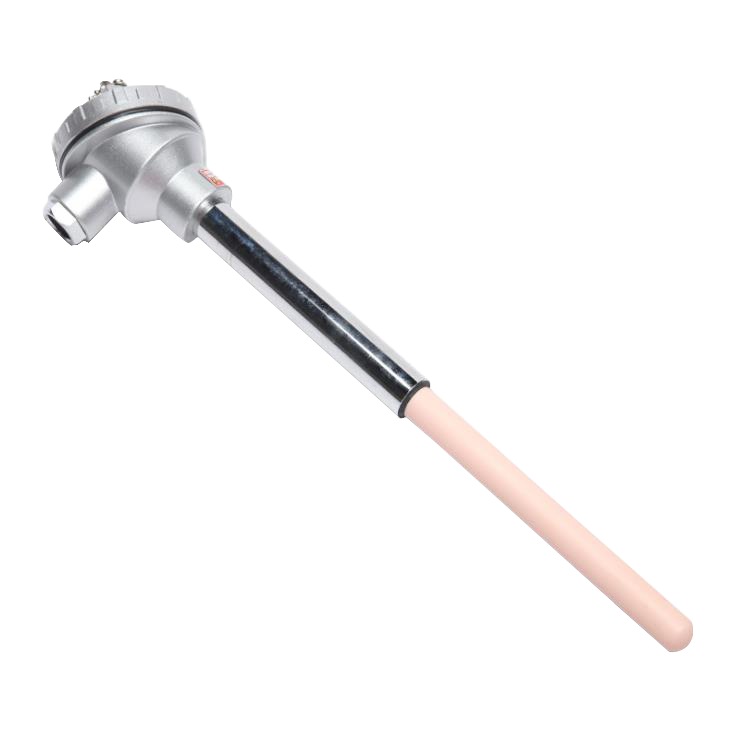

Details Images
Platinum Rhodium Thermocouple
Installation Instructions
Platinum Rhodium Thermocouple
Packing&Shipping
Platinum Rhodium Thermocouple
Company Introduction
Platinum Rhodium Thermocouple
Platinum Rhodium Thermocouple
