PP Plastic Single and Double Small Float Ball Switch Anti-corrosion Liquid Level and Water Level Sensor Automatic Sensor
PP Plastic Single and Double Small Float Ball Switch Anti-corrosion Liquid Level and Water Level Sensor Automatic Sensor
Description
PP Plastic Single and Double Small Float Ball Switch Anti-corrosion Liquid Level and Water Level Sensor Automatic Sensor
Product Description
PP Plastic Single and Double Small Float Ball Switch Anti-corrosion Liquid Level and Water Level Sensor Automatic Sensor
This product is made of high-quality polypropylene (PP) plastic and features excellent anti-corrosion performance, capable of stable operation in a variety of complex liquid environments. Whether it is acidic or alkaline liquids in industrial production or water, oil and other media in daily life, they will not cause any damage to it, greatly extending the service life of the product.

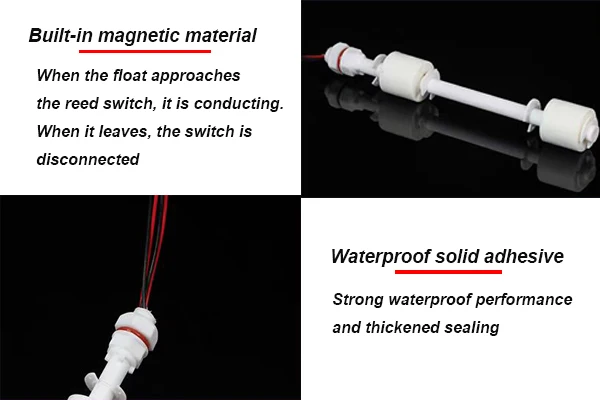

The sensor is mainly composed of a float ball and an internal reed switch. When the liquid level changes, the float ball will move up and down along with the fluctuation of the liquid level. The float ball is embedded with magnetic material. When the float ball approaches the contact point of the reed switch, the magnetic effect will cause the reed switch to perform on and off actions, thereby outputting a liquid level signal.
Specification

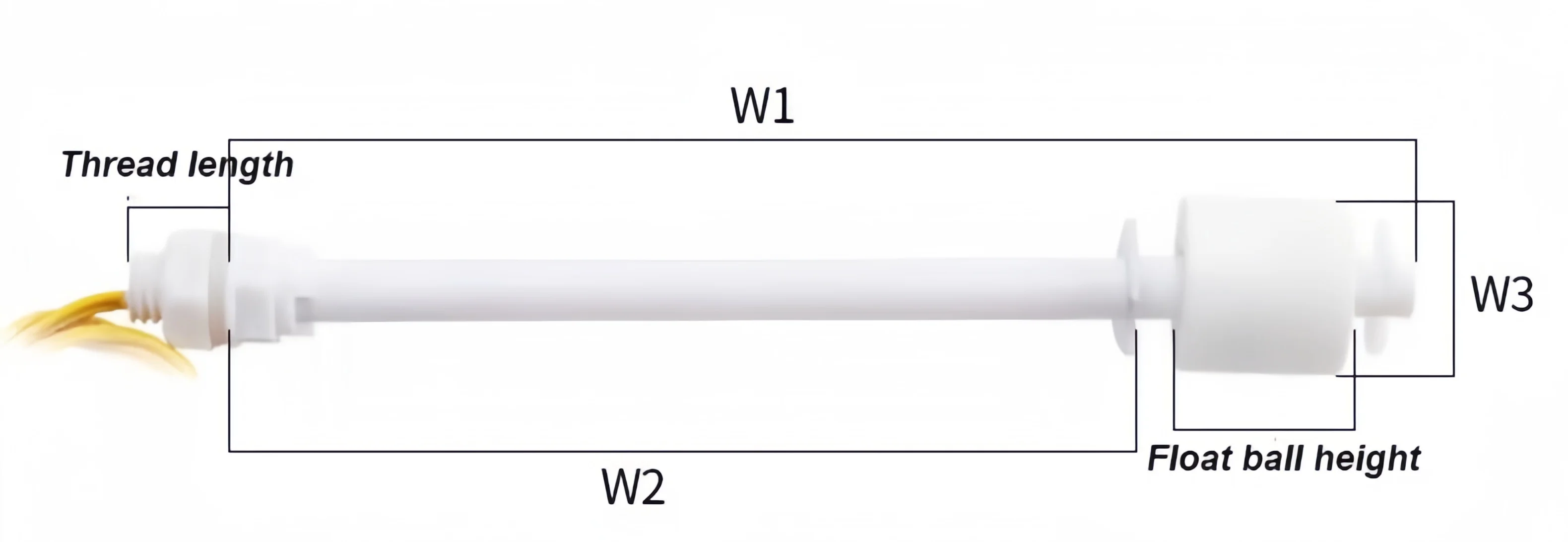

Specification | Total length | Thread length | Float ball height | W1 | W3 | |
P25 | 36mm | 10mm | 7.7mm | 26mm | 17.5mm | |
P35 | 46mm | 12mm | 17.5mm | 34mm | 17.5mm | |
P43 | 57mm | 12.5mm | 21mm | 44.5mm | 23mm | |
P52 | 66.5mm | 14.5mm | 24mm | 52mm | 23.5mm | |
P75 | 89.5mm | 15mm | 21mm | 74.5mm | 39mm | 22.5mm |
P85 | 97.5mm | 12.5mm | 21mm | 85mm | 50mm | 22.5mm |
P100 | 112.5mm | 12.5mm | 21mm | 100mm | 65.5mm | 22.5mm |
P150 | 164mm | 12.5mm | 21mm | 151mm | 115.5mm | 22.5mm |
P200 | 214.5mm | 12.5mm | 21mm | 202mm | 165mm | 22.5mm |
P250 | 265.5mm | 12.5mm | 21mm | 253mm | 215mm | 22.5mm |
P300 | 316.5mm | 12.5mm | 21mm | 304mm | 265mm | 22.5mm |
P350 | 367.5mm | 12.5mm | 21mm | 355mm | 315mm | 22.5mm |
P400 | 418.5mm | 12.5mm | 21mm | 406mm | 365mm | 22.5mm |
P450 | 469.5mm | 12.5mm | 21mm | 457mm | 415mm | 22.5mm |
P500 | 520.5mm | 12.5mm | 21mm | 508mm | 465mm | 22.5mm |
P800 | 826.5mm | 12.5mm | 21mm | 814mm | 765mm | 22.5mm |

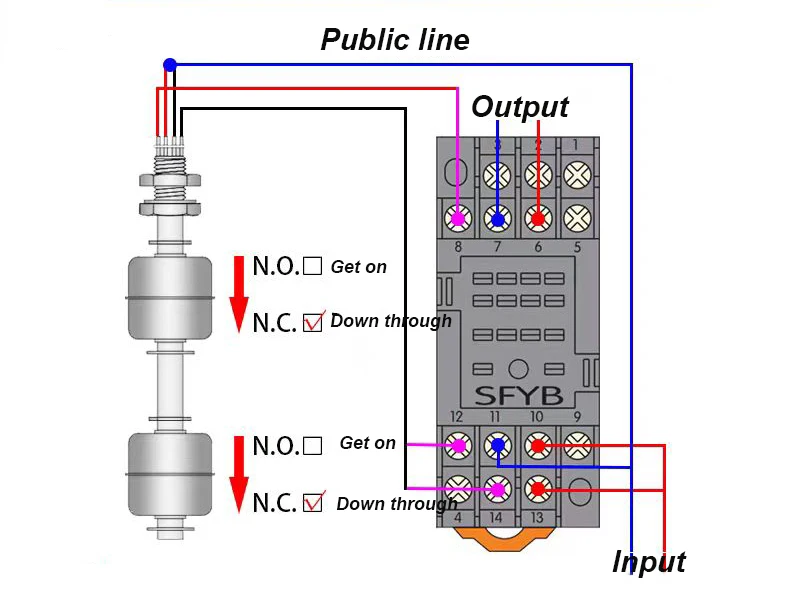

Instrument Wiring
