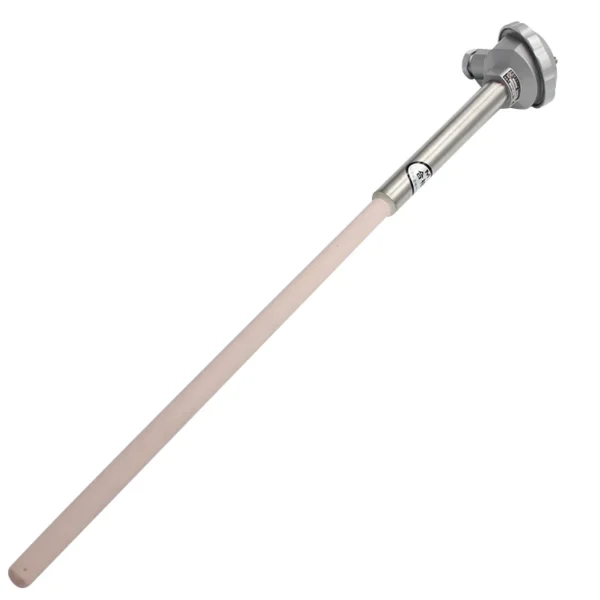

Premium Ceramic Thermocouple for Accurate Furnace Temperature Control
Premium Ceramic Thermocouple for Accurate Furnace Temperature Control
Description
Premium Ceramic Thermocouple for Accurate Furnace Temperature Control
Product Description
Thermocouple is a sensor that measures temperature. It consists of two different types of metals, joined together at one end. When the junction of the two metals is heated or cooled, a voltage is created that can be correlated back to the temperature.Thermocouple alloys are commonly available as wire.
Name | Stainless Steel Sheathed Dia 1.0mm 1.5mm 3.0mm 6.0mm Type K/j/n Probe Type Thermocouple |
Type | K / E / N / J / T / S / R / B |
Material | 304/316/316l/310s/3039/Inconel /Ceramic Tube |
Thermocouple head | 2 pin or 3 pin |
Probe diameter | 0.5mm to 10mm |
Probe length | Customized |
Thread | 1/4” 5/16” M4 M5 M6 M8 M12 fixed or flexible |
Tube diameter | 3-25mm |
Product Paramenters
Category | Code | Temperature Range |
Ni-Cr-Si —- Ni-Si-Mg | N | 0°C ~ 1200°C |
Ni-Cr—-Ni-Si | K | 0°C ~ 1200°C |
Ni-Cr—-Cu-Ni | E | 0°C ~ 800°C |
Fe—-Cu-Ni | J | 0°C ~ 750°C |
Cu—-Cu-Ni | T | 0°C ~ 350°C |
Pt-Rh13—-Pt | R | 0°C ~ 1600°C |
Pt-Rh10—-Pt | S | 0°C ~ 1600°C |
Pt-Rh30—-Pt-Rh6 | B | 0°C~ 1700°C |
Order Guide, Please Specify:
1) Probe Diameter, Length2) Material, Quantity3) Lead option and length or terminal configuration, sheath material4) thermocouple type **Better to provide drawings/pictures
