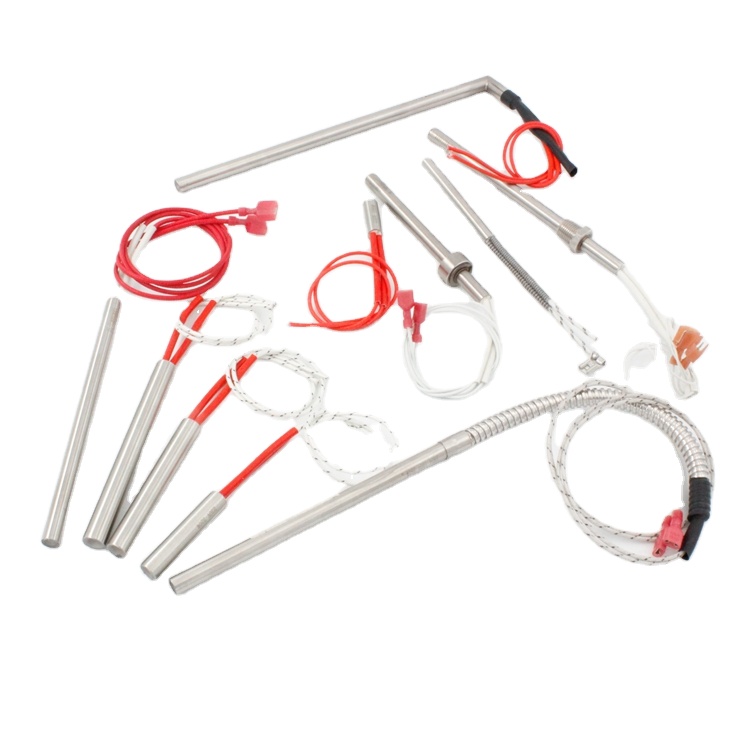

12v 24v 120v 80w 100w 500w stainless steel electric heating element rod cartridge heating

Heating element rod cartridge heating is a versatile and high-performance heating solution used in industrial heating applications for heating liquids and gases.

Category: Tags: ,

Description

12v 24v 120v 80w 100w 500w stainless steel electric heating element rod cartridge heating
Product Description

Advantages and Data sheets

  • Internal wiring: high temperature resistance, uniform heating, high thermal conductivity and difficult cable fracture.
  • External wiring: high temperature resistance, uniform heating and high thermal conductivity.
Resistance heating wire
NiCr 80/20 wire
Wattage Tolerance
+5%, -10%
Resistance tolerance
+10%, -5%
Length tolerance
±1 mm
Diameter tolerance
± 0.02mm
Standard Cold Zone
5-10mm
Insulation resistance (cold)
≥ 500 MΩ
Maximum leakage current (cold)
≤ 0.5 mA
Thermocouple Location
type J / K / Ground wire
heating element rod cartridge heating
heating element rod cartridge heating
heating element rod cartridge heating
heating element rod cartridge heating
heating element rod cartridge heating
The port part of the heating tube adopts terminal connection mode Is resistant to high temperature and works in the heating medium which can not conduct wiring at both ends.
heating element rod cartridge heating
heating element rod cartridge heating
Function:
1. Operating conditions: ambient temperature-20℃ ~ + 60℃, relative temperature <80%;
2. Electrical strength: cold withstand voltage AC work 1500V 50Hz lasts for 1 min without breakdown phenomenon;
3. Thermal insulation performance: AC 1000V 50Hz lasts for 1 min without breakdown phenomenon;
4. Leakage current <0.5MA; Insulation resistance> 30MΩ;
Packing & Delivery
heating element rod cartridge heating
heating element rod cartridge heating
carton box, wooden case
Customer Evaluation
heating element rod cartridge heating
Company Profile

Taizhou Yuling Electrical Appliance Co., Ltd. is a professional manufacturer engaged in tubular electric heating elements. Yuling has focused on this industry 42 years.

We were founded in 1996, located in Qingtong Industrial Park, Jiangyan District, Taizhou City, Jiangsu Province.

Yuling is a well-known supplier or Haier, Acuma, Sampux, Liren and other brand products. The products are sold to Europe, the United States, South Korea, Malaysia and other countries.

Yuling also passed ISO9001:2008 international quality system, CQC product safety, CE and RoHS certifications.

Boasting strong technical force, scientific management and perfect after-sales service, we have won the praise of customers.

Facing the increasingly fierce market competition, Yuling will continue to forge ahead.

FAQ
1. who are we?We are based in Jiangsu, China, start from 2010,sell to Oceania(50.00%),North America(30.00%),South America(10.00%),Southern Europe(10.00%).
2.UL CE RoHS CQC ISO9001:2008
3.The R&D team
4.Provide test report
5.Support product design5. what services can we provide?Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDU,Express Delivery；Accepted Payment Currency:USD,EUR,CNY;Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;Language Spoken:English,Chinese,French
