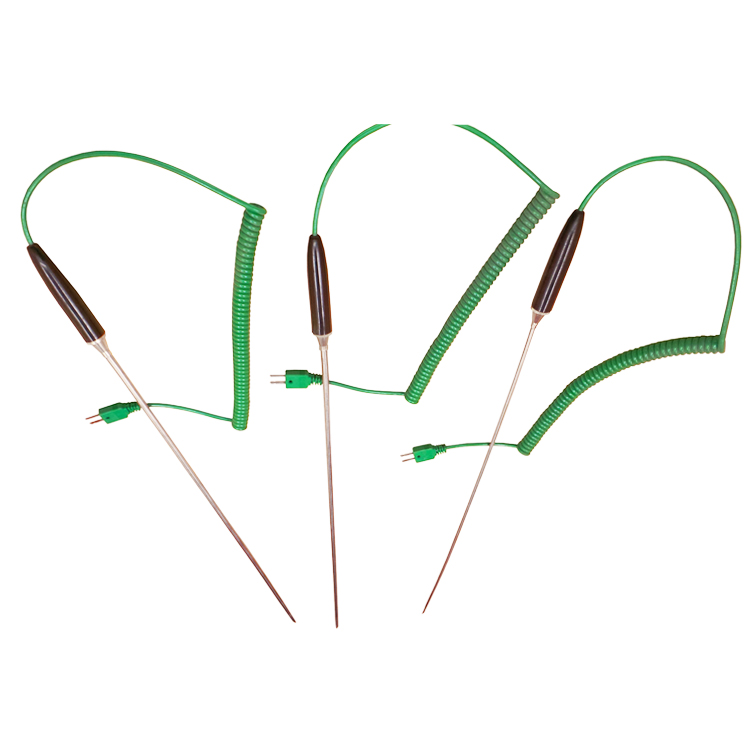

SS316 K-Type Handle Armored Thermocouple Temperature Sensor Sheath Stainless Steel Thermocouple
Handle Armored Thermocouple: Temperature sensor with a handle and metal-sheathed probe, ideal for portable temperature measurements in harsh environments.
Description
SS316 K-Type Handle Armored Thermocouple Temperature Sensor Sheath Stainless Steel Thermocouple
Product Description
Handle Armored thermocouple for measuring various shapes of solid medium surface temperature, as well as measuring liquid, gas and rubber internal temperature, the use of a very wide range, not limited by the surface shape of the object, light shape, easy to carry, for processing enterprises, especially widely used.
The product is used with digital temperature meter, used to measure the surface and liquid temperature, is widely used in metallurgy, chemical industry, textile, printing and dyeing, paper, rubber, plastics, ceramics, aluminum alloy, granary and other industrial sectors.
Advantage:
· Less thermal response time to reduce dynamic error · Flexible installation and use; · Large measuring range · High mechanical strength, good pressure resistance
Specification
Product name | K type small handle armored thermocouple |
Model number | WRNK-187 |
Graduation number | K ( can be N/E/J/T/PT100 ) |
Probe diameter | 3mm-8mm (customized diameter) |
Probe length | Customized according to customer requirements |
Probe material | stainless steel 304 (stainless steel 316, 2520, GH3030, GH3039 can be made) |
Temperature measurement range | -40-1200C |
Fixed method | No fixed method (thread or flange can be customized) |
Custom | Yes, can custom probe diameter. length, cable length. |
Package contents | 1 × sensor |
Reminder: The larger the probe diameter, the better the temperature resistance effect.
Buyers are requested to provide the actual measurement range as much as possible so that we can adapt to the appropriate diameter and material.
Product number | TYPE | diameter | length | worke end form |
WRMK-187 | N | Φ3-Φ8 | 300 400 500 600 700 800 900 1000 | insulated |
WRNK-187 | K | |||
WREK-187 | E | |||
WRCK-187 | T | |||
WRFK-187 | J | |||
WRMK-187 | N | shell type | ||
WRNK-187 | K | |||
WREK-187 | E | |||
WRCK-187 | T | |||
WRFK-187 | J |
The thermal response time shall not exceed that specified in the following table :(s) | ||
Diameter(mm) | Thermocouple | |
Ungrounded | Grounded | |
2.0 | 0.5 | 0.4 |
3.0 | 1.2 | 0.6 |
4.0 | 2.5 | 0.8 |
5.0 | 4.5 | 1.2 |
6.0 | 6.0 | 2.0 |
8.0 | 8.0 | 4.0 |
Product show
