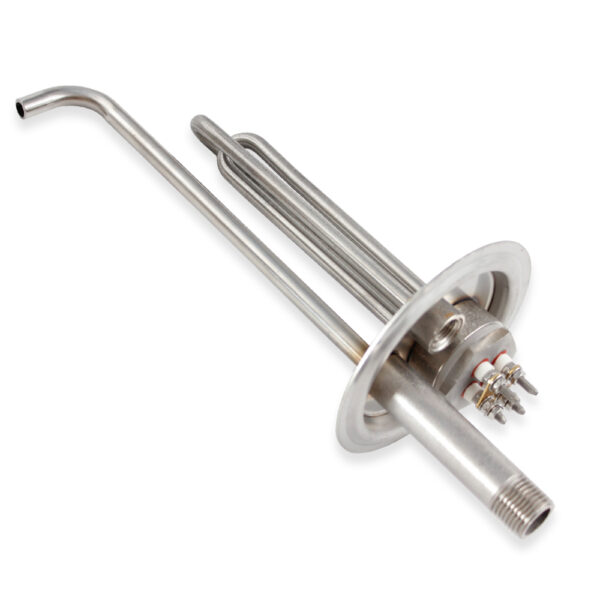

48V Element Immersion Dc Water Heater Heating Element With Thermostat
48V Element Immersion Dc Water Heater Heating Element With Thermostat
Beschreibung
48V Element Immersion Dc Water Heater Heating Element With Thermostat
1. The heating elements can be used for both dc(solar PV , battery 12V/24V/36V/48V or custom)and AC electricity(110v/220v/380v or custom), according to customers’ requirements.
2. There are many types of terminals for wiring.
2. There are many types of terminals for wiring.
3.We fill the tube with high purity magnesium oxide powder for longer service life.
4.Custom the Flange size, sheath material, watt,voltage, immersion length, according to applications.
5.Explosion-proof & temperature control features also can be provided, if required.
6. The heating elements are CE,ATEX, CQC,ISO9001,ROHS,UL,CSA certified.Any request, please do not hesitate to let me know.
5.Explosion-proof & temperature control features also can be provided, if required.
6. The heating elements are CE,ATEX, CQC,ISO9001,ROHS,UL,CSA certified.Any request, please do not hesitate to let me know.
Produktmerkmale:
* The size and power all can be designed according to the working environment
* More safer than AC electric
* Environment protection and energy saving.
Spezifikation
Technical Parameter | |
Rohrdurchmesser | Φ6,8 mm – φ20mm |
Rohrlänge | 200mm – 2000mm(customized) |
Thread/tri-clamp/Flange | 1”/1.25”/1.5″ oder individuell angepasst |
Length Tolerance | ±1.5% |
Stromspannung | 12V/24V/36V/48V/110v/220V/380V or Customized |
Wattzahl | 300W/500W/1kw /1.5kw/3kw or customized |
Isolationswiderstand | ≥1000M |
Watttoleranz | +5% – 10% |
Leakage current | ≤0,5 mA |
Widerstandsdraht | Ni80Cr20 or Cr25AI5 |
Sheath Materials | 304 Edelstahl, , 310 Edelstahl, 316 Edelstahl, Incoloy 800, Incoloy 840 |
Surface Treatment | Polishing, coating, plating |
How to order ?Pls provide this informations as follows:(example)1.Vottage :220/380V 2.Wattage :6KW3.Length: 600MM4.Thread: 1 1/2″5. Material: Edelstahl, AISI 321 304, SUS 316L
Anwendung
This product is applicable to Standard American water heater element replacement, Wasservorwärmung, Camper, Motorhäuser, Industriemaschinen und -geräte, Wird über die Autobatterie betrieben und sorgt überall für tragbares Warmwasser, Direkte Wind- und Solaranwendungen und viele mehr, Viele weitere Verwendungen, bei denen Wärme- oder Umleitungslasten benötigt werden.
