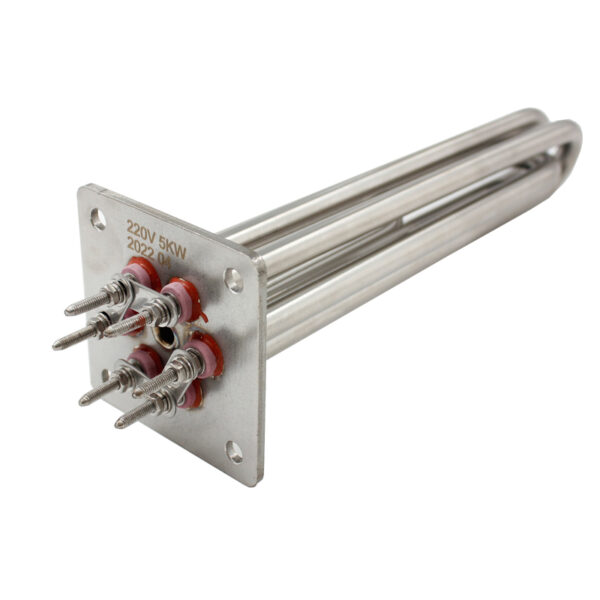

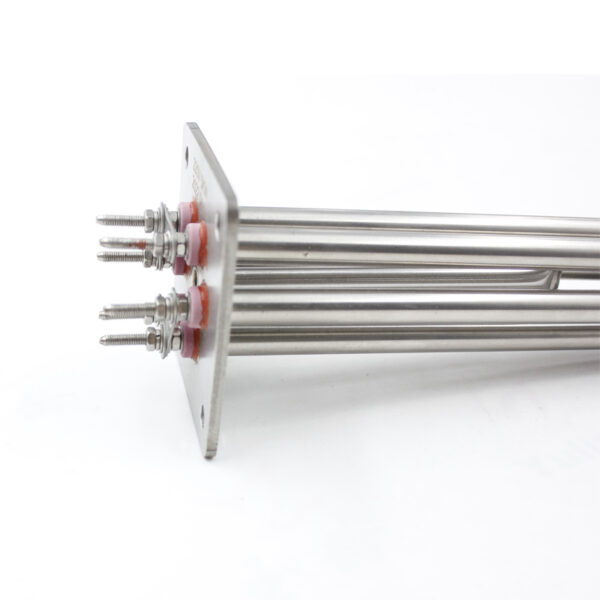

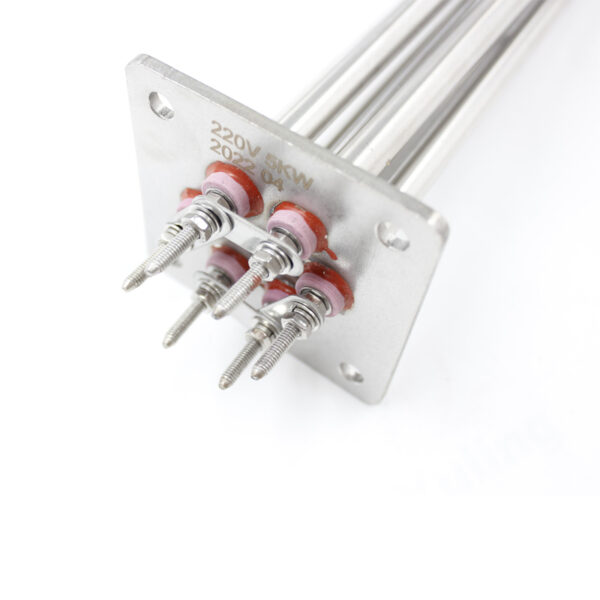

220v 5kw工业电阻油管式水锅炉电法兰浸入式加热器元件
220v 5kw工业电阻油管式水锅炉电法兰浸入式加热器元件
描述
Flange water heater element are commonly used in many chemical, petroleum and water based applications. YULING flange heaters allow the flexibility of using many different alloys to help resist corrosion and maintain life longevity of the flange heating element.
Steel flanges are typically used for lubricant oils, heavy and light oils, waxes as well as mildly corrosive liquids and low flow gas heating.Flange immersion heaters are constructed of hairpin bent tubular heater elements brazed or welded into ANSI standard flanges or plate flanges of various shapes and sizes. ANSI flange heaters are typically used for large volume, high power and/or higher pressure applications. Plate flange heaters are typically custom designed for use in smaller pieces of equipment such as boiler and chillers.
有两个连接, 一个线程连接, 常规规格大小G1 / 2–2 英寸, 第二个是法兰连接. 也称为平法兰连接 . 通用规格尺寸DN50mm – DN300mm, 法兰电管法兰通常使用的材料是黄铜, 不锈钢, 10 钢, 管道材料常用 10 钢, 不锈钢, 铜. 常规规格, 1.5千瓦, 3千瓦, 6千瓦, 9千瓦 , 12千瓦, 15千瓦, 30KW至500kW, ETC.
用于电水锅炉, 电锅炉, 太阳能系统, 太阳能水箱, 化学池, 洗澡, 游泳池和其他要加热的地方.

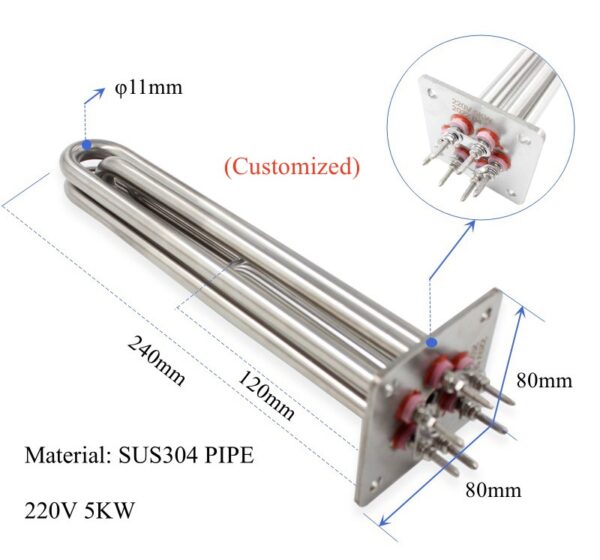

SPECIFICATIONS FOR 80mm Square Flange Immersion Water Heating Element |
管材材质: 304 不锈钢电压: 220v/380V电源: 5KW/6KW/9KW/12KW法兰: 80MMx80MM管径: 11毫米封装: 1PC x 浸入式加热元件应用: 热水器
热强度 | 不超过30w/cm2 (可取的) |
电压 | 220V |
力量 | 5千瓦(定制) |
排气极限 (当冷的时候) | 排气极限 (当冷的时候) |
绝缘 (当冷的时候) | 5 最小欧姆 500 最低瓦数 |
介电强度 | 1500v. 1/秒 |
工作温度 | 650 最高摄氏度 |
保修单 | 1 年 |
功率耐受性 (w) | +5 % – 10 % |
寒冷地区 | 取决于长度和直径 5-25mm |
订购, 请指定:
1. Flange size and pressures 2.Heating element watt density 3. 你的坦克的长度 4. 护套材质 (腐蚀性或非腐蚀性) 5. 腐蚀剂温度 6. 暴露腐蚀物的通气程度 7. 腐蚀剂的速度
