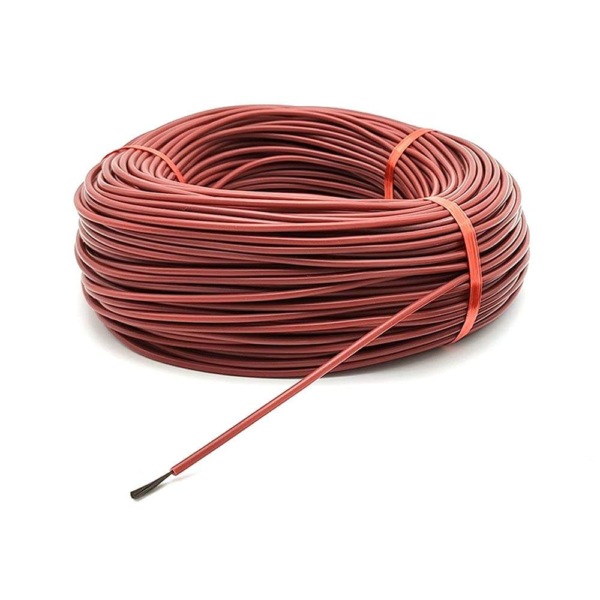

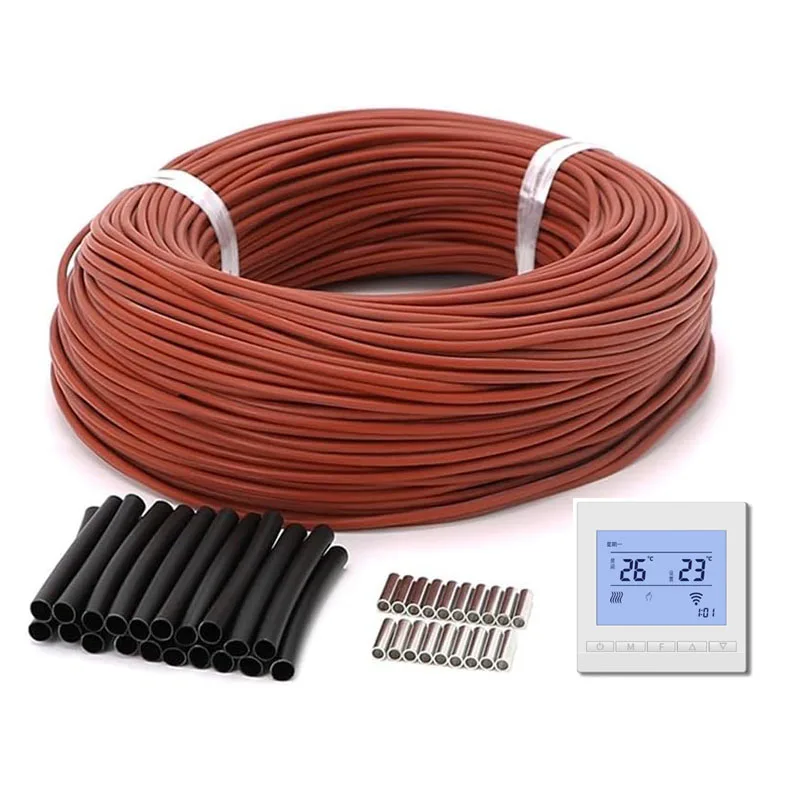

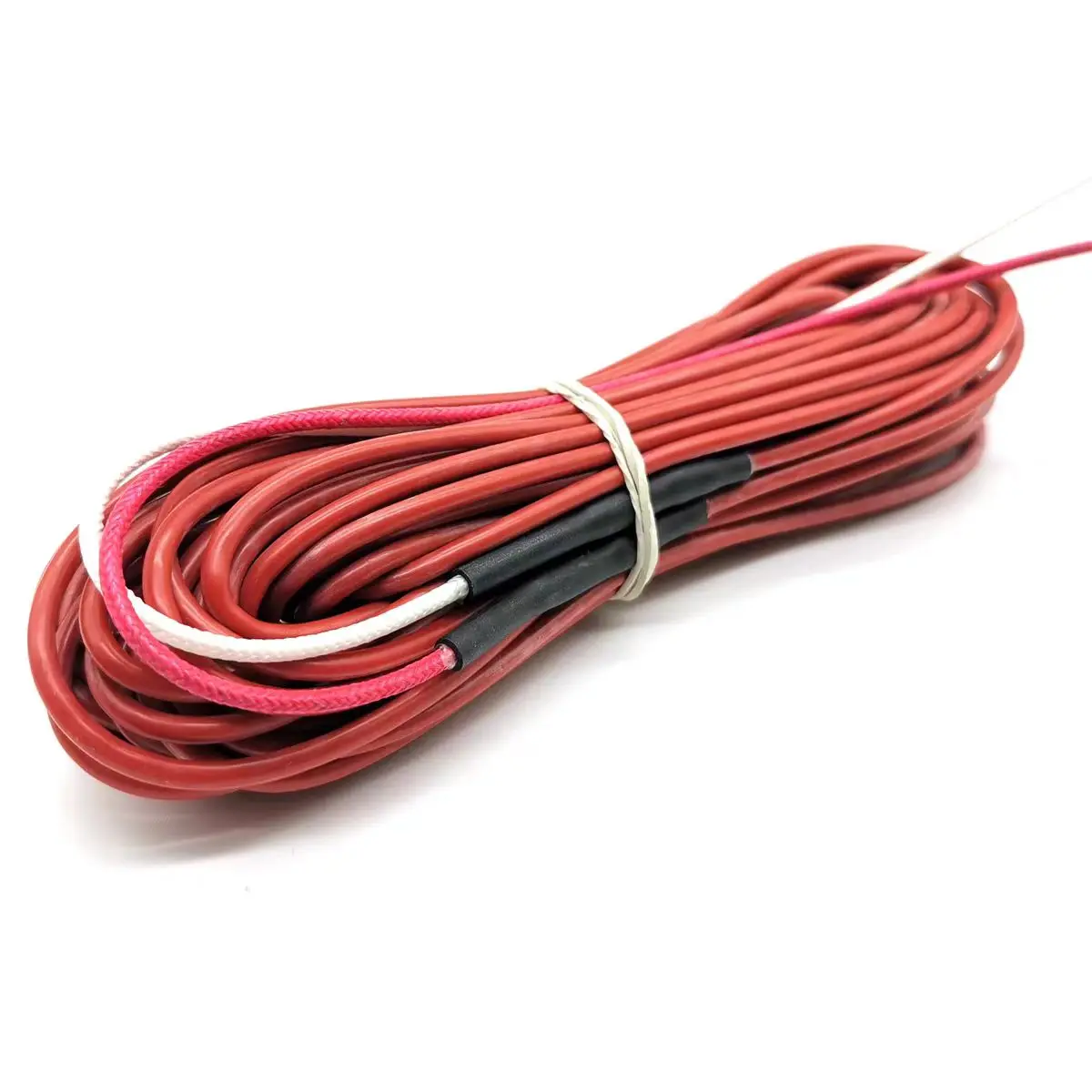

Heater Part 12K 200C Red Low Wattage Carbon Fiber Heating Electric Silicone Part for Floor Heating Pads
描述
产品描述
产品名称 | Carbon fiber heating wire |
导体 | Imported carbon fiber wire |
绝缘 | Silicone/PTFE |
电压 | DC 3-600V / AC 12-380V |
力量 | Voltage*Voltage/(Length*Resistance) |
从 | 硅橡胶: 2-4毫米; 聚四氟乙烯: 1.4-3毫米 |
Heating conductor: 1K, 2K, 3K, 6K, 9K, 12K, 18K, 24K,36k,48kInsulating material: 硅橡胶, FluoroplasticWorking voltage: The cable can work on different voltage, but need to use a suitable length, if you don’t know how to calculate the power, please contact us.Key features：* Rapid Heating: Carbon fibers heat up quickly due to their high thermal conductivity.* Even Heat Distribution: The uniform structure of carbon fibers ensures consistent heating across the wire’s length.* Energy Efficiency: Minimal energy loss during heat conversion makes it a cost-effective option.
Usage instructions

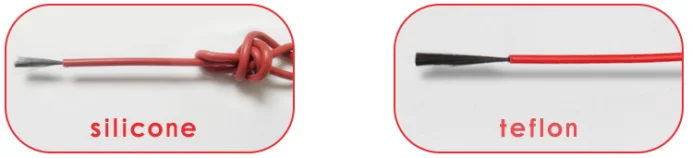

1.K represents the meaning of thousands?1K is a thousand silk, 24K is 24 thousand silk (24000) compositionDifferent K numbers represent different resistorsl2.The difference between silica gel and TeflonPTFE/PFA/FEP carbon fiber heating wireAdvantages: Wear, 耐腐蚀性能, no smellDisadvantages: Relative to the silicone are not softSilicone carbon fiber heating wireAdvantages: Resistant to bending, softDisadvantages: There is smell

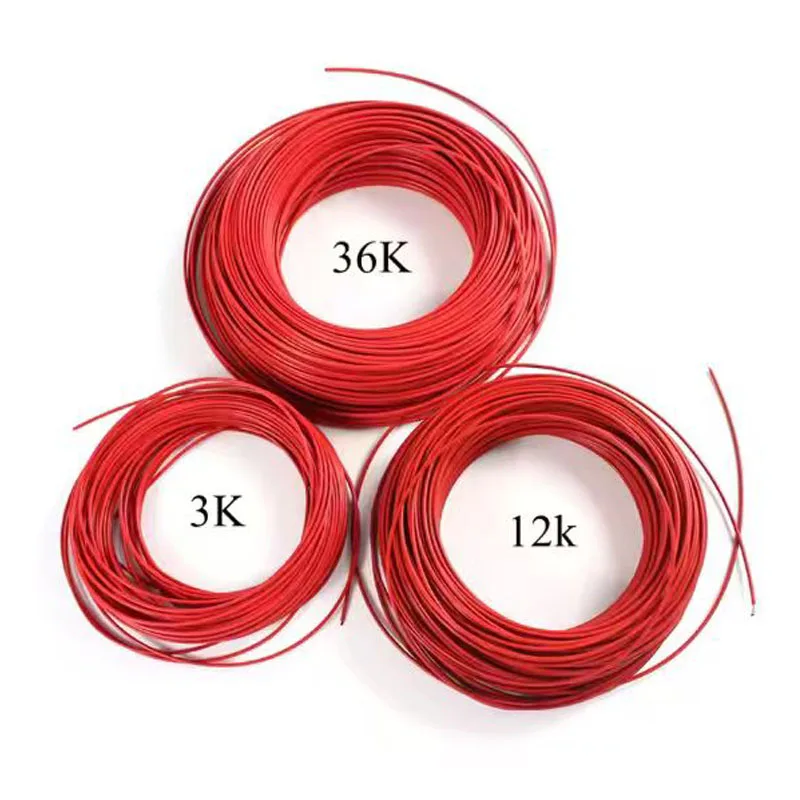

3.What is the resistance per meter?1K=400Ohm/m, 2K=220Om/m, 3K=133hm/m, 6K=74Ohm/m, 9K=43Ohm/m, 12K=33Ohm/m, 15K=24Om/m, 18K=21Ohm/m, 24K=17Ohm/m, 36K=12Ohm/m,48K=9Ohm/m4. What is the power of the cable? And what is heating temperature?1): 1. The power of the cable is based on the length that you use, you can calculate the power according to above examples.2). Power = 5W/m, the temperature is about 30~40C degrees;Power = 10W/m, the temperature is about 40~50C degrees;Power = 15W/m, the temperature is about 50~60C degrees;Power = 20W/m, the temperature is about 60~70C degrees;Power = 25W/m, the temperatuee is about 70~90C degrees. Please notice that this is for your reference, not exactly right because of different test conditions.5. How to calculated power？Product power calculation:(Voltage*Voltage)÷(resistance*length)=power12K=33ohm/meterFor example, using 10m 12K carbon fiber cable on 220V, the power is:220V*220V÷(10meters*33Ω)=150WFor example, using 15m 12K carbon fiber cable on 220V, the power is:220V*220V÷(15meters*33Ω)=100WThe longer the length, the smaller the power of the heating linePrecautionsThe heating wire can not overlap when used! Can not cross! Cross-over will make the heating line local temperature higher than the melting point of the protective layer, will damage the heating wire!6. About installationThe normal laying power is 100-160 watts per square. Different areas can be increased or decreased according to the room’s own insulation and the type of floor. The installation is very simple, we will guide the installation, the normal laying distance is 12cm.

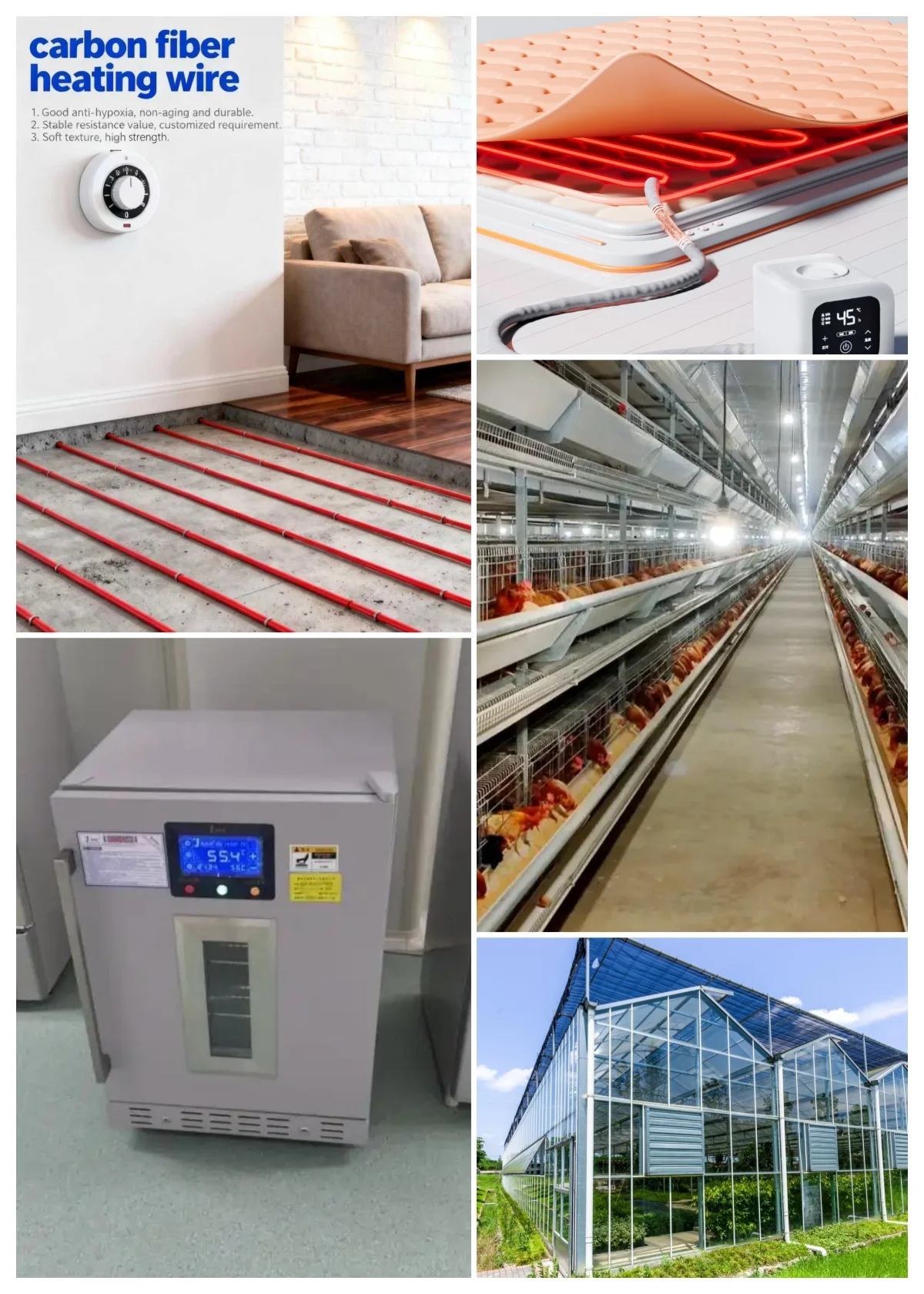

应用
包装 & 送货
客户评价
常问问题
1.问: 我们可以使用自己的转发器吗?
A: 当然. 我们可以将其运送给他们.
A: 当然. 我们可以将其运送给他们.
2. 问: 付款条款是什么?
A: 电汇, 30% 生产前存入和交货前的余额. 我们还可以接受阿里巴巴贸易担保表.
3. 问: 我如何下订单?
A: 请通过电子邮件将您的订单发送给我们，我们将与您确认. 报价之前, 我们想与您确认产品信息, 例如电压, 瓦数, 大小和数量. 如果您有详细的图纸, 不要忘记将它们发送给我们. 无论如何, 请直接通过电子邮件或在线消息与我们联系.
4. 问: 我们如何保证质量?
A: 我们严格遵循质量管理标准; 每次检查研讨会 2 小时; 并拥有自己的研发团队和实验室.
5. 问: 您可以从我们这里购买什么?
A: 电器 (IE. 热加热器, 鳍加热器, 烤箱加热元件, 循环加热器) 和相关产品;
如果还有其他需求, 我们还可以帮助客户购买.
