30W/M Silicone Rubber Constant Power Heating Cable Drain Pipe Defrosting Heater Wire Cable
Silicone Rubber Constant Power Heating Cable is a reliable and durable heating cable providing a constant and uniform heat output suitable for various applications.
คำอธิบาย
30W/M Silicone Rubber Constant Power Heating Cable Drain Pipe Defrosting Heater Wire Cable
รายละเอียดสินค้า
Silicone rubber constant power heating cable is mainly used for antifreeze and heat preservation of pipelines and meters in various places. The maximum temperature is maintained at 150°C. It can be used in explosive gas applications in the first and second zones of the factory.Consisting of alloy electric wire and silicon rubber high-temperature insulation material, it has the characteristics of rapid heat generation, อุณหภูมิสม่ำเสมอ, high thermal efficiency and good toughness.
ข้อมูลจำเพาะ

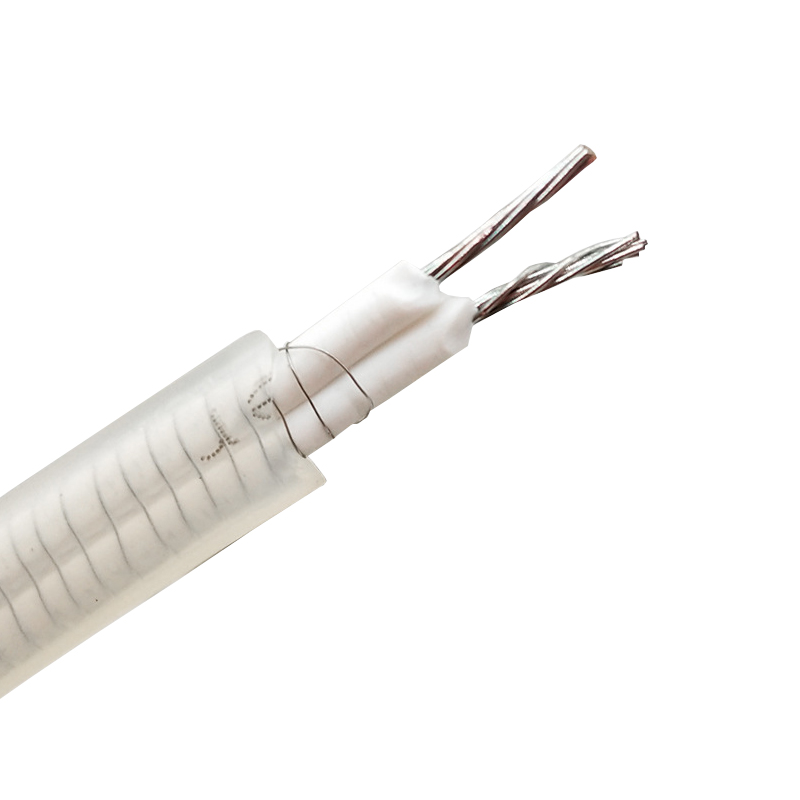

โครงสร้าง
1.Heating wires are two tinned copper wires with section of 0.75m2.
2.Isolated layer is made of silicon rubber by extrusion.
3.High strength alloy wire spiral and silicon rubber surface are the heating center.
4.Airtight cladding made by extrusion method.
ข้อมูลจำเพาะ
The voltage 36V-24V is determined by the user.(1)25W/M, withstand voltage AC3500V, use longest limit 65m.(2)40W/M, withstand voltage AC3500V, use longest limit 50m.(3)50W/M, withstand voltage AC3500V, use longest limit 44m.
Technical index sign
Output Power | 25W/M | 40W/M | 50W/M |
แรงดันไฟฟ้า | 220วี | ||
Lead | 0.75 Square | ||
Wire Insulation Material | Silicon Rubber | ||
Heating Body | Cu-Ni Alloy Wire | Cu-Ni Alloy Wire | NiCr Alloy Wire |
Heating Coil External Insulation | Silicon Rubber | ||
Heating Body | 5mm*7mm | ||
Use Longest Limit | 65M | 50M | 44M |
Distance between Nodes | 0.5M | ||
Immergence Withstand Voltage | AC3500V | Insulation Resistance | ≥200mn |
คุณสมบัติของสินค้า
1. Good temperature resistance, with a working temperature of -60 to ±200℃2. Good heat conductivity and high thermal efficiency3. Reliable electrical property with quality guaranteed4. Flexible, easy to bend and install5. Good designability, with heating length, lead length, rated voltage and power determined by users.
แอปพลิเคชัน
Food & Catering (Chocolate machines – Refrigerating cases + blast chillers)Air conditioning (compressor crankcase heaters);Construction (frost protection and heating for pipes, valves, snowmelt system gutters and ramps – Deicing and floor heating –Heated benches – Defrosting melt snow;Incubators, aquariums, terrariums, greenhouses, germinatoi (heating greenhouses, aquariums and terrariums)Medical (Celle mortuary)Industrial and commercial refrigeration (evaporators defrosting refrigerators for industrial, commercial and domestic – Pore and defrost doors, windows and cold storage – Ice cream machines);
