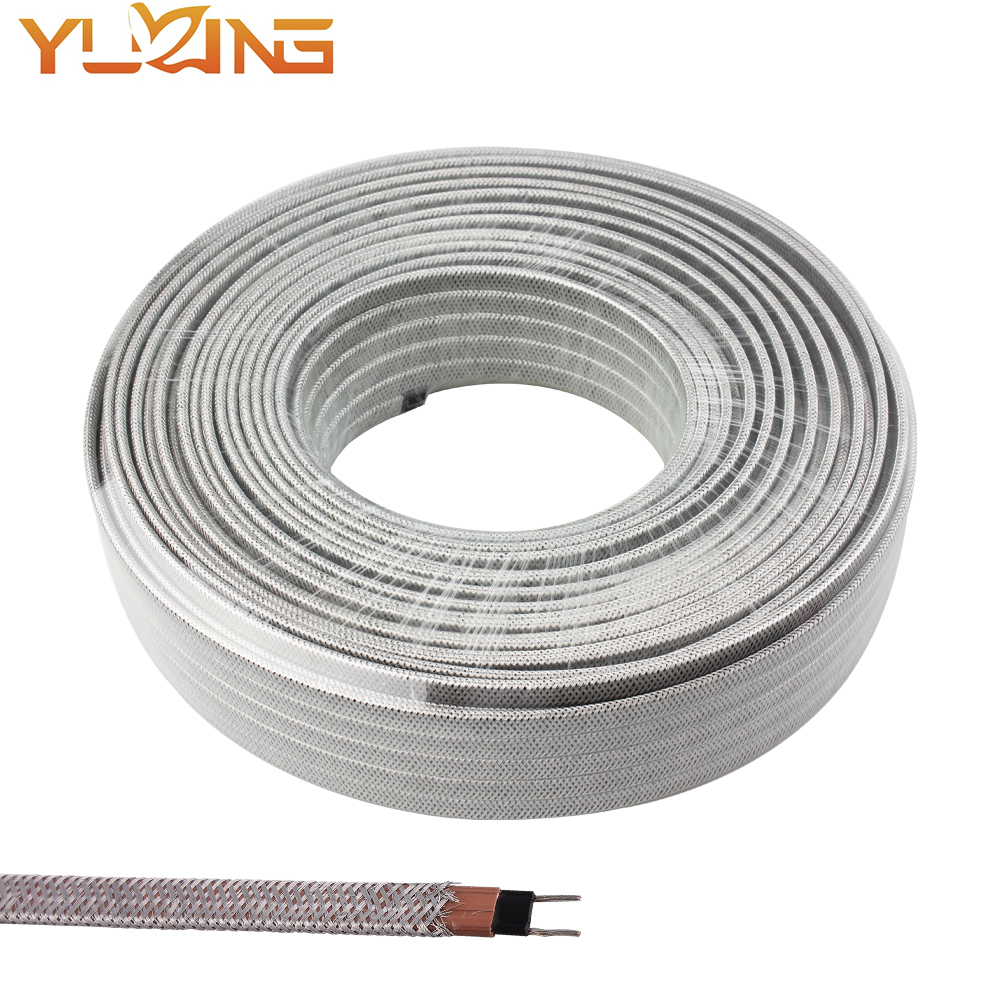

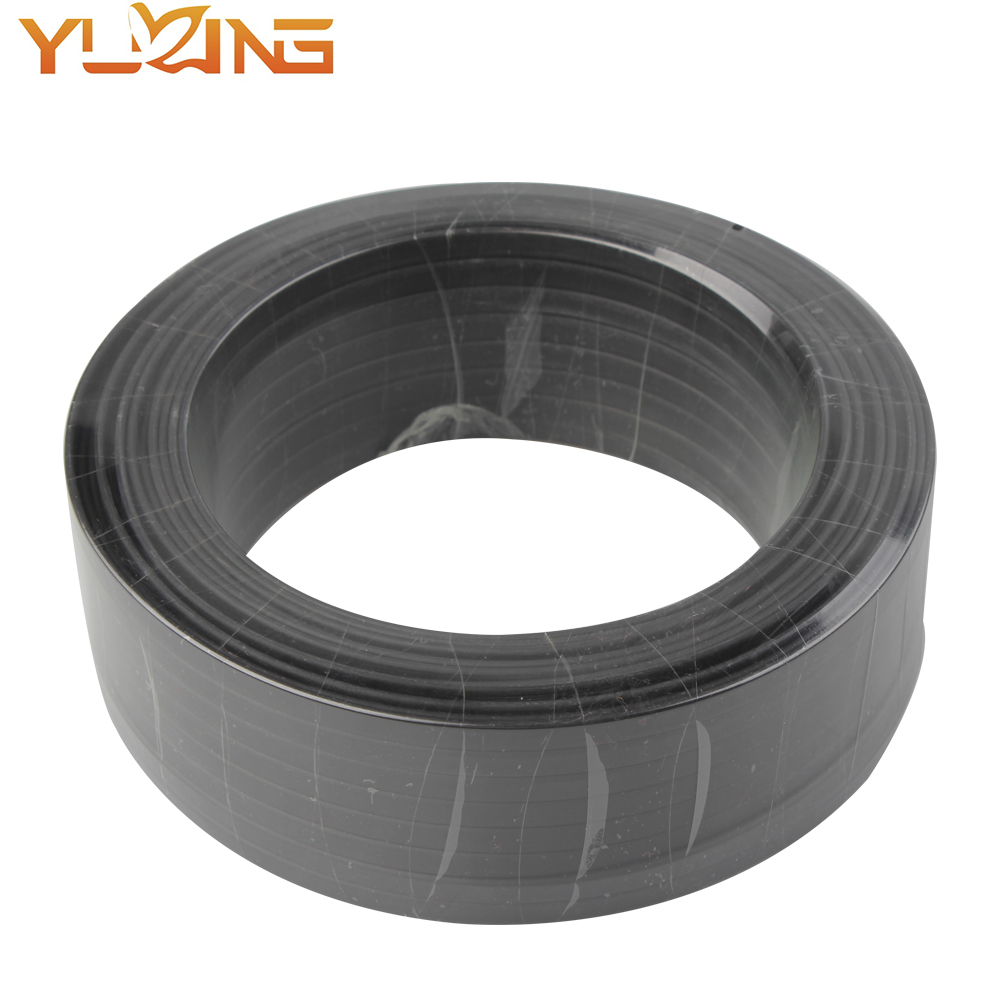

220V Waterproof Heat Pipe Tracing Self Regulating Heating Cable for Roof and Driveways

Self Regulating Heating Cable is an efficient and flexible heating solution using PTC material, suitable for various industrial and commercial applications.

หมวดหมู่: แท็ก:

คำอธิบาย

220V Waterproof Heat Pipe Tracing Self Regulating Heating Cable for Roof and Driveways
รายละเอียดสินค้า
Self Regulating Heating Cable

Self-regulating heating cable is an efficient, safe and reliable heating equipment, which is mainly used in various industrial production and special occasions to heat and maintain the temperature of electronic equipment, pipelines, storage tanks, containers, ฯลฯ.

The product is made of advanced materials, with automatic temperature control, self-regulating temperature, waterproof and explosion-proof characteristics, which can ensure the safety, reliability and stability in the heating process. In addition, the self-regulating heating cable is also easy to install and adjust the temperature, can effectively reduce heating costs, improve heating efficiency, is an economic and practical heating equipment. Self-regulating heating cable is widely used in chemical, electric power, petroleum, pharmaceutical and other industries, and is an important product in today’s market.

Feature
●Energy efficient, self-regulating cable uses less energy when less heat is required.
●Easy to install, can be cut to any length (up to max circuit length) in the field.
●lower installed cost than steam tracing, less maintenance expense and less down time.
●Can be single overlapped without burn- out, which simplifies heat tracing of in-line process equipment such as valves, elbows and pumps.
●Because of self-regulating, overtem- perature conditions are minimized.
●Connection Kits reduce installation time.
ข้อมูลจำเพาะ
Self Regulating Heating Cable
Self Regulating Heating Cable
Self Regulating Heating Cables
ข้อมูลจำเพาะ
Service voltage
12V/24V/36V/110V/220V/380V
สูงสุด. maintain temperature
+65องศาเซลเซียส(149°F) (ชุดอุณหภูมิต่ำ)
สูงสุด. withstand temperature
+105องศาเซลเซียส(221°F) (ชุดอุณหภูมิต่ำ)
นาที. installation temperature
-40องศาเซลเซียส(-40°F)
สูงสุด. W/m T=10°C
10W~40W (ชุดอุณหภูมิต่ำ)
Copper conductor
19/0.30 (ชุดอุณหภูมิต่ำ)
Minimum bend radius
35มม(-30℃),25.4มม(20℃)
Protective braid resistance
less than18.2Ω/km
Jacket material
Flame Retardant Polyolefin / Modified Polyolefin
Thermal stability
After cycling 300 cycles from 10°C to 149°C, the heating value of the tropical heat is maintained above 90%.
พิมพ์
พลัง
(W/M, at 10℃)
Maximum Tolerance Temperature
Maximum Maintain Temperature
Minimum
Installation Temperature
Maximum Usage Length
(based on 220V)
Low Temperature
10W/M
15W/M
25W/M
35W/M
105℃
65℃±5℃
-40℃
100ม
Medium Temperature
35W/M
45W/M
50W/M
60W/M
135℃
105℃±5℃
-40℃
100ม
High Temperature
35W/M
50W/M
60W/M
155℃
135℃±5℃
-30℃
100ม
Self Regulating Heating Cable

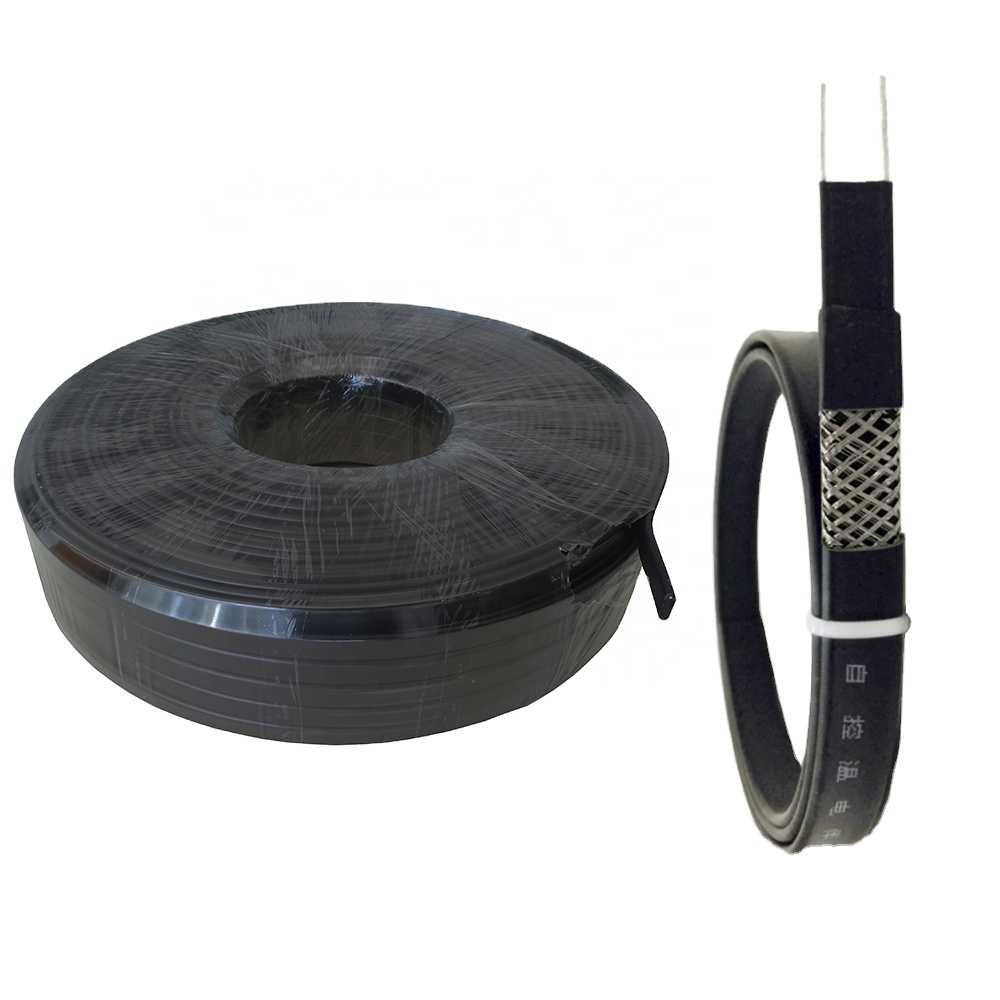

โครงสร้าง

●Bus Wires: Pro- vide reliable electric current capability. 7*0.32มม, 7*0.42มม, 7*0.5มม, 19*0.32มม, 19*0.41mm and etc.

●Conductive Core: “Self-Regulating” component of the cable its electrical resistance varies with temperature. As process temperature drops,the core’s heat output increases; as process temperature rises, the heat output decreases.
●Inner Jacket: Flame retardant, electrically insulates the matrix and buss wires and provides corrosion resistance.
●Metallic Overshield: Provides additional mechanical protection in any environ- ment and a positive ground path.
●Outer Jacket: Corrosion resistant, flame retardant overjacket is highly effective in many environments. Protects against exposure to organic or corrosive solutions. The overjacket also protects against abrasion and impact damage.
แอปพลิเคชัน
Self Regulating Heating Cable
Self Regulating Heating Cable
Self Regulating Heating Cable
Self Regulating Heating Cable
รายละเอียดรูปภาพ
Self Regulating Heating Cable
Self Regulating Heating Cable
220V Waterproof Heat Pipe Tracing Self Regulating Heating Cables for Roof and Driveways
Install
Self Regulating Heating Cable
การบรรจุ & จัดส่ง
Self Regulating Heating Cable
ประวัติบริษัท
ติดต่อทาง
Self Regulating Heating Cable
