R Type Platinum-rhodium Thermocouple 0-1800 Spend Corundum Tube Thermocouple Temperature Sensor B/S/K for Furnace Heating
R Type Platinum-rhodium Thermocouple 0-1800 Spend Corundum Tube Thermocouple Temperature Sensor B/S/K for Furnace Heating
Beskrivning
R Type Platinum-rhodium Thermocouple 0-1800 Spend Corundum Tube Thermocouple Temperature Sensor B/S/K for Furnace Heating
Produktbeskrivning

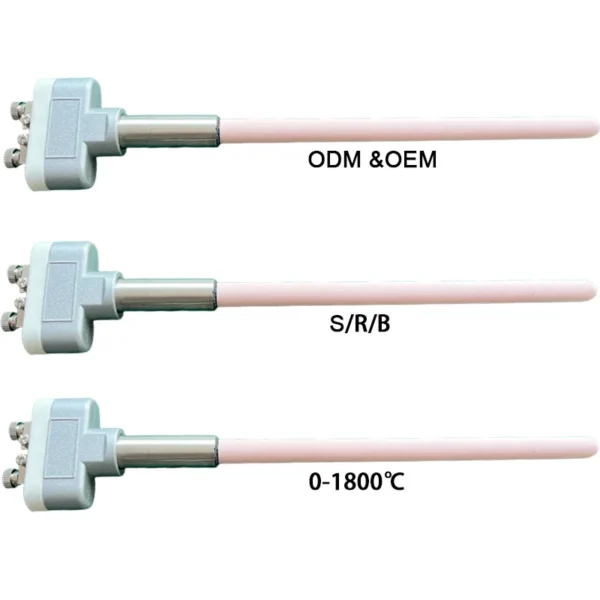

Platinum rhodium thermocouple is made of noble metal,( platium in high purity as cathode,Platium and Rhodium alloy as positive pole), corundum as external tube, which is used to measure as high as 1800C like powder metallurgy, fritting furnace,vacuum furnace, matallurgy furnace and calcination of fire-proof materials, keramik. It is widely used in high temperature production process such as glass, ceramic industry and industrial NaCl bathing stove, etc.
Specifikation
Produktnamn | Platina rodium termoelement |
Typ | S/R/B |
Material | 99% högtemperatur korundrör, Eller GH3039 högtemperatur legeringsrör eller SIC skyddsrör |
Keramiskt rör | OD φ8mm |
Features1. Easy assembly and convenient for replacement2. Spring thermal element with good shock-proof performance3. Wide measuring range4. High mechanical strength, good pressure-resistant performance
ConductorMaterial | Typ | Gradering | Continuous using temperature | Short-term using temperature |
PtRh10-Pt | WRP | S | 0-1300C | 0-1600C |
PtRh30-PtRh6 | WRR | B | 0-1600C | 0-1800C |
PtRh13-Pt | WRQ | R | 0-1300C | 0-1600C |
NiCrSi-NiSi | WRM | N | 0-1000C | 0-1100C |
NiCr-NiSi | WRN | K | 0-900C | 0-1000C |
NiCr-Konstantan | WRE | E | 0-600C | 0-700C |
Fe-Konstantan | WRF | J | 0-500C | 0-600C |
Cu-Konstantan | WRC | T | 0-350C | 0-400C |
Förpackning & Leverans
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
