Industriell M6 M8 Skruv Termoelement K Typ Temperaturområde 0-800C Sensorsond

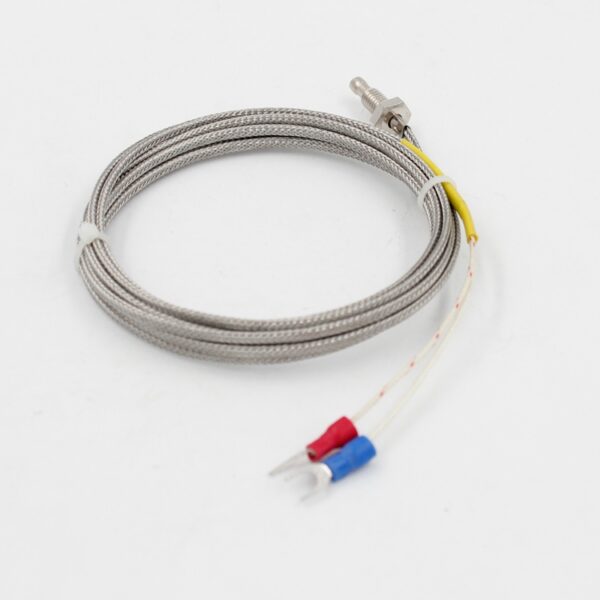

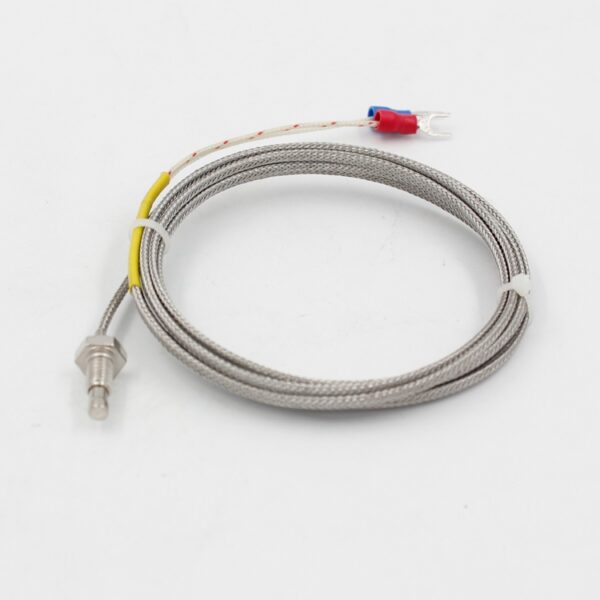

Screw Thermocouple: Temperature sensor that uses a threaded probe, ideal for measuring surface temperature of plastics, rubber and similar materials.
Beskrivning
Industriell M6 M8 Skruv Termoelement K Typ Temperaturområde 0-800C Sensorsond
Produktbeskrivning
Screw thermocouple is suitable for measuring the surface temperature of turbine and motor bearing or other body in power plant. The end thermocouple is suitable for measuring the surface temperature of turbine, motor bearing or other body in power plant. Widely used in packaging food, pharmaceutical, plastic machinery, sudd, oven, etc., high quality, can completely replace the import of similar products. The outer layer of the shield wire is tightly woven and flexible.
Specifikation
Type K (chromel – alumel) is the most common general purpose thermocouple with a sensitivity.Specifications: High quality.Model: K – Type Screw type thermocoupleScrew head specification: M6 (default M6, if M8 or other, please contact the seller). Tail length: 1000mm -10000mm (kan anpassas)Temperature Range: 0-800.Thread Diameter: 6mm / 0.23.Internal Insulation: Fiberglass.External Shielding: Metal Shield.Indexing number: K, E, etc. (kan anpassas) Indexeringsnummer: K, E, Pt100…… The linear thermocouple K type use temperature is generally not more than 600 grader; E-type use temperature generally not more than 400 grader; Pt100 thermal resistance temperature -200+450 grader, if you have special requirements, please contact the seller.
Cable Material | Shielded wire, Fiberglass, PTFE, Kisel |
Thread Size | M5/M6/M8 |
K | 0-800°C |
J | 0-600°C |
E | 0-400°C |
PT100 | -200-500°C |
Thread Size | M6*1/M6*1.25 |
