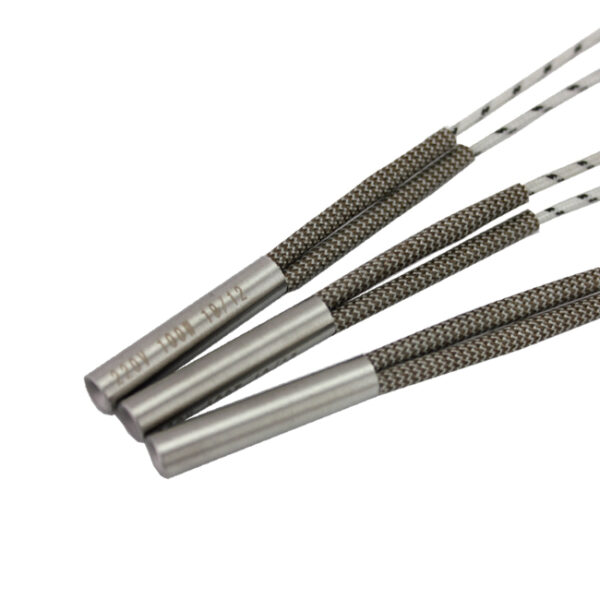

Original 250W Electric Heating Rod Cartridge Heater For Mould Heating

Rod Cartridge Heater is a type of electric heating element consisting of a cylindrical rod shape for high-temperature applications.

Kategori: Märka:

Beskrivning

Original 250W Electric Heating Rod Cartridge Heater For Mould Heating

Produktbeskrivning

Rod Cartridge Heater

A cartridge heater is a tube-shaped, industrial heating element that can be inserted into drilled holes. Cartridge heaters provide localized and precise heating and are commonly used in the heating process industry.

Typically, cartridge heaters are used to heat a metal block from the inside and can be custom manufactured to a specific watt density based on the requirements of the application.Cartridge heaters are most frequently used for heating metal parts by insertion into drilled holes. For easy installation, the heaters are made slightly undersize relative to their nominal diameter.

Cartridge Heater Product Features

1. Simple structure, high heating power2. Easy and economical installation

3. Designed and manufactured with good materials 4. Uniform temperature 5. Accurate dimensions, maximum heat transfer 6. Easy maintenance and replacement 7. CE & RoHS approved
Rod Cartridge Heater
Electric Cartridge Heater Customization Options
1. Built-in thermocouple 2. Spänning (phase ) & kraft & watt density3. Non-heating part length4. Rörets diameter & length5. Sheath material6. Lead/ lead protection7. Seal material 8. Installation – flange/ locating ring/ screw9. Finned 10. Inner structure – e.g. custom distributed wattage
Rod Cartridge Heater
Specifikation:
Outer Sheath Material
Rostfritt stål 304, 321, 316; Incoloy 800; Incoloy 840
Motståndsvärmetråd
Nichrome 8020 motståndstråd
Wattage Tolerance
+5%, -10%
Motståndstolerans
+10%, -5%
Voltage Available
12 to 600 volts customied
Maxium Heating Temperature
800 Degree Celsius
Längdtolerans
±1mm
Diametertolerans
±0.02mm
Standard Cold Size
5-10mm
Isoleringsresistans (cold)
≥ 500 MΩ
Maxium Leakage Current (cold)
≤0.5 mA
Lead Orientation
A) Crimped on Leads : PTFE/Fiberglass Flexible lead crimped on solid pin emerging from the Heater.B) Swaged in Leads : Flexible Fiber Glass or PTFE leads emerging from within the heater

Rod Cartridge Heater

Rod Cartridge Heater
Electric Heating Rod Cartridge Heater
Ansökan:
Cartridge heaters are most frequently used for heating dies, platens, molds, and other metal parts by insertion into drilled holes. They can also be used in liquid immersion applications. Below are some examples of specific applications: * Heating gases and liquids * Hot runner molds * Hot stamping * Laminating presses * Medical equipment * Semi-conductor * Plastic molding * Scientific equipment
Rod Cartridge Heater
Kundutvärdering
Rod Cartridge Heater
Rod Cartridge Heater
FAQ

1. vilka är vi?1.vi har bedrivit utrikeshandel sedan dess 2010;

2.sälja till den inhemska marknaden(50.00%),Nordamerika(30.00%),Sydöstra Asien(10.00%),Västeuropa(10.00%);

3. We have 500m2 of office and 2500m2 of workshop.

2. hur kan vi garantera kvalitet?1.Vi producerar i strikt överensstämmelse med kvalitetsledningsstandarden;
2.Vi inspekterar verkstaden en gång varje 2 timmar;3.Bekräfta provdetaljerna med kunden för varje beställning.
3.vad kan du köpa av oss?1.Elektrisk apparat (Snabbvärmare,Finnsvärmare,Ugnens värmeelement,Cirkulationsvärmare);
2. Relaterade produkter;

3. om det finns andra behov, vi kan också hjälpa kunder att köpa.4. varför ska du köpa från oss inte från andra leverantörer?1.Mer än 40 år’ industriell erfarenhet av värmeelement;2.UL(E501501)/CE/RoHS/CQC ISO9001:2008;3.R&D-team och laboratorium;

4.Integrering av industri och handel är mycket fördelaktigt för kundupphandling;
5.Produkter inom garantiperioden kommer att ersättas kostnadsfritt.Rod Cartridge Heater
