OEM PVC/Silicone/FEP/Stainless Steel/Fiberglass Insulation K /J/E/T/N Type Thermocouple Wire Compensation Cable Extension Wire
OEM PVC/Silicone/FEP/Stainless Steel/Fiberglass Insulation K /J/E/T/N Type Thermocouple Wire Compensation Cable Extension Wire
Beskrivning
OEM PVC/Silicone/FEP/Stainless Steel/Fiberglass Insulation K /J/E/T/N Type Thermocouple Wire Compensation Cable Extension Wire
Produktbeskrivning

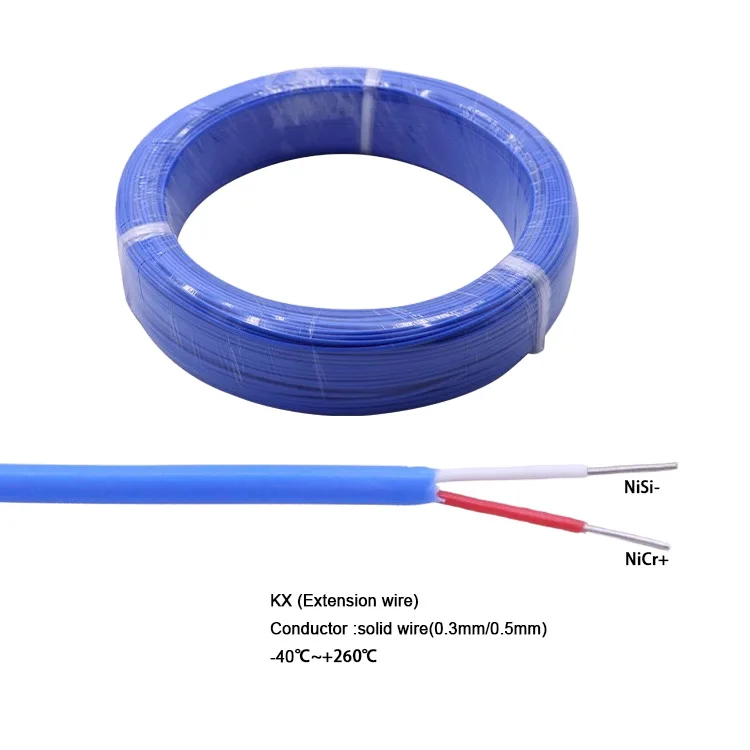

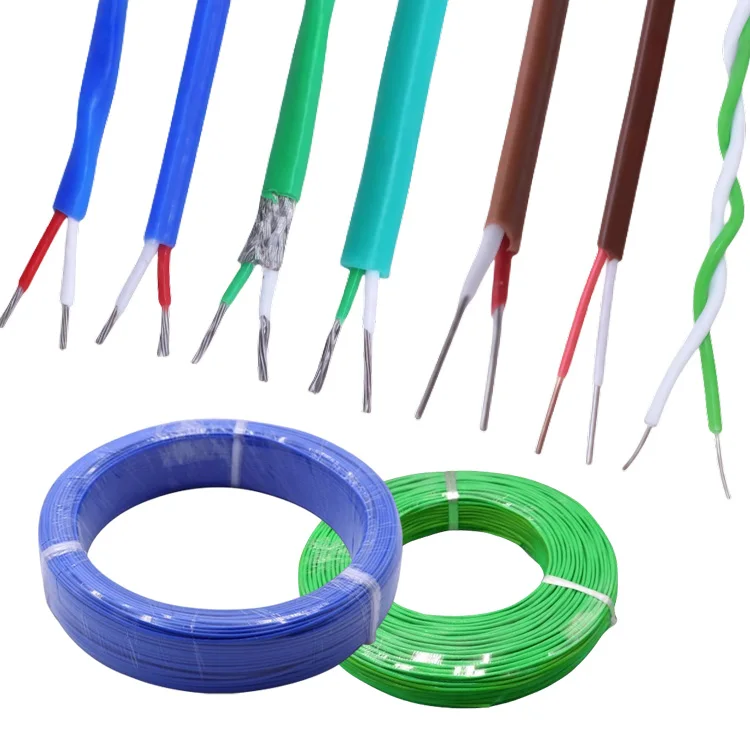

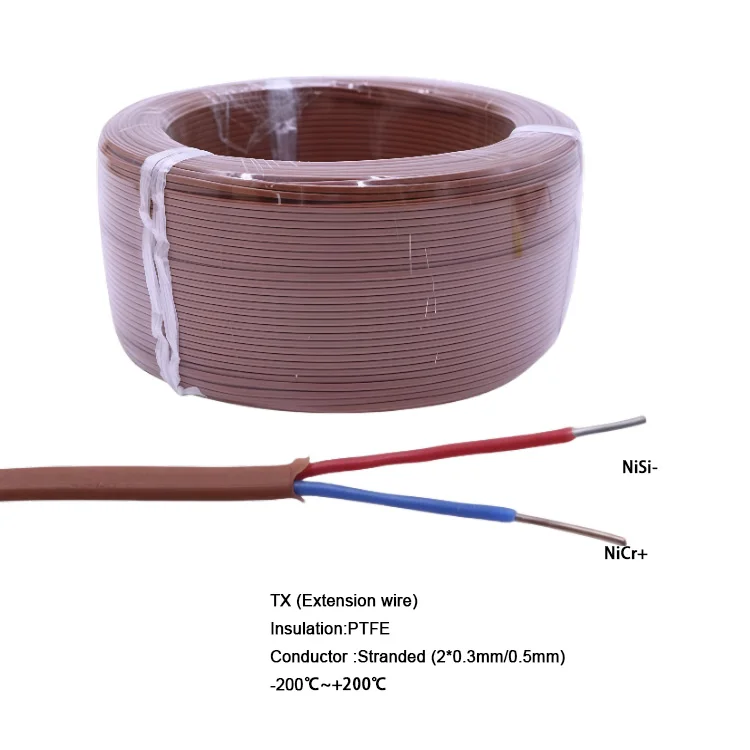

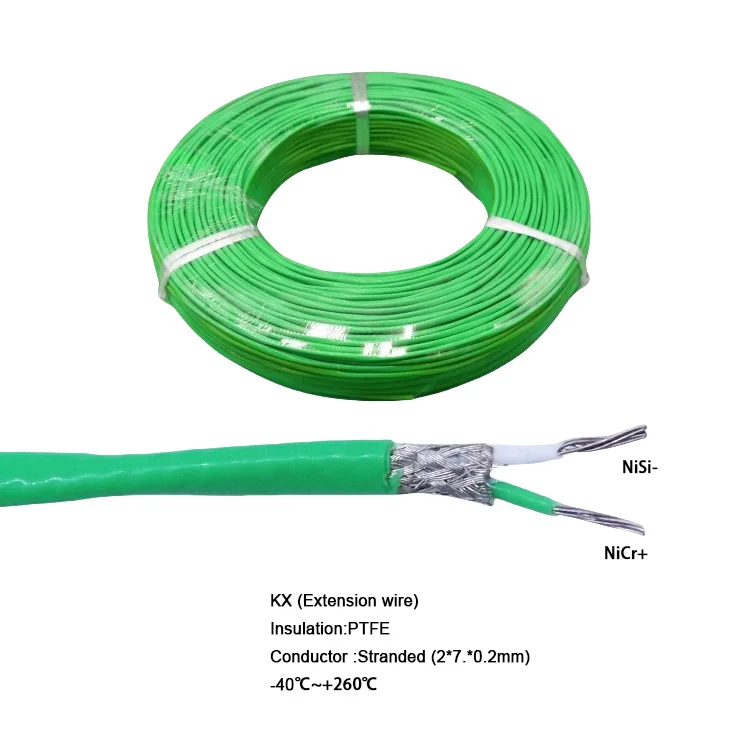

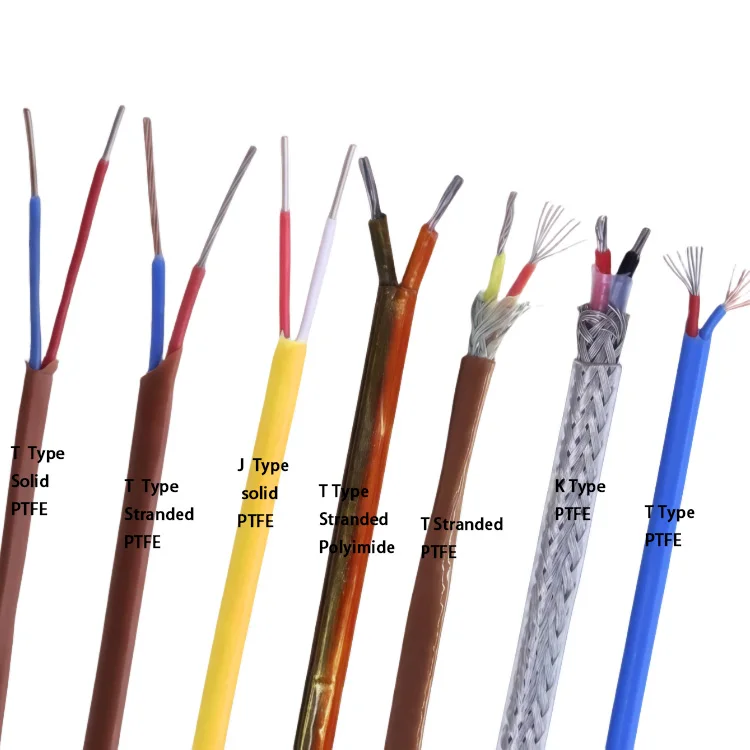

Thermocouple Wire is a cable made from two dissimilar metals which called postive leg and negative leg for the purpose of measuring temperature. This wire is used in thermocouple sensors and very important devices used to measure temperatures in various environments. Thermocouple grade wire is used in the It’s crucial for engineers to understand the characteristics and differences between the two types of wires. Normally it has different type like type K, Type J, Type T, Type E, Type L, Type N,Type R. It also has Thermocouple Extension Wire and Thermocouple Compensation Wire.
Specifikation
Specifications | |
Produktnamn | K type thermocouple wire |
Storlek | 2×0.2mm², 2×0.5mm²，2x1mm²，2×1.5mm² and etc… |
Conductor | Cu-CuNi/ NiCr-NiSi |
Isolering | Fiberglass/PVC/FEP/SILICONE |
Shielding | stainless steel shielded，or copper shielded |
Operating temperature | -200°C-800°C |
Förpackning | 100m/roll |
K | 0-900℃ |
J | 0-600℃ |
E | 0-400℃ |
Pt100 | -200-500℃ |
Applications* Metallurgy* Chemical industry, petroleum* Power generation* Defense and scientific research* Cables for connection between thermocouples and temperature display instrument.Features1) Continuous use up to 200℃2) Short term use up to 250℃3) Excellent heat, kemisk, abrasion and moisture resistance4) Provides accurate temperature measure with high temperature stability5) Calibration test report is available
Material | PTFE | PFA | PVC | Glasfiber | Kisel | Capt | Kvartsfiber |
Max temp(°c) | 260 | 260 | 108 | 400 | 200 | 400 | 800 |
Förpackning & Leverans
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
