1150c Glow-Wire U Shape Flexible K Type Thermocouple INCONEL600 Bendable Sheath Superalloy Temperature Sensor Probe WRNK-191
1150c Glow-Wire U Shape Flexible K Type Thermocouple INCONEL600 Bendable Sheath Superalloy Temperature Sensor Probe WRNK-191
Beskrivning
1150c Glow-Wire U Shape Flexible K Type Thermocouple INCONEL600 Bendable Sheath Superalloy Temperature Sensor Probe WRNK-191
Produktbeskrivning
1150c Glow-Wire U Shape Flexible K Type Thermocouple INCONEL600 Bendable Sheath Superalloy Temperature Sensor Probe WRNK-191
A Type K thermocouple refers to any temperature sensor containing Chromel and Alumel conductors, that meets the output requirements as stated in ANSI/ASTM E230 or IEC 60584 for Type K thermocouples. This may be an immersion sensor, a surface sensor, wire or another style of sensor or cable.

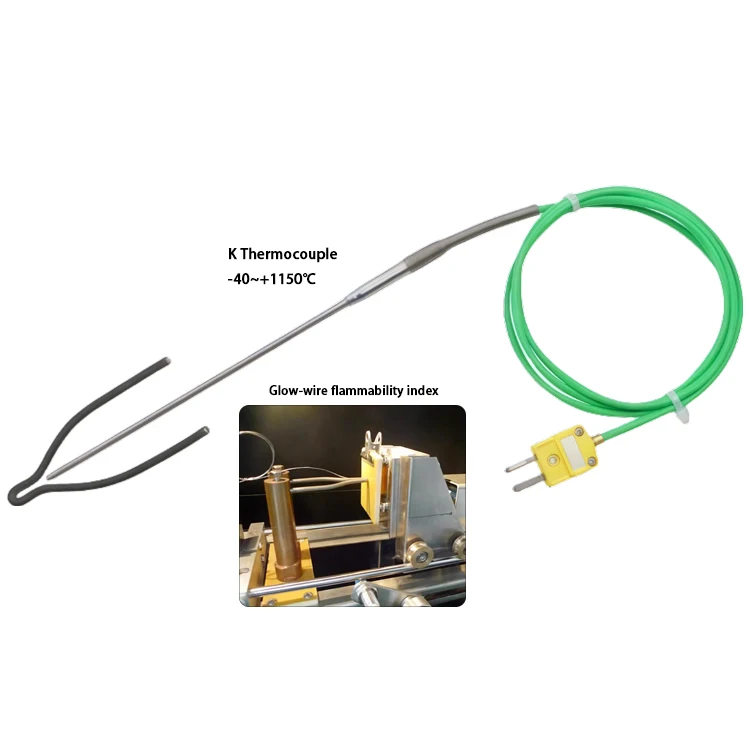

U-shaped head with armor, can be used to calibrate the temperature of the glow wire test machine
Imported nickel-chromium alloy

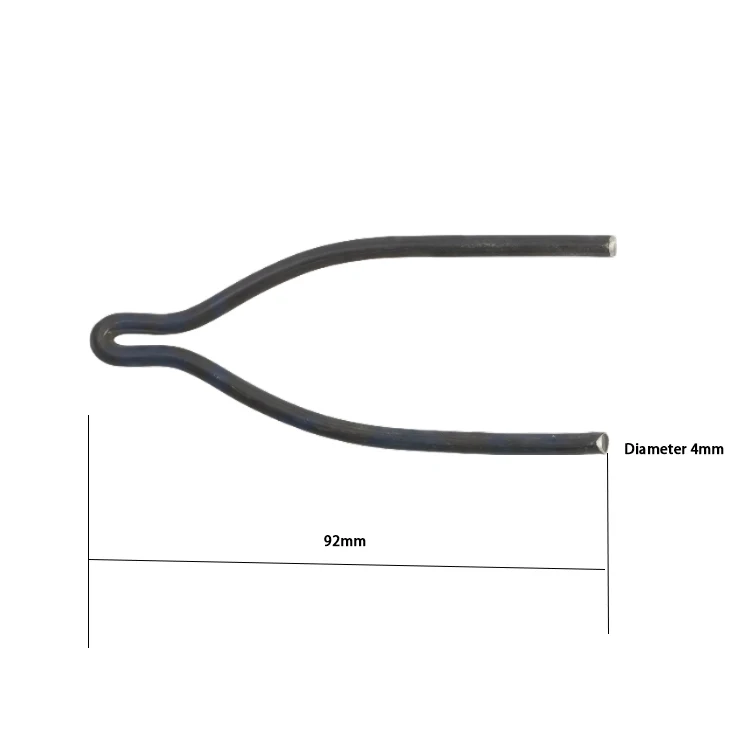

Imported Ni/Cr (80/20) alloy, 4mm diameter special standard ring, accurate temperature measurement
Specifikation
ConductorMaterial | Typ | Gradering | Continuous using temperature | Short-term using temperature |
PtRh10-Pt | WRP | S | 0-1300C | 0-1600C |
PtRh30-PtRh6 | WRR | B | 0-1600C | 0-1800C |
PtRh13-Pt | WRQ | R | 0-1300C | 0-1600C |
NiCrSi-NiSi | WRM | N | 0-1000C | 0-1100C |
NiCr-NiSi | WRN | K | 0-900C | 0-1000C |
NiCr-Konstantan | WRE | E | 0-600C | 0-700C |
Fe-Konstantan | WRF | J | 0-500C | 0-600C |
Cu-Konstantan | WRC | T | 0-350C | 0-400C |
MI Flexible Probe
* Inconel 600 alloy probe (1300 grad)
* Customized length
PTFE K Thermocouple wire
*water proof
*Anti-interference
