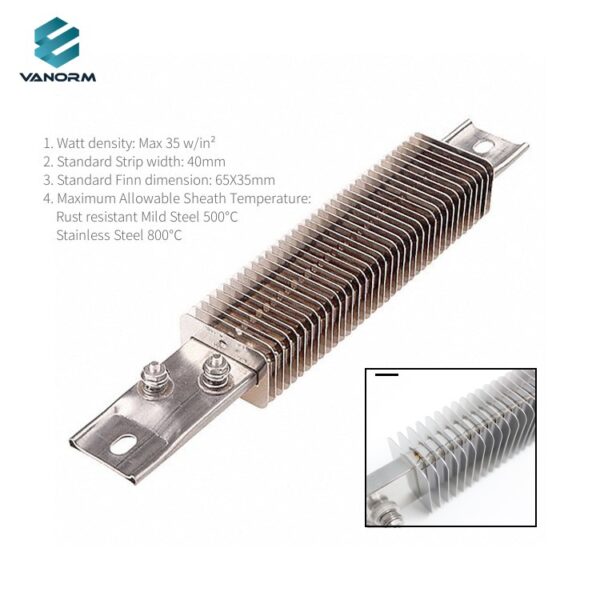

220V 750W Electric Air Finned Strip Heater Channel Strip Heater

Finned strip heaters are extremely efficient and dependable as a heat source for hundreds of industrial and commercial applications. They are used for both forced (mounted in a duct) and natural convection air heating (mounted at the bottom of cabinet type ovens). The finned strip heater’s basic design consists of a helically wound resistance coil placed in a specially designed ceramic insulator. The resistance coil is mechanically connected to the screw terminal for positive connection. Stainless steel rectangular tubing is used to house the heater assembly. All remaining voids are filled with high purity magnesium oxide to increase thermal conductivity and dielectric strength. Nickel-plated steel fins (stainless steel optional) are mounted to the rectangular tubing. The fins have been specially designed to provide maximum surface contact for good heat dissipation into the finned cross sections, thus resulting in rapid heat transfer to the air. Finned strip heaters are manufactured in a full line of standard sizes, electrical ratings and terminations, or can be made to your specifications.

1. Seamless stainless steel sheath.2. Post terminals.3. Ceramic element support.4. Element wire situated in close proximity to outside surface for maximum heat transfer and minimum internal temperature while preserving good dielectric qualities.5. Magnesium oxide packing.6. Aluminum fins offering maximum radiating surface and providing for rapid heat transfer to the surrounding medium. Stainless steel fins are available for corrosive environments. Aluminum fins are standard.

1. Drawings,if have 2. Kraft,Spänning,Form 3. Arbetstemperatur 4. Material requirement 5. Screw size,if have 6. QuantityOur factory also support customize. Write to the follow Email to get more details about the finned heating elements: [email protected]

1. Dies and mold heating
2. Autoclaves
3. Thermoforming
4. Resistive Load Banks
5. Food warming
6. Freeze and moisture protection
7. Tank and platen heating
8. Packaging
9. Ovens

1.Vertikal tillverkningsexpertis:Fabriken som vi samarbetade med driver professionella produktionsanläggningar, de har full kontroll över forskning och utveckling. Denna vertikala integration säkerställer strikt kvalitetsefterlevnad (ISO 9001, CE,CQC,Rohs, UL) och möjliggör konkurrenskraftiga priser utan mellanhänder.
2.Dubbelkanalsupphandlingslösningar:Direkt OEM-tjänster, Anpassa värmesystem och linjära spaltspridare för att möta projektspecifika luftflödes- och termiska krav.
3.Direkt OEM-tjänster: Anpassa värmesystem och linjära spaltspridare för att möta projektspecifika luftflödes- och termiska krav.
4.Teknisk partnerskapsmodell:Bortom transaktionella engagemang, vi tillhandahåller design av ventilationssystem och energieffektivitetsrevisioner för värmelösningar,flerspråkig teknisk support efter försäljning.
5.Innovation och hållbarhet:Investera 8% av årliga intäkter i R&D att vara engagerad i att skapa bättre nya produkter.

Our products had passed the CE CQC UL and Rohs certificated.

1.Our services include individual unit packaging with optional labeling to streamline operations and reduce time costs.
2.We provided fumigated solid wood pallets for heavy-duty exports and durable plywood crates for lighter loads, exempt from fumigation.
3.All solutions adhere to international trade standards, including certification for shipments to the US, Kanada, and the EU, ensuring seamless customs clearance and pest control compliance.

1. Q:Vilka är vi?
