150c Self-regulating Heat Trace Cable UFO Large Pipeline Antifreeze Steam Purge Parallel Circuit Electric Heating Cable
150c Self-regulating Heat Trace Cable UFO Large Pipeline Antifreeze Steam Purge Parallel Circuit Electric Heating Cable
Beskrivning
150c Self-regulating Heat Trace Cable UFO Large Pipeline Antifreeze Steam Purge Parallel Circuit Electric Heating Cable
Produktbeskrivning
Self Regulating Heating Cable Anti Freezing Pipe Heating Cable Roof De-cing Gutter Snow Melting Heat Trace
Self regulating cables have an adaptable heat output and consist of two parallel bus wires embedded in a networked plastic heat element with surrounding carbon particles. If the temperature increases during operation, the plastic will expand and the distance between the carbon particles increases, resistance increases and output drops. When ambient temperature falls, this process is reversed and heat output increases – this is the principle of self regulation.
Self regulating cables intelligently adjust heat output according to ambient or air temperature – whenever the heat loss of the insulated pipe, tank or heated process increases (as ambient temperature drops), the heat output of the cable increases. Omvänt, when the heat loss decreases (as the ambient temperature rises or product flows), the heating cable reacts by reducingits heat output.

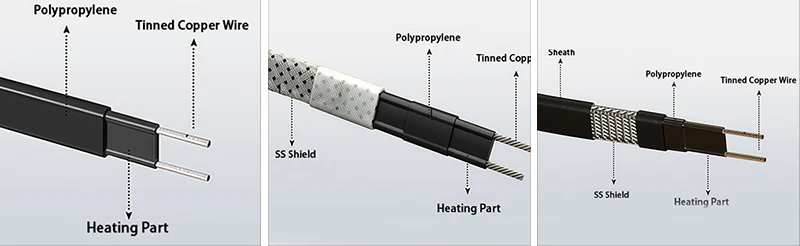

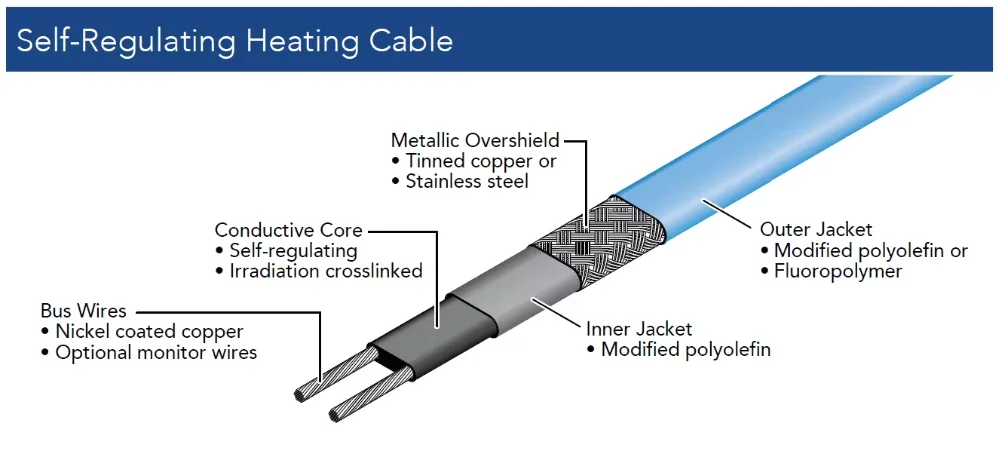

Structure1 copper core wire: 7 × 0.23; 7 × 0.3; 7 × 0.42;2 conductive plastic layer: ordinary PTC; flame retardant PTC; fluorine-containing PTC;3 insulating layer: modified polyolefin; flame retardant polyolefin; fluorine-containing polyolefin; perfluorinated material;4 Shield: tinned soft round copper wire (covering density 80%);5 sheath layer: modified polyolefin; flame retardant polyolefin; fluorine-containing polyolefin; perfluorinated material;
Specifikation
1. Standard color: black, gray low temperature electric heating2. Temperaturvariation: the highest maintenance temperature of 65 ° C, the highest surface temperature of 70 ° C ± 5 ° C maximum temperature: modified polyolefin 105 ° C, flame retardant polyolefin 135 ° C fluorine-containing polyolefin 180 ° C,perfluorinated material 205 ° C.3. Construction temperature: Minimum: -60 °C4. Thermal stability: after cycling back and forth between 10 ° C and 99 ° C 300 times, the heat of the tropical heat ismaintained above 90%5. Bending radius: 25.4mm at 20°C at room temperature; 35.0mm at 30°C at low temperature6. Isoleringsresistans: When the cable length is 100m and the ambient temperature is 75°C, shake it with 2,500VDC for 1 minute. The minimum value of insulation resistance (between conduction and shielding) is 1200MΩ. Working voltage: 12V 24V 36V 110V 220V 380V 10°C output power: 1OW/m 15W/m 20W/m 25W/m7. Explosion-proof mark: ExeIIT4

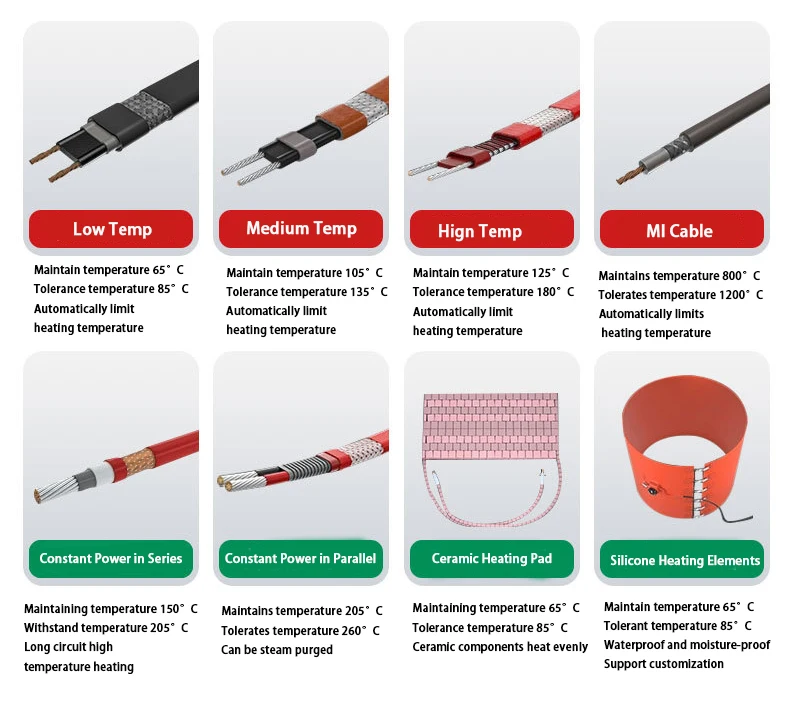

Typ | Kraft(W/M 10℃) | Max maintain temp(℃) | Max.exposure temp(℃) | Min. installation temp(℃) | Max. length of single power supply |
Low temperature series | 10,15,25,35 | 65℃±5℃ | 105℃ | -60℃ | 7*0.5 100meters;19*0.32 120meters. |
Medium temperature series | 35,45,50,60 | 105 ℃ ± 5 ℃ | 135℃ | -40℃ | 7*0.5 100meters;19*0.32 120meters |
High temperature series | 35,50,60 | 135 ℃ ± 5 ℃ | 155℃ | -30℃ | 7*0.5 100meters;19*0.32 120meters |
Ansökan
Heating of buildings, pipelines, cold-storages, doors and warehouse floors, chute heating, gutter and roof defrosting, etc.
Förpackning & Leverans
Plastpåse & Kartong
företagsprofil
FAQ
1. vilka är vi?Vi är baserade i Jiangsu, Kina, börja från 2010, sälj till Oceanien(50.00%),Nordamerika(30.00%),Sydamerika(10.00%),Södra Europa(10.00%). Det finns totalt ca 11-50 personer på vårt kontor.2. hur kan vi garantera kvalitet?Alltid ett förproduktionsprov innan massproduktion;Alltid slutbesiktning före leverans;3.vad kan du köpa av oss?Patronvärmare/Ingjuten värmare/Cirkulationsvärmare/Motorblockvärmare/Open Coil Heater, Finnsvärmare/Stripvärmare/värmeelement4. varför ska du köpa från oss inte från andra leverantörer?1.Mer än 40 års erfarenhet
2.UL CE RoHS CQC ISO9001:2008
3.R&D-laget
4.Tillhandahålla testrapport
5.Stöd produktdesign5. vilka tjänster kan vi tillhandahålla?Godkända leveransvillkor: FOB,CFR,CIF,EXW,DDU,Expressleverans；Godkänd betalningsvaluta:USD,EUR,CNY;Godkänd betalningstyp: T/T,L/C,D/P D/A,Penga gram,Kreditkort,PayPal,Western Union,Kontanter,Escrow;Språk som talas:engelsk,kinesiska,franska
2.UL CE RoHS CQC ISO9001:2008
3.R&D-laget
4.Tillhandahålla testrapport
5.Stöd produktdesign5. vilka tjänster kan vi tillhandahålla?Godkända leveransvillkor: FOB,CFR,CIF,EXW,DDU,Expressleverans；Godkänd betalningsvaluta:USD,EUR,CNY;Godkänd betalningstyp: T/T,L/C,D/P D/A,Penga gram,Kreditkort,PayPal,Western Union,Kontanter,Escrow;Språk som talas:engelsk,kinesiska,franska
