0.711mm Glassfiber Insulated Thermocouple Wire Yellow Red Type K Extension Cable 600C High Temp PWHT Accessories Cable

0.711mm Glassfiber Insulated Thermocouple Wire Yellow Red Type K Extension Cable 600C High Temp PWHT Accessories Cable

Kategori:

Beskrivning

0.711mm Glassfiber Insulated Thermocouple Wire Yellow Red Type K Extension Cable 600C High Temp PWHT Accessories Cable
Produktbeskrivning
Glassfiber Insulated Thermocouple
Glassfiber Insulated Thermocouple

Type K thermocouple wire, insulated with high temperature glass braid, is used to convert the thermal energy at the hot junctionof thermocouple to an electrical mV signal which can then be used by temperature control and recording instruments to accuratelyrecord and control the temperature of the item being heat treated. – Type K – Grade A, Accuracy +/- 1.1°C- Two core conductors insulated by glass-fiber twised together- Material : 1/0.71mm NiCr & 1/0.71mm NiSi, 1/0.65mm NiCr & 1/0.65mm NiSi,1/0.51mm NiCr & 1/0.51mm NiSi and 0.8mm wire.

– Max Working Temperature : 800°C- Conforms to Standard : GB/T 2614-2010, BSEN 60584-2, ASTM E230-1993, ANSI MC96.1-1982, IEC 584-2:1982- Jacket Colour : Red (-) / Yellow (+), or Green(-) / White (+)Förpackning: come in 100m/roll Application: 1. Heating – Gas burners for ovens2. Cooling – Freezers3. Engine protection – Temperatures and surface temperatures4. High temperature control – Iron casting

Specifikation
Item Name
Type K Thermocouple Cable
Conductor Material
+Chromel -Alumel
Conductor Dia
2*0.71mm(±0.02mm)
Insulated material and Thickness
High Temperature Fiberglass (600℃,Max 700℃) 0.25mm
Insulated Diameter
1.2mm(±0.1mm)
Insulated Color
ANSI(+Yellow -Red )
Finished Cable Diameter
1.4mm*2.85mm (±0.2mm)
Package
100m/ roll
Accuracy
Class I (T *0.4%)
Material
PTFE
PFA
PVC
Glasfiber
Kisel
Capt
Kvartsfiber
Max temp(°c)
260
260
108
400
200
400
800

Applications* Metallurgy* Chemical industry, petroleum* Power generation* Defense and scientific research* Cables for connection between thermocouples and temperature display instrument.Features1) Continuous use up to 200℃2) Short term use up to 250℃3) Excellent heat, kemisk, abrasion and moisture resistance4) Provides accurate temperature measure with high temperature stability5) Calibration test report is available

Safety * No personal protective equipment required when used under normal operating conditions.
* Product represents no health risk when used under normal operating conditions
* In case of smoke inhalation during combustion remove casualty to fresh air and seek medical attention.
* In case of ingestion seek medical attention * Good industrial hygiene practices should be followed.
* If skin irritation occurs area should be flushed with cold water
* If glass dust is produced due to rough handling it should be washed off immediately. In case of contact with eyes flush well with plentiful amounts of clean water and seek medical attention
Glassfiber Insulated Thermocouple
Förpackning & Leverans
Glassfiber Insulated Thermocouple
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
företagsprofil
Glassfiber Insulated Thermocouple

Recensioner

Det finns inga recensioner ännu.

Bli den första att recensera “0.711mm Glassfiber Insulated Thermocouple Wire Yellow Red Type K Extension Cable 600C High Temp PWHT Accessories Cable”

Din e-postadress kommer inte att publiceras. behövliga fält är markerade *

Relaterade produkter

  • 304 316 Finned Tubular Heater Air Dry Heating Pipe 220V for Load Bank Oven Dryer Heating Element Parts Straight Type

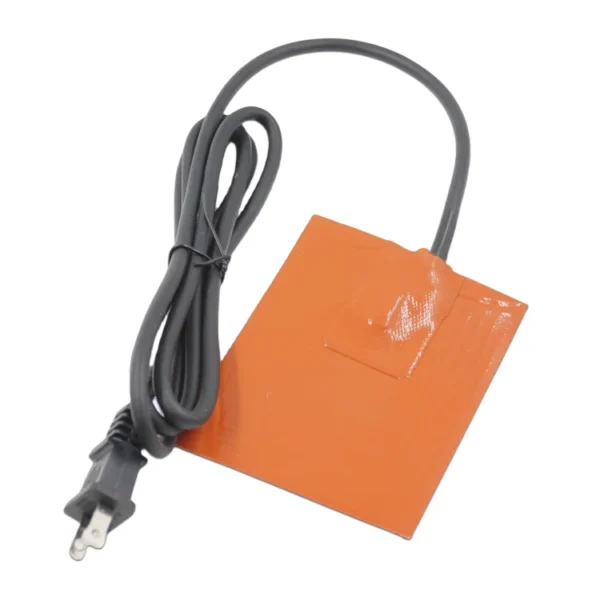

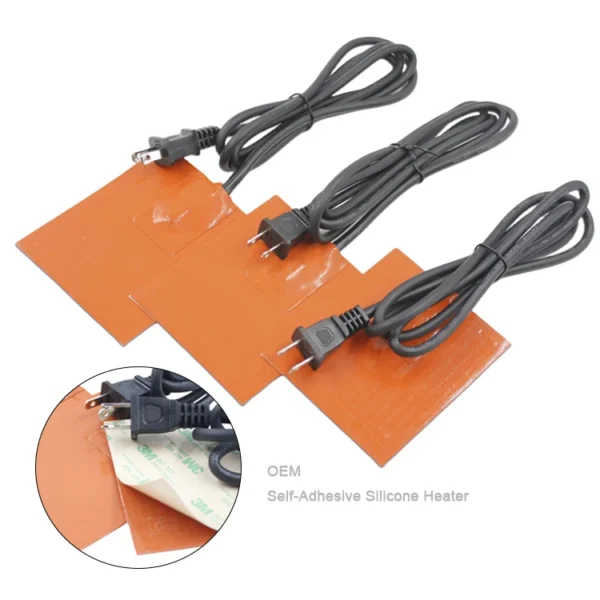

  • Silicone Car Heating Pad Engine Oil Heater Pad Self-Adhesive Oil Pan Engine Block Heating Element with Thermal Protector
