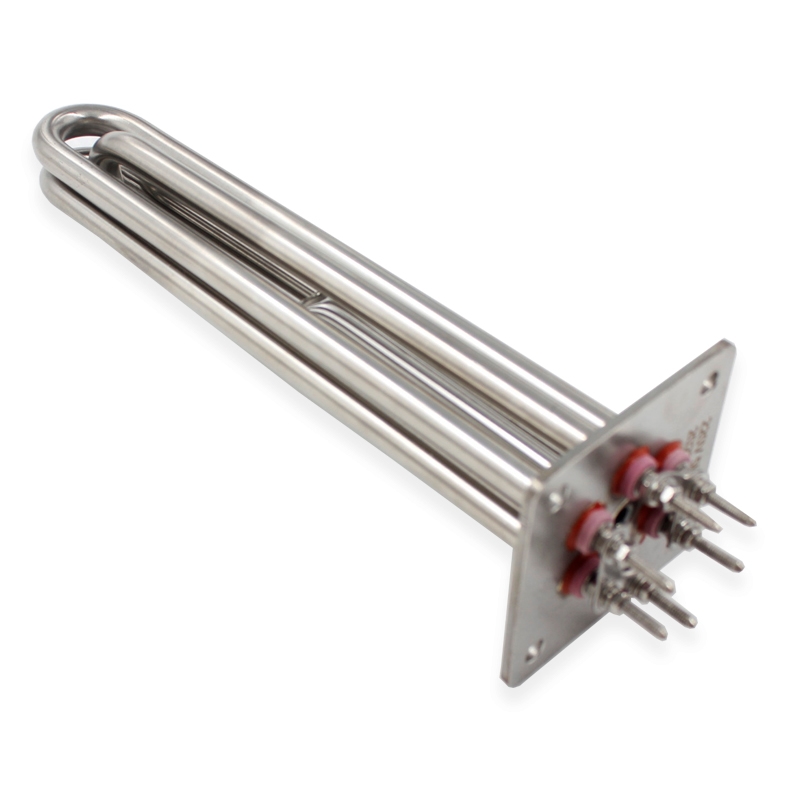

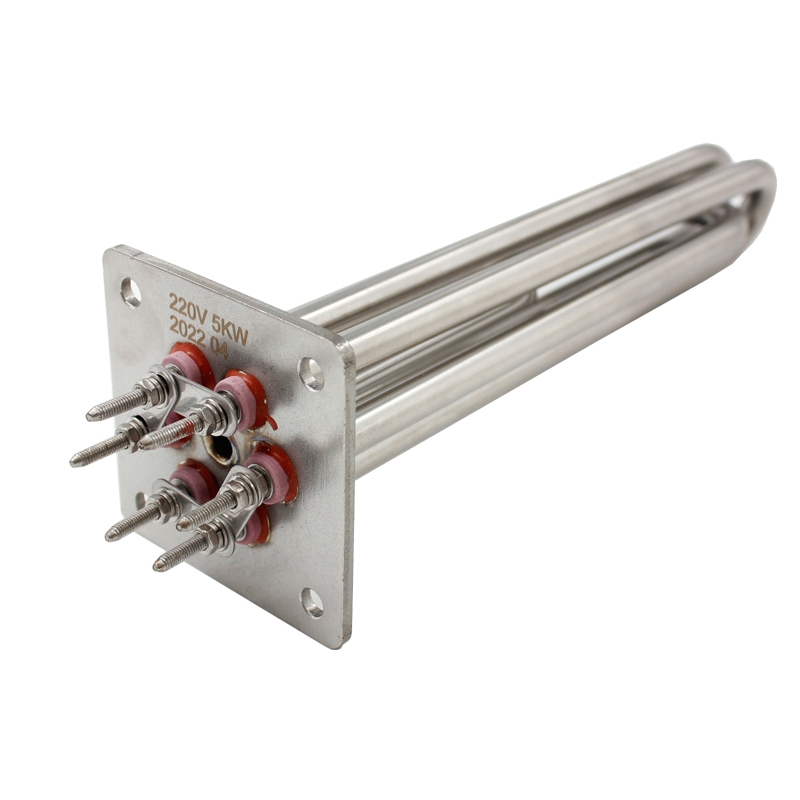

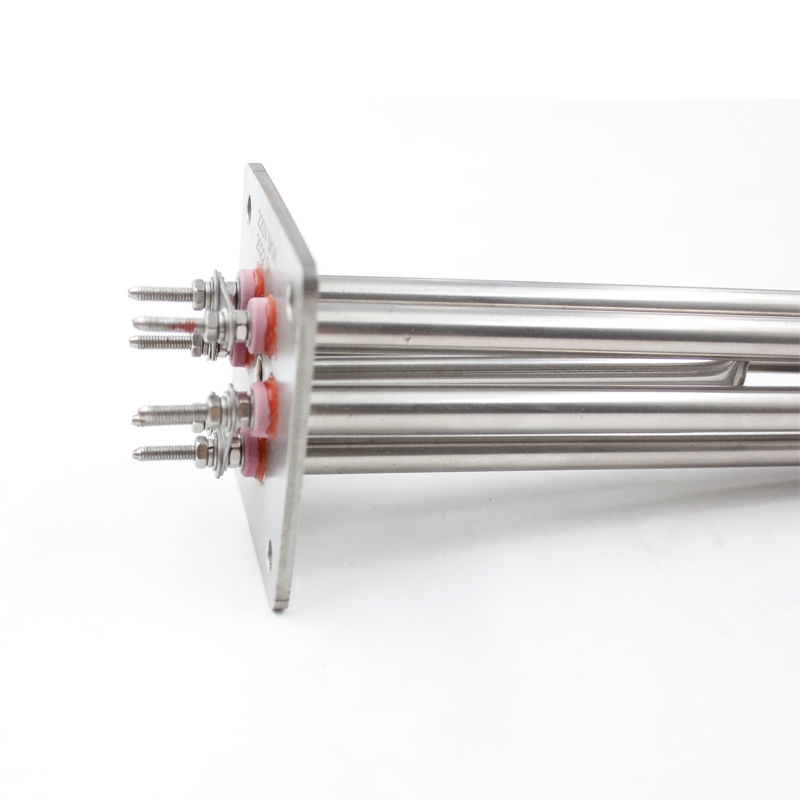

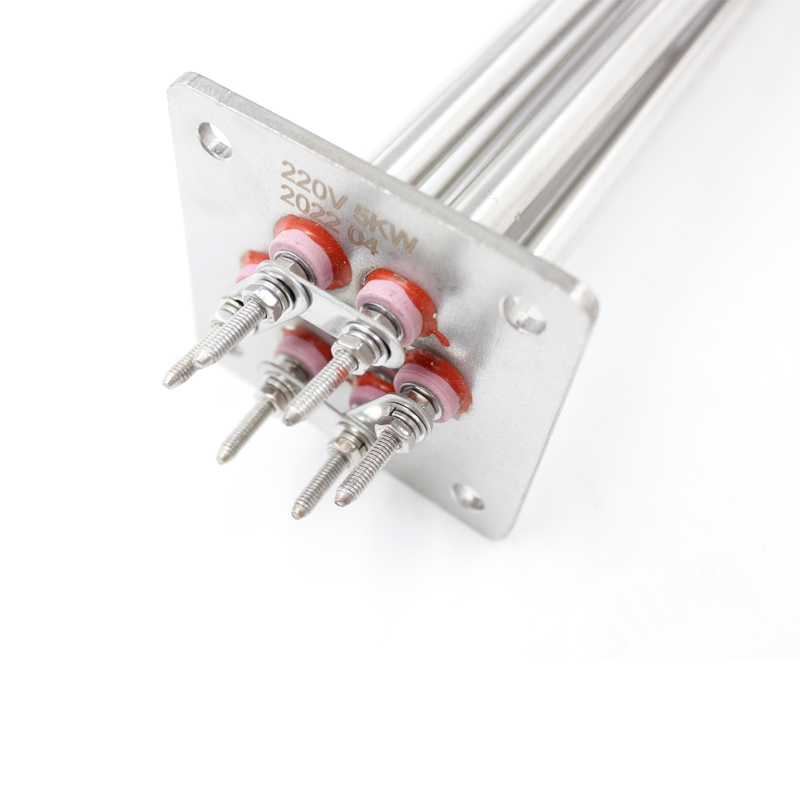

80mm Square Flange 220V Stainless Steel Electric Tank Boiler Heater Immersion Water Heating Element 5kw
80mm Square Flange 220V Stainless Steel Electric Tank Boiler Heater Immersion Water Heating Element 5kw
Opis
3 phase immersion heating element is easy to install and maintain. Designed for heating liquids and gases in tanks and pressure vessels, electric immersion heater is ideal for applications requiring higher kilowatts. Immersion heater is made with tubular metal heating element brazed or welded to a flange.
Stock flange immersion heaters are equipped with a general purpose terminal enclosure. Flange immersion heater is more heat exchange efficient, that means flange immersion heater could standard 3 do 4 times wattage. Flange immersion heater is made of advanced production equipment and through strict quality test.
Characteristic fast temperature rise heating uniformity heating exchange efficiently long-time usage appliance. Immersion heaters can be used to heat just about any kind of liquid and are used in gas tanks from time to time as well. The most mcommon and known use is heat water via an electric water heater.
However, it can be used to heat a fluid for testing in various industrial settings or for keeping the oil warm in the cold months. Immersion heaters work in all kinds of different situations and don’t require any kind of flame so they won’t ignite gases. This is one of the many reasons why immersion heaters are so popular.
SPECIFICATIONS FOR 80mm Square Flange Immersion Water Heating Element |
Heat intensity | Not exceeding 30w/cm2 (advisable) |
Napetost | 220V |
Moč | 5KW(prilagojeno) |
Exhaust extreme (when cold) | Exhaust extreme (when cold) |
Izolacija (when cold) | 5 Min Ohms 500 Watts minimum |
Dielectric strength | 1500v. 1/sec |
Working temperature | 650 Deg C max |
Garancija | 1 year |
Power tolerance (w) | +5 % – 10 % |
Cold areas | Depends on length and diameter 5-25mm |
To Order, Prosimo navedite:
1. Flange size and pressures 2.Heating element watt density 3. Length of your tank 4. Material za plast (corrosive or non corrosive) 5. Temperature of the corrodent 6. Degree of aeration of exposed corrodent 7. Velocity of the corrodent
