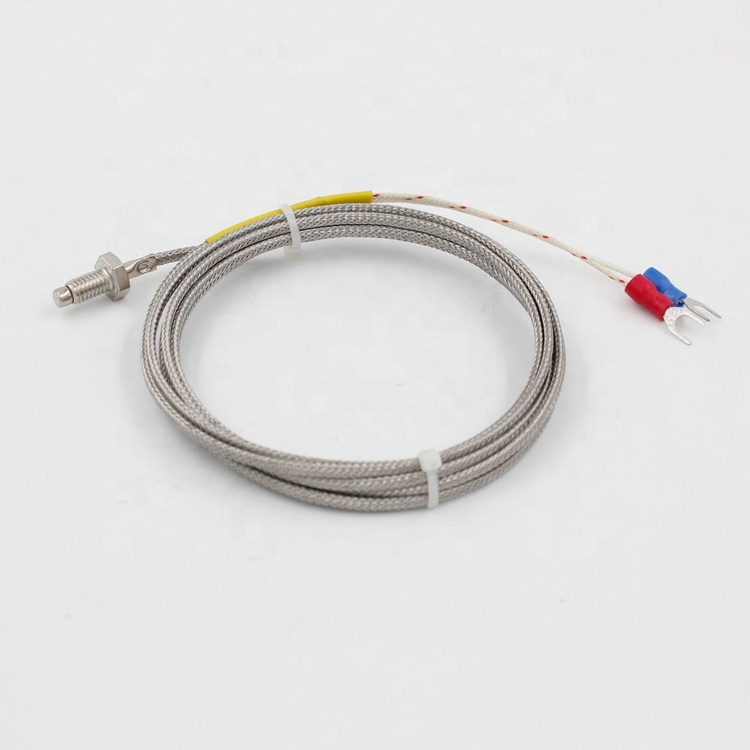

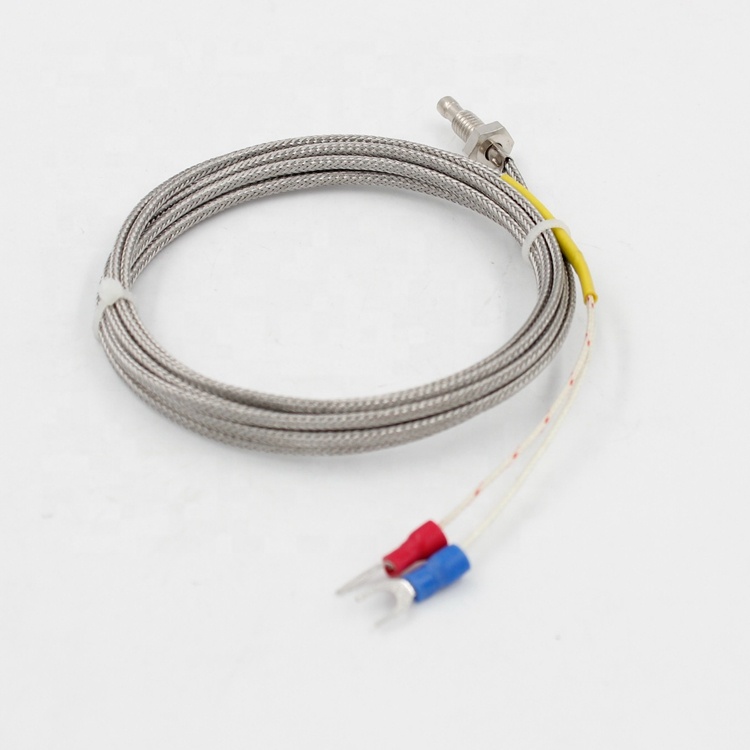

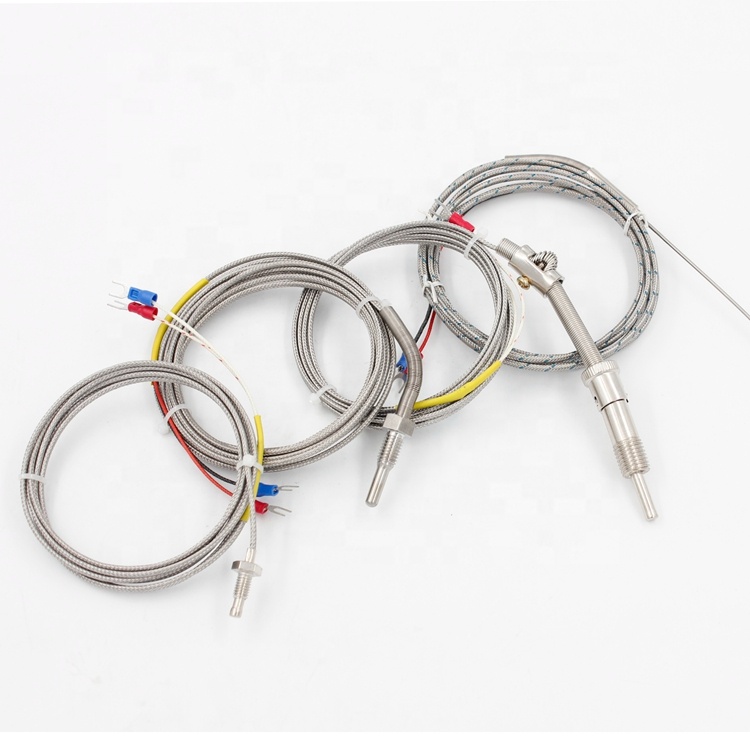

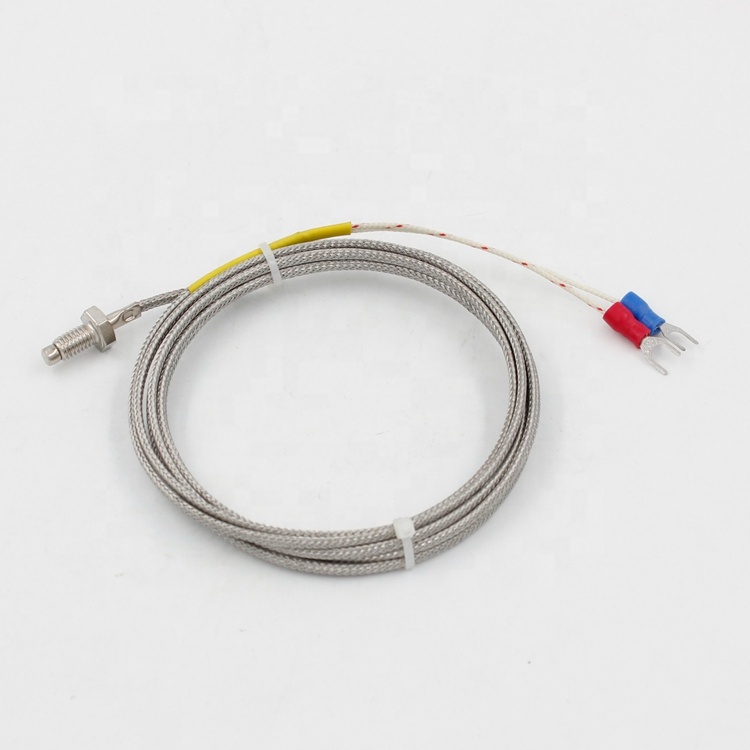

1/6 Thread M6 Screw Probe Thermocouple Temperature Sensor Type K Cable 2M 0-600
Screw Probe Thermocouple: Temperature sensor with a threaded probe used to measure temperature in solid materials and liquids.
Opis
1/6 Thread M6 Screw Probe Thermocouple Temperature Sensor Type K Cable 2M 0-600
Opis izdelka
Screw thermocouple is suitable for measuring the surface temperature of turbine and motor bearing or other body in power plant. The end thermocouple is suitable for measuring the surface temperature of turbine, motor bearing or other body in power plant. Widely used in packaging food, pharmaceutical, plastic machinery, guma, oven, etc., high quality, can completely replace the import of similar products. The outer layer of the shield wire is tightly woven and flexible.
Specifikacija
Type K (chromel – alumel) is the most common general purpose thermocouple with a sensitivity.Specifications: High quality.Model: K – Type Screw type thermocoupleScrew head specification: M6 (default M6, if M8 or other, please contact the seller). Tail length: 1000mm -10000mm (can be customized)Temperature Range: 0-800.Thread Diameter: 6mm / 0.23.Internal Insulation: Fiberglass.External Shielding: Metal Shield.Indexing number: K, E, itd. (can be customized) Indexing number: K, E, Pt100…… The linear thermocouple K type use temperature is generally not more than 600 stopnje; E-type use temperature generally not more than 400 stopnje; Pt100 thermal resistance temperature -200+450 stopnje, if you have special requirements, please contact the seller.
Cable Material | Shielded wire, Fiberglass, PTFE, Silicij |
Thread Size | M5/M6/M8 |
K | 0-800°C |
J | 0-600°C |
E | 0-400°C |
PT100 | -200-500°C |
Thread Size | M6*1/M6*1.25 |
