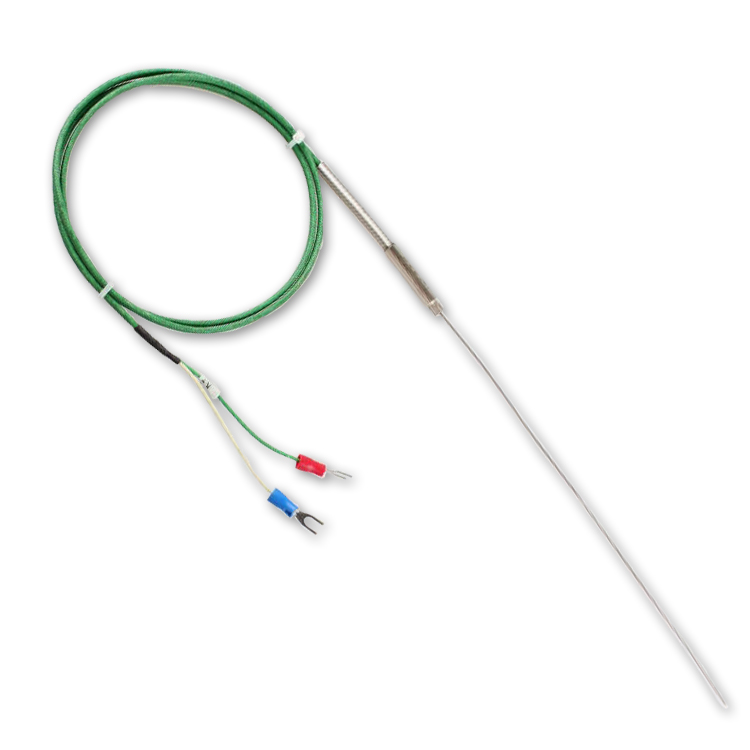

Visokozmogljiv termočlen sonde PT100 s premerom 6 mm 3 Žični temperaturni senzor RTD PT100
Probe thermocouple is a type of temperature measuring sensor that uses two different metals. Often inserted into liquids or solids to measure temperature accurately.
Opis
Opis izdelka
High Performance PT100 6mm Dia Probe Thermocouple Wire RTD PT100 Temperature Sensor
Thermal resistance, high sensitivity, strong stability, interchangeability and accuracy are relatively good, but need power excitation, can not measure the temperature change instantaneously. Industrial thermal resistance is generally Pt100, Pt10, Cu50, Cu100, platinum thermal resistance temperature measurement range is generally -200 ~ 800℃, often used in power, kemična industrija, injection molding, packaging, food, incubator, oven temperature measurement.
PT100 RTD sensor advantage:①Less thermal response time, reduce the dynamic error; ②Small diameter, length is not restricted;③High measuring accuracy;④Imported film resistance element;
⑤Performance stable and reliable.
Specifikacija
Ime izdelka | PT100 Probe Thermocouple |
Vrsta | PT100-type |
Product mode | WZPK-191 |
Premer sonde | 3/4/5mm |
Dolžina sonde | Customized according to customer requirements |
Dolžina vodila | 1m/2m/3m/4m/5m(there is tolerance, if care, please do not make order.) |
Wire material | Polytafluoro-silver-plated leads |
Območje merjenja temperature | -200-450C |
Custom | Yes, can custom probe diameter. dolžina, cable length. |
Vsebina paketa | 1 × senzor |
Opomnik: Večji kot je premer sonde, boljši je učinek temperaturne odpornosti.
Buyers are requested to provide the actual measurement range as much as possible so that we can adapt to the appropriate diameter and material.
New 304SUS high density braided sheath
High corrosion resistance and wear resistance, use long life and durability.
Sonda iz nerjavečega jekla
Choose national standard 304 stainless steel raw material.
Be anti-interference
Teflon high temperature silver plating shield tetrafluoro material, with anti-interference ability.
Vrsta | Diplomiranje | Temperature Range(°C） | Short-term Temperature Measurement(°C） |
WRNK-191 | K | 0-900°C | 0-1000°C |
WREK-191 | E | 0-600°C | 0-700°C |
WRCK-191 | T | 0-200°C | 0-400°C |
WRFK-191 | J | 0-450°C | 0-600°C |
WRMK-191 | n | 0-1100°C | 0-1200°C |
WRPK-191 | S | 0-1250°C | 0-1400°C |
WZPK-191 | PT100 | -20-420°C | 0-600°C |
The thermal response time shall not exceed that specified in the following table :(s) | ||
Premer(mm) | Termočlen | |
Ungrounded | Grounded | |
2.0 | 0.5 | 0.4 |
3.0 | 1.2 | 0.6 |
4.0 | 2.5 | 0.8 |
5.0 | 4.5 | 1.2 |
6.0 | 6.0 | 2.0 |
8.0 | 8.0 | 4.0 |
