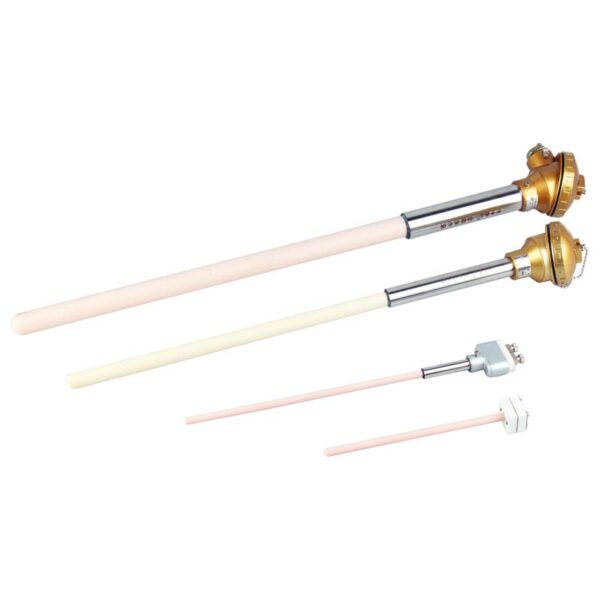

Factory Price Customized Specifications Temperature Sensor S B R Type Platinum Rhodium Thermocouple

Platinum Rhodium Thermocouple: High accuracy temperature sensor that uses platinum and rhodium wires for stable and precise temperature measurements in extreme conditions.

Kategorija: Oznaka:

Opis

Factory Price Customized Specifications Temperature Sensor S B R Type Platinum Rhodium Thermocouple
Opis izdelka

Termočlen je naprava za merjenje temperature, sestavljena iz dveh različnih prevodnikov, ki se stikata drug z drugim na enem ali več mestih.. Proizvaja napetost, ko se temperatura ene od točk razlikuje od referenčne temperature na drugih delih vezja.

Termoelementi so pogosto uporabljena vrsta temperaturnih senzorjev za merjenje in nadzor, in lahko tudi pretvori temperaturni gradient v elektriko. Komercialni termoelementi so poceni, zamenljivi, so dobavljeni s standardnimi priključki, and can measure a wide range of temperatures. In contrast to most other methods of temperature measurement, thermocouples are self powered and require no external form of excitation.

Specification of pt-rh thermocouple1) S/B/R type pt-rh thermocouple 2).wire diameter: 0.3 mm, 0.4 mm, 0.5 mm3).dolžina:can be customized as for customer’s requirement4).measuring range:0-1600 C5).fixed device:screw thread/flange6).terminal box: water-proof type, splash-proof type, anti-explosion type, connector typeTechnical Parameters of pt-rh thermocouple1).material: PtRh10-Pt, PtRh30-PrRh6, PtRh13-Pt2).use temperature:0-1300,0-16003).max temperature: 1800°C4).experiment temperature: 0-1600°C5).thermal response Time:≤120 s
Conductor
material
Wire
Calibration
Accuracy
Class
Class
Accuracy
Temperaturno območje(℃)
Accuracy
Temperaturno območje(℃)
Ni Cr-Ni Si
K
1.5
or
0.4%t
-40-1000
2.5
or
0.75%t
-40-1000
Ni Cr Si-Ni Si
E
-40-1100
-40-1200
NiCr-Konstantan
n
-40-800
-40-800
Fe-Konstantan
J
-40-750
-40-750
Cu-Konstantan
T
1 or 0.4%t
-40-350
1.5 or 0.75%t
-40-350
Pt Rh 10-Pt
S
1 or 1+t-1100×0.003
0-1600
1.5
or
0.25%t
0-1600
PtRh 13-Pt
R
0-1600
Pt Rh30-PtRh 6
B
600-1700
Specifikacija
Ime izdelka
Rodijev termočlen iz platine
Vrsta
S/R/B
Material
99% visokotemperaturna korundna cev, Ali cev iz visokotemperaturne zlitine GH3039 ali zaščitna cev SIC
Cev iz nerjavečega jekla
OD φ22 mm
Keramična cev
OD φ16 mm
Premer žice
0.3mm, 0.4mm,0.5mm.
Platinum Rhodium Thermocouple
Keramična cev OD
Celotna dolžina
Dolžina potopitve
Spojna cev OD
Dolžina priključne cevi
Premer žice
16MM
300MM
150MM
22MM
150MM
0.3MM
16MM
400MM
250MM
22MM
150MM
0.3MM
16MM
500MM
350MM
22MM
150MM
0.3MM
16MM
600MM
450MM
22MM
150MM
0.3MM
16MM
700MM
550MM
22MM
150MM
0.3MM
16MM
800MM
650MM
22MM
150MM
0.3MM
16MM
900MM
750MM
22MM
150MM
0.3MM
16MM
1000MM
850MM
22MM
150MM
0.3MM
Platinum Rhodium Thermocouple
Podrobnosti Slike
Platinum Rhodium Thermocouple
navodila za namestitev
Platinum Rhodium Thermocouple
Pakiranje&Dostava
Platinum Rhodium Thermocouple
Predstavitev podjetja
Platinum Rhodium Thermocouple
Platinum Rhodium Thermocouple
