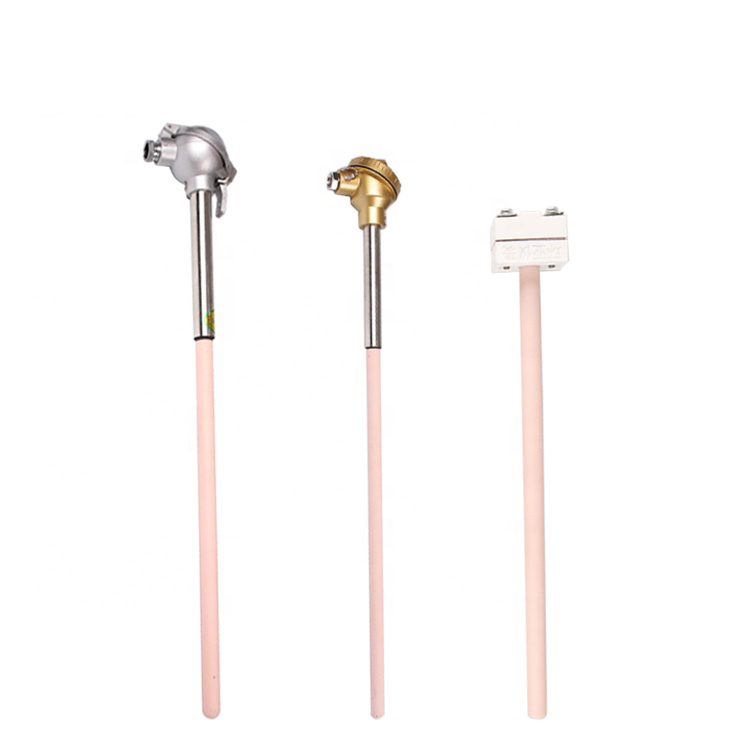

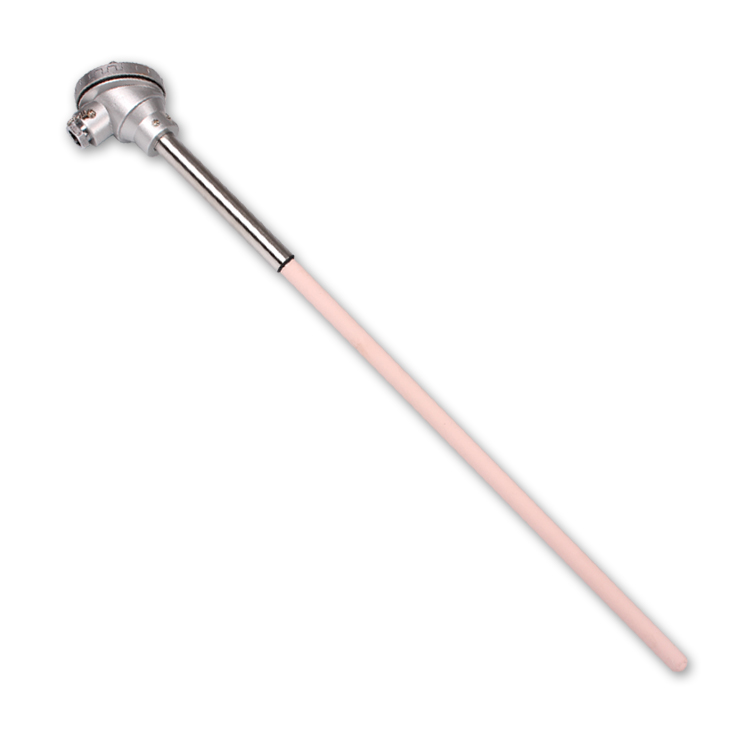

Platinum Rhodium Thermocouple S Type Thermocouple Length 100mm 300mm 500mm
Platinum Rhodium Thermocouple is a high-precision temperature measuring device that consists of two wires – platinum and rhodium.
Opis
Platinum Rhodium Thermocouple S Type Thermocouple Length 100mm 300mm 500mm
Opis izdelka
Rodijev termočlen iz platine (S-type thermocouple) is a precious metal thermocouple. Double wire diameter is 0.5mm, allowable deviation -0.015mm, the nominal chemical composition of the positive pole (SP) is platinum-rhodium alloy, which contains rhodium 10%, platinum is 90%, negative pole (SN) is pure platinum, so commonly known as single platinum-rhodium thermocouple. Themaximum long-term service temperature of the thermocouple is 1300℃, and the maximum short-term service temperature is 1600℃.
Specification of pt-rh thermocouple1) S type pt-rh thermocouple 2).wire diameter: 0.3 mm, 0.4 mm, 0.5 mm3).dolžina:can be customized as for customer’s requirement4).measuring range:0-1600 C5).fixed device:screw thread/flange6).terminal box: water-proof type, splash-proof type, anti-explosion type, connector typeS type thermocouples featuresS type thermocouple has the advantages of the highest accuracy, najboljša stabilnost, široko območje merjenja temperature in dolga življenjska doba v serijah termočlenov. Ima dobre fizikalne in kemijske lastnosti, stabilnost termoelektričnega potenciala in odpornost proti oksidaciji pri visoki temperaturi, primeren za oksidacijo in inertno atmosfero.
Specifikacija
Ime izdelka | Rodijev termočlen iz platine |
Vrsta | S/R/B |
Material | 99% visokotemperaturna korundna cev, Ali cev iz visokotemperaturne zlitine GH3039 ali zaščitna cev SIC |
Cev iz nerjavečega jekla | OD φ22 mm |
Keramična cev | OD φ16 mm |
Premer žice | 0.3mm, 0.4mm,0.5mm. |
Keramična cev OD | Celotna dolžina | Dolžina potopitve | Spojna cev OD | Dolžina priključne cevi | Premer žice |
16MM | 300MM | 150MM | 22MM | 150MM | 0.3MM |
16MM | 400MM | 250MM | 22MM | 150MM | 0.3MM |
16MM | 500MM | 350MM | 22MM | 150MM | 0.3MM |
16MM | 600MM | 450MM | 22MM | 150MM | 0.3MM |
16MM | 700MM | 550MM | 22MM | 150MM | 0.3MM |
16MM | 800MM | 650MM | 22MM | 150MM | 0.3MM |
16MM | 900MM | 750MM | 22MM | 150MM | 0.3MM |
16MM | 1000MM | 850MM | 22MM | 150MM | 0.3MM |
Conductor material | Wire Calibration | Accuracy | |||
Class | Class | ||||
Accuracy | Temperaturno območje(℃) | Accuracy | Temperaturno območje(℃) | ||
Ni Cr-Ni Si | K | 1.5 or 0.4%t | -40-1000 | 2.5 or 0.75%t | -40-1000 |
Ni Cr Si-Ni Si | E | -40-1100 | -40-1200 | ||
NiCr-Konstantan | n | -40-800 | -40-800 | ||
Fe-Konstantan | J | -40-750 | -40-750 | ||
Cu-Konstantan | T | 1 or 0.4%t | -40-350 | 1.5 or 0.75%t | -40-350 |
Pt Rh 10-Pt | S | 1 or 1+t-1100×0.003 | 0-1600 | 1.5 or 0.25%t | 0-1600 |
PtRh 13-Pt | R | 0-1600 | |||
Pt Rh30-PtRh 6 | B | 600-1700 |
