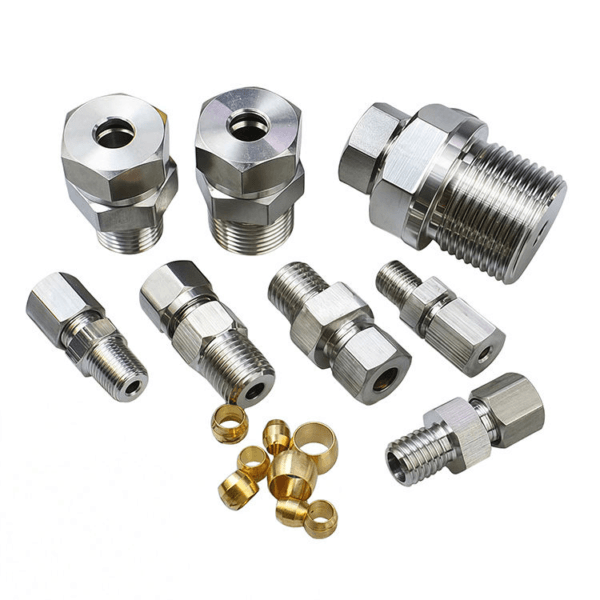

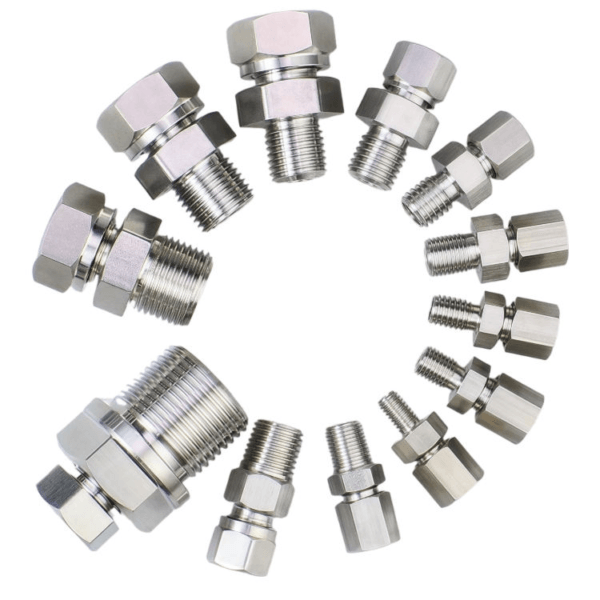

M6 M8 PT1/8 Stainless Steel Thermocouple Sensor with Adjustable Ferrule Fitting Screw OEM & ODM Customizable
M6 M8 PT1/8 Stainless Steel Thermocouple Sensor with Adjustable Ferrule Fitting Screw OEM &ojačevalnik; ODM Customizable
Opis
M6 M8 PT1/8 Stainless Steel Thermocouple Sensor with Adjustable Ferrule Fitting Screw OEM &ojačevalnik; ODM Customizable
Opis izdelka

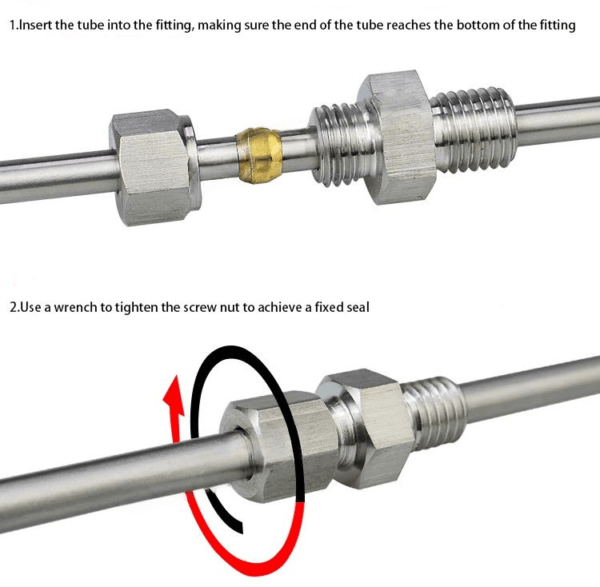

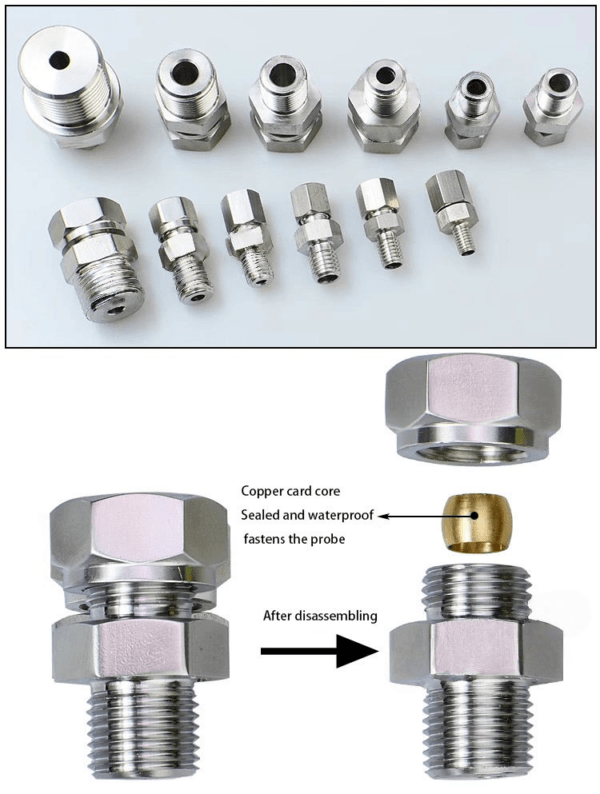

Ferrule threads are a type of thread used for pipe connections, typically used with compression fittings. They work by squeezing a ferrule (a metal ring) between the fitting and the pipe, creating a tight, sealed connection. This eliminates the need for welding or thread cutting, making them suitable for applications such as high-pressure fluid systems.
Specifikacija
ferrule thread | |||
Ime | ferrule thread | material | SS304 |
nit | Metric threads such asM6*1/M8*1/M8*1.25/M10*1/M10*1.5/M12*1/M12*1.5/M12*1.75/M14*1.5/M16*1.5/M18*1.5/M20*1.5/M27*2 Inch thread sizes:1/2/3/4/6/8/11/12/13/14/16/17/18/19/20/21/22/23/24/25/26/27/27/28/29/30/31/32/33/34/36/37/38/39/39/30/31/32 …0/ | ||
Pairable probe diameter | 1/1.5/2/3/4/5/6/8/10/12/14/16/18/20mm | ||
Aplikacija | non-corrosive media such as water, olje, and gas (within 1MPA) |
nit | Length of Thread | Diameter of inner hole | Celotna dolžina |
M6*1 | 10mm | 1/1.5/2/3/4mm | 30mm |
M8*1 | 11mm | 1/1.5/2/3/4/5mm | 31mm |
M8*1.25 | 11mm | 1/1.5/2/3/4/5mm | 30mm |
M10*1 | 12mm | 1/1.5/2/3/4mm and so on | 33mm |
M10*1.5 | 12mm | 1/1.5/2/3/4mm and so on | 33mm |
M12*1 | 12.5mm | 1/1.5/2/3/4mm and so on | 34mm |
M12*1.5 | 12mm | 1/1.5/2/3/4mm and so on | 34mm |
M12*1.75 | 15mm | 1/1.5/2/3/4mm and so on | 33mm |
M14*1.5 | 14mm | 1/1.5/2/3/4mm and so on | 35mm |
M16*1.5 | 13mm | 1/1.5/2/3/4mm and so on | 38mm |
M18*1.5 | 14mm | 1/1.5/2/3/4mm and so on | 34mm |
M20*1.5 | 14mm | 1/1.5/2/3/4mm and so on | 39mm |
M27*2 | 21.5mm | 3/4/5/6/8mm and so on | 48mm |
PT1/8 | 11mm | 1/1.5/2/3/4mm and so on | 32mm |
PT1/4 | 11mm | 1/1.5/2/3/4mm and so on | 35mm |
PT3/8 | 14mm | 1/1.5/2/3/4mm and so on | 35mm |
PT1/2 | 13mm | 1/1.5/2/3/4mm and so on | 37mm |
PT3/4 | 14mm | 3/4/5/6/8mm and so on | 35mm |
Aplikacija
Pakiranje & Dostava
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Profil podjetja
we have passed the industry qualification certification to protect the product quality. We provide one-stop procurement services to reduce the procurement cost for customers.We offer a service of batch remittance to alleviate the pressure on customers’ capital turnover.
pogosta vprašanja
1. kdo smo mi?Sedež imamo v mestu Jiangsu, Kitajska, start from 2021,sell to North America(90.00%),Domestic Market(10.00%). Skupaj jih je približno 11-50 ljudje v naši pisarni.2. kako lahko zagotovimo kakovost?Vedno predprodukcijski vzorec pred množično proizvodnjo;Vedno končni pregled pred pošiljanjem;3.kaj lahko kupite pri nas?Heating Element, Ventilation Products, Thermocouple4. zakaj bi morali kupovati pri nas ne pri drugih dobaviteljih?we have passed the industry qualification certification to protect the product quality. We provide one-stop procurement services to reduce the procurement cost for customers.5. katere storitve lahko zagotovimo?Sprejeti pogoji dostave: FOB,EXW,DDP；Valuta sprejetega plačila:ameriški dolar;Sprejeta vrsta plačila: T/T,L/C,D/P D/A;Govorjeni jezik:angleščina,kitajski,francosko
