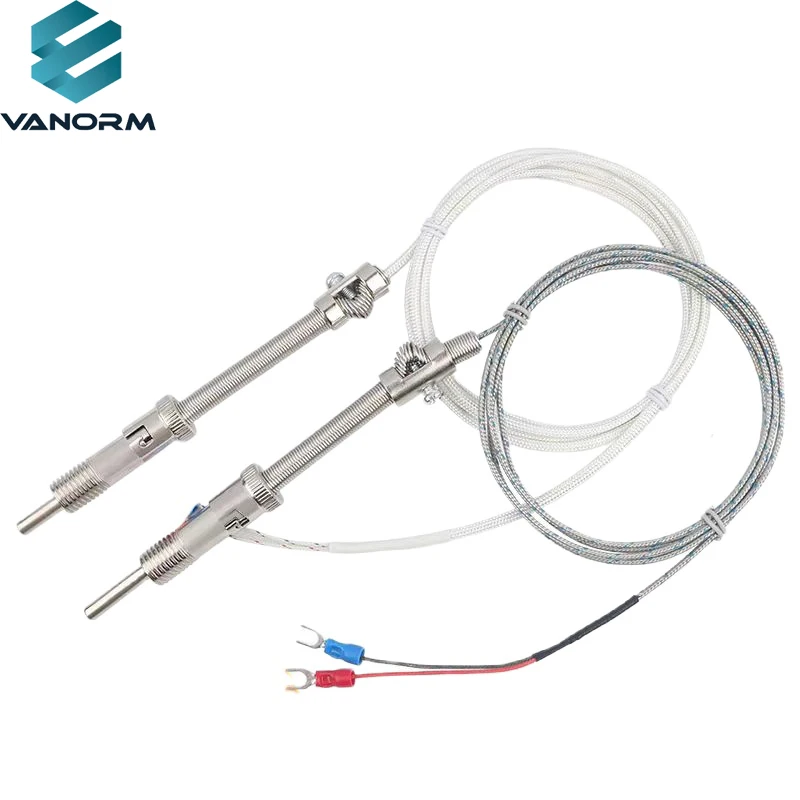

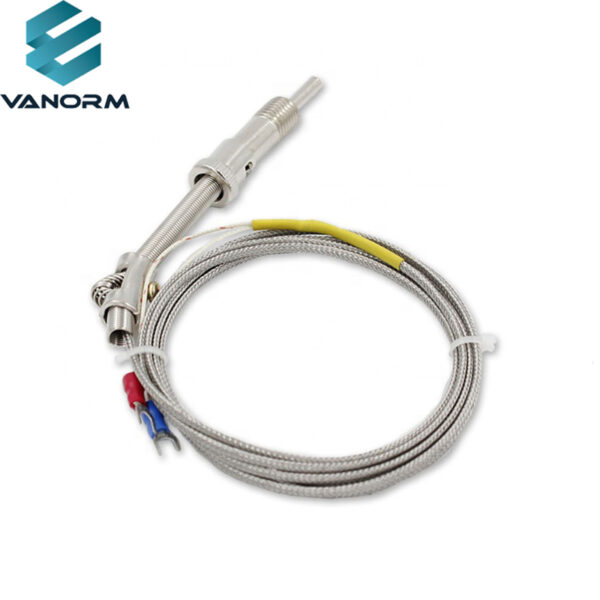

WRNT01 Temperature Sensor Probe K-type and E-type Compression Spring Couple Shielded Glass Fiber Wire
Opis izdelka
Product structure：
1.Protective tube: Made of high-quality materials such as 304 nerjaveče jeklo, it features excellent high-temperature resistance and corrosion resistance, thereby extending the product’s service life.
2. Compression spring assembly: The end of the thermocouple is tightly attached to the surface of the object being measured through a compression spring, which greatly enhances the reliability and accuracy of the measurement and reduces measurement errors caused by poor contact.
3. Installation components: Including installation bolts, locking ferrules, etc., easy to install. First, tighten the connecting bolts onto the object to be measured. Then, place the thermocouple tightly against the object to be measured, tighten the ferrule screws, and finally screw on the locking ferrule. The installation is then completed.
4. Thermocouple wires: Two types of classification numbers, K type and E type, are available to meet different temperature measurement ranges and accuracy requirements.
2. Compression spring assembly: The end of the thermocouple is tightly attached to the surface of the object being measured through a compression spring, which greatly enhances the reliability and accuracy of the measurement and reduces measurement errors caused by poor contact.
3. Installation components: Including installation bolts, locking ferrules, etc., easy to install. First, tighten the connecting bolts onto the object to be measured. Then, place the thermocouple tightly against the object to be measured, tighten the ferrule screws, and finally screw on the locking ferrule. The installation is then completed.
4. Thermocouple wires: Two types of classification numbers, K type and E type, are available to meet different temperature measurement ranges and accuracy requirements.
Specifikacija
ime izdelka | Press Spring Temperature Sensor |
Model | WRNT01/WRET01/WRPT01 |
Division number | K/E/J/T/PT100 |
Material of the protective tube | Iron electroplating |
Diameter of the protective sleeve | Default 5mm (prilagodljiv) |
Probe Length | 30mm(Default), 10mm, 20mm, 40mm, 50mm, 60mm, 70mm,80mm,90mm,100mm (prilagodljiv) |

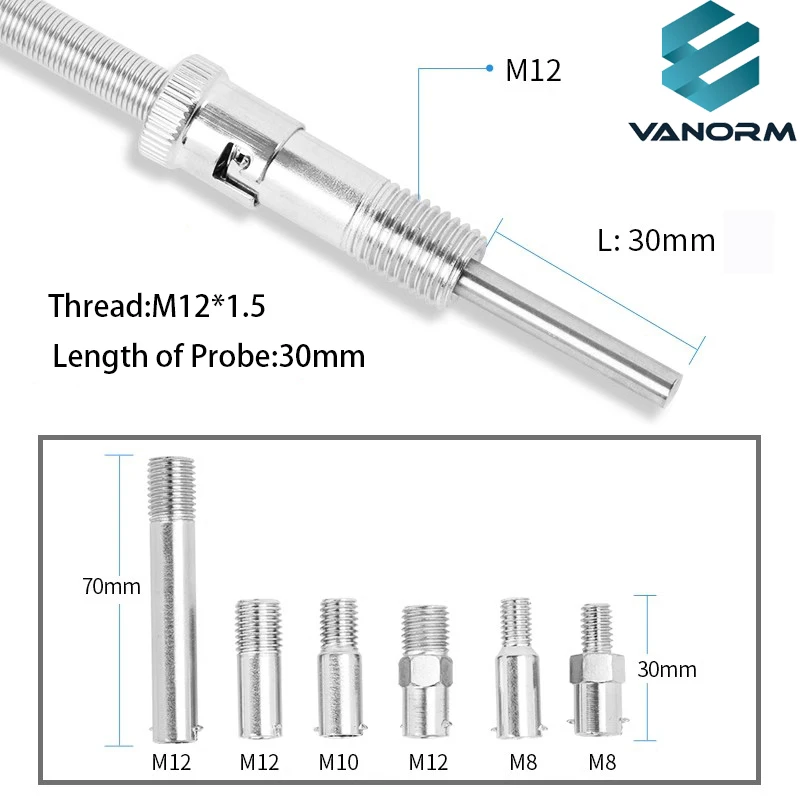

Threaded head | M12*1.5/M8*1/M8*1.25/M10*1 |
Temp range | PT100 -50℃-200℃CU50 -50℃-150℃K 0℃—600℃E 0℃—400℃ |
Terminals | U type Terminals , mini connectors |
Wiring method
Aplikacija
1. Injection molding machine industry: The WRNT01 compression spring thermocouple can monitor the temperature of each key part in real time, providing accurate temperature data for the injection molding machine control system and helping operators precisely regulate the heating device.
2. Light textile industry: It is used for temperature monitoring of textile machinery, such as the control of spinning temperature in the production process of chemical fibers, as well as the temperature monitoring of drying, steaming and other links in the printing and dyeing process.
3. Food industry: In food processing equipment, such as baking ovens, frying equipment, steaming and cooking equipment, etc., it is used to monitor the temperature during the food processing.
2. Light textile industry: It is used for temperature monitoring of textile machinery, such as the control of spinning temperature in the production process of chemical fibers, as well as the temperature monitoring of drying, steaming and other links in the printing and dyeing process.
3. Food industry: In food processing equipment, such as baking ovens, frying equipment, steaming and cooking equipment, etc., it is used to monitor the temperature during the food processing.
