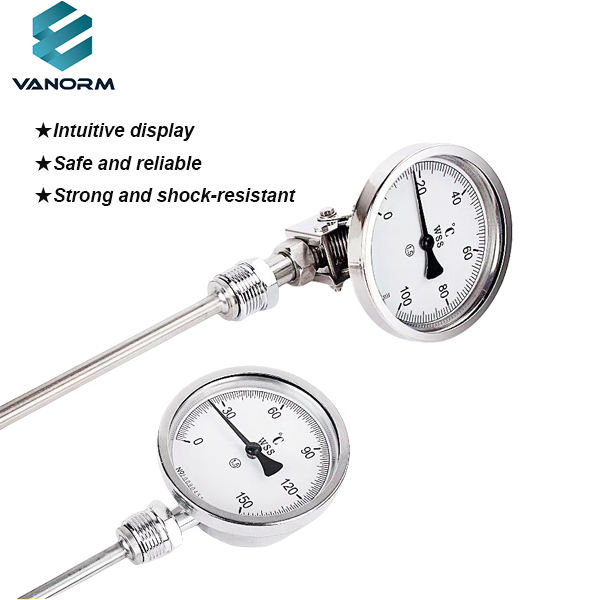

Industrial Bimetallic Thermometer Radial Reactor Boiler Pipe Pointer Temperature Gauge Stainless Steel Extended Probe
Opis
Opis izdelka
The WSS311/411 bimetallic thermometer is based on a combination of two metals with different coefficients of linear expansion.When the temperature changes, the two metals expand to different degrees of heat, driving the pointer to deflect to indicate the temperature. The temperature-sensing element is a hot bimetallic strip wound into a threaded shape, installed in a protective sleeve. One end is fixed as the fixed end, and the other end is connected to a fine shaft as the free end, with the free end connected to the pointer. When the temperature changes, the free end of the hot bimetallic strip rotates, driving the pointer to indicate the corresponding temperature on the scale.
Please confirm the following parameters before purchasing
1. Structural form 2. Dial diameter 3. Precision grade 4. Installation form 5. Insertion depth6. Pipe diameter 7. Območje merjenja temperature
Specifikacija
Specification and model | WSS401/411-VD Bimetallic thermometer |
Dial diameter | 100mm（Customizable diameters such as 60/150mm are available) |
Diameter of the temperature measuring rod | 10mm(The pipe diameter can be customized) |
Interface size | M27*2(Movable thread) |
Measurement range | 0-500℃ |

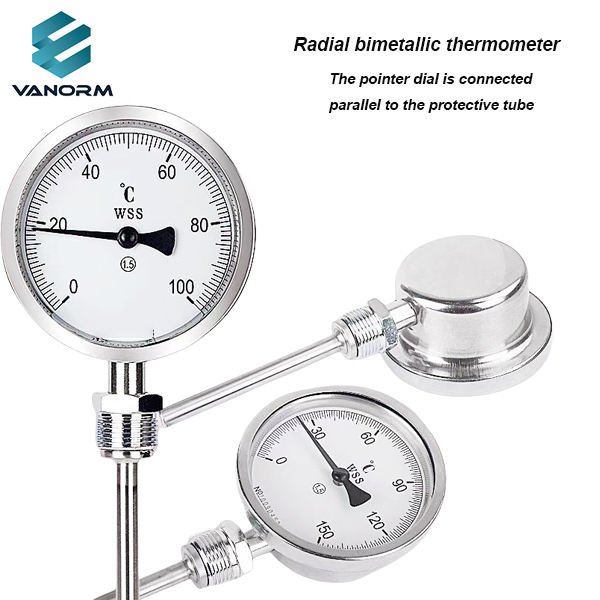

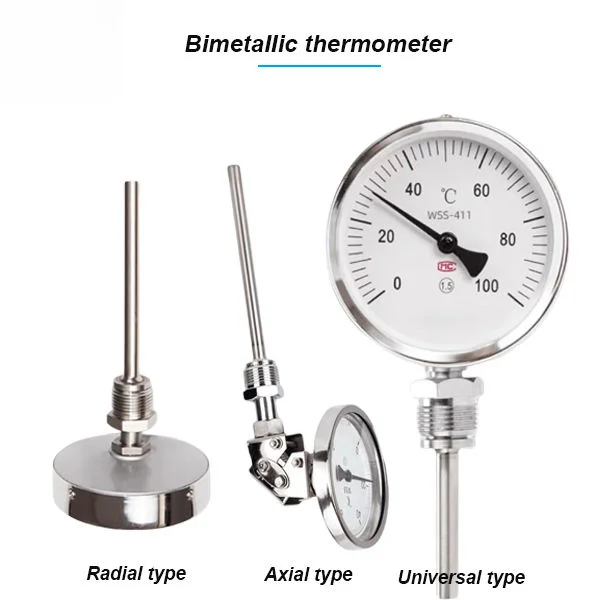

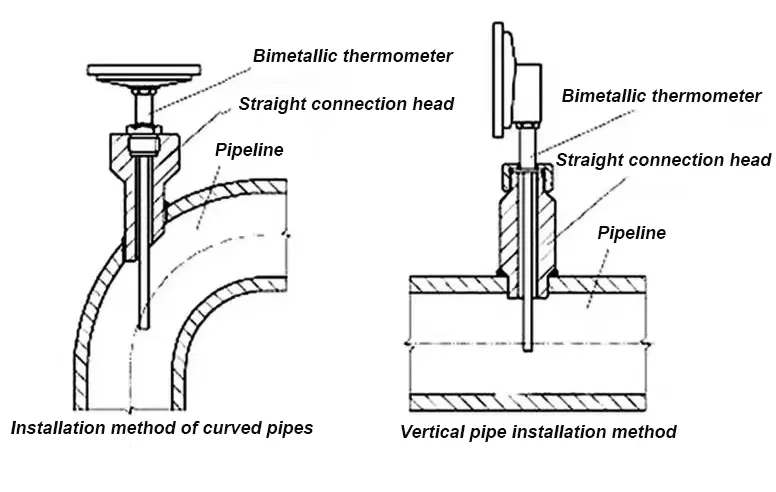

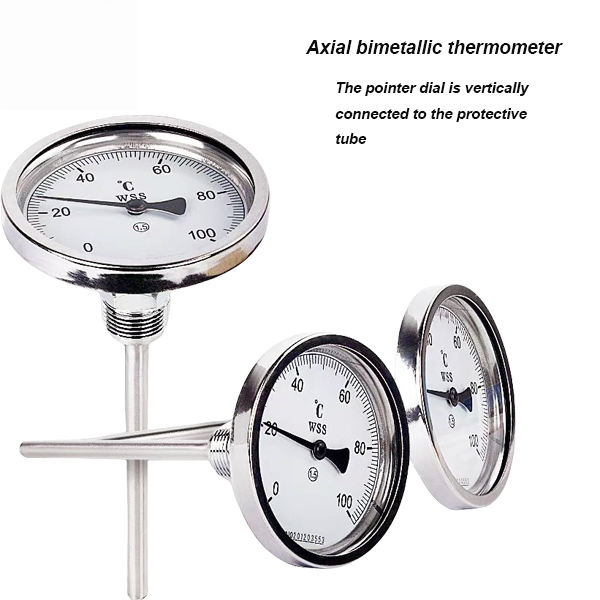

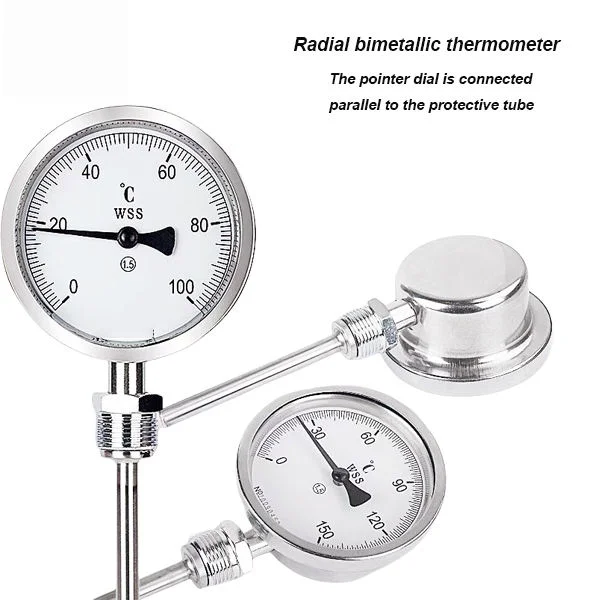

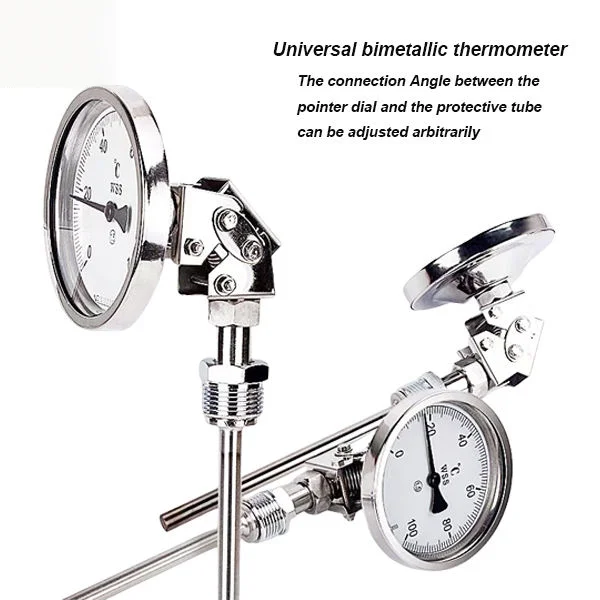

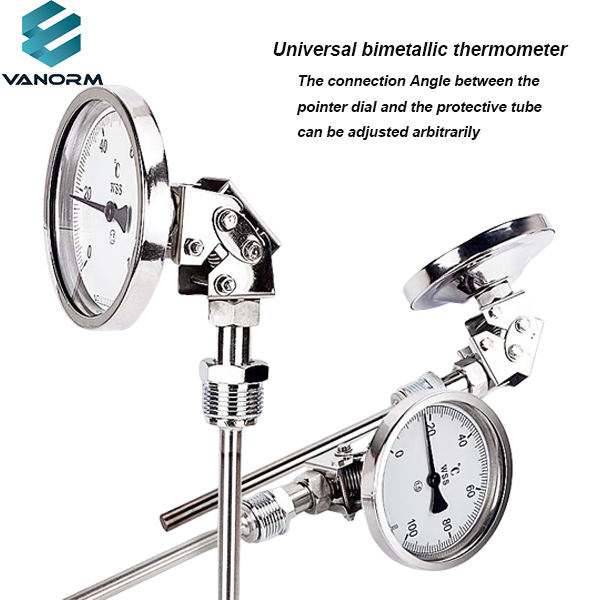

Installation form | Radial/Axial/universal |
Accuracy | Level 1.5 |
Material of probe rod | Nerjaveče jeklo |
Thermal response time | ＜40s |
Protection grade | IP65 |
Connection method | No fixed device, movable internal and external threads, fixed thread/flange, ferrule thread/flange |
Pakiranje & Dostava
Za boljšo varnost vašega blaga, strokovno, okolju prijazen, zagotovljene bodo priročne in učinkovite storitve pakiranja.
Profil podjetja
smo opravili certificiranje industrijske kvalifikacije za zaščito kakovosti izdelkov. Zagotavljamo storitve nabave na enem mestu, da zmanjšamo stroške nabave za stranke. Ponujamo storitev paketnega nakazila za zmanjšanje pritiska na stranke’ obrat kapitala.
pogosta vprašanja
1. kdo smo mi?Sedež imamo v mestu Jiangsu, Kitajska, start from 2021,sell to North America(90.00%),Domestic Market(10.00%). Skupaj jih je približno 11-50 ljudje v naši pisarni.2. kako lahko zagotovimo kakovost?Vedno predprodukcijski vzorec pred množično proizvodnjo;Vedno končni pregled pred pošiljanjem;3.kaj lahko kupite pri nas?Heating Element, Ventilation Products, Thermocouple4. zakaj bi morali kupovati pri nas ne pri drugih dobaviteljih?smo opravili certificiranje industrijske kvalifikacije za zaščito kakovosti izdelkov. We provide one-stop procurement services to reduce the procurement cost for customers.5. katere storitve lahko zagotovimo?Sprejeti pogoji dostave: FOB,EXW,DDP；Valuta sprejetega plačila:ameriški dolar;Sprejeta vrsta plačila: T/T,L/C,D/P D/A;Govorjeni jezik:angleščina,kitajski,francosko
