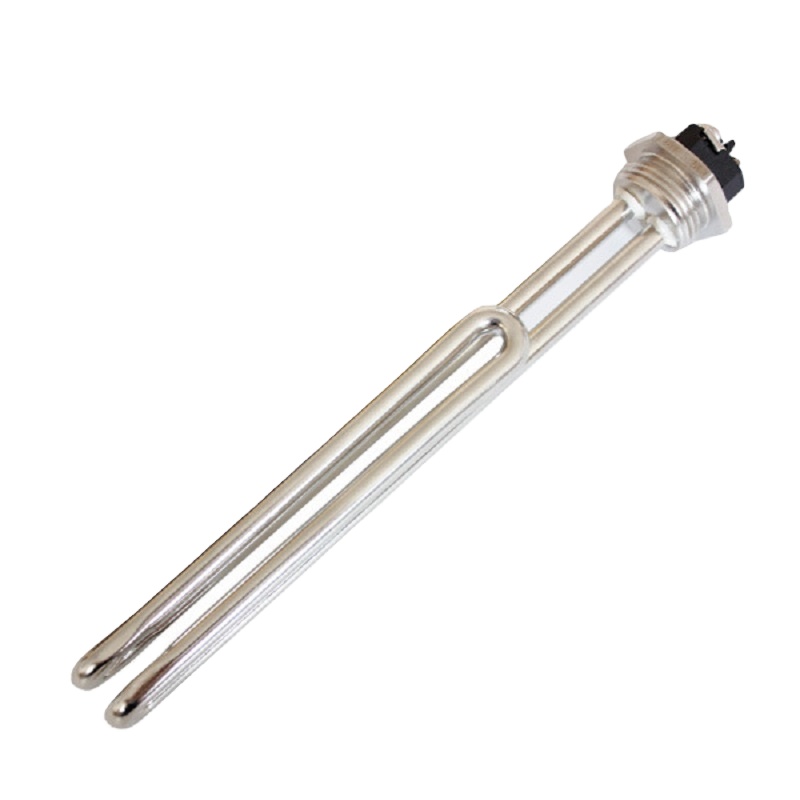

220V Electric Immersion Tubular Heaters 1″ NPT Flange Stainless Steel 304 Vodni grelni element
The Immersion Tubular Heaters are high-performance heating elements that provide efficient and reliable heating for a variety of liquid heating applications.
Opis
220V Electric Immersion Tubular Heaters 1″ NPT Flange Stainless Steel 304 Vodni grelni element
Opis izdelka
Immersion Tubular Heaters
Electrical flange immersion heaters are designed for heating or temperature maintening of liquids, gas or mixture in static or circulation conditions.The design is based on customer process conditions: fluid to heat (type and properties), in/out temperature, pressure, heat exchange conditions (stagnant or flowing), and environment conditions (ATEX or not, onshore or offshore, etc.).Flange immersion heaters can be straight or L-shaped.
Technical Data
Flange size | 1” NPT |
Premer cevi | 8.5 mm |
Immersion Length | Can be customized |
Napetost&Moč | Can be customized |
Material plašča | Stainless Steel 304 316L 310S Copper Incoloy 800 840 |
Built in thermostat well | Built-in thermostat wells can be installed upon request. When ordering, please provide length BUILT-IN THERMOSTAT WELL and internal diameter |
How to choose the right Material for immersion heater?
Aplikacija | Material plašča | Typical Watt Density(w/cm²) | Screw Plug/Flange Material |
Water, Freeze protection, Hotwater storage, Boilerandwaterheaters, Coolingtowers, Solution not corrosive to copper, Food equipment | Stainless Steel304 316L or Copper | 8w/cm2 | Stainless Steel or Brass |
Oil, Heavy and non-circulated oils, Solution water, Corrosive solutions, Steam super heating | Stainless Steel 316L 310s or Incoloy | 2.5w/cm2 | Stainless Steel |
Light oils , Inforced oil circulation loops | Stainless Steel304 316L | 4.5w/cm2 | Stainless Steel |
Mildly corrosive solutions | Stainless Steel 316L 310s or Incoloy | 8w/cm2 | Stainless Steel |
Fluid heat transfer media, Tar, High to low viscosity petroleum oils, Asphalt, Wax, Paraffin, Degreasing solvents, Alcohol, Moltensalt, Solutions not corrosive to steel | Stainless Steel304 316L | 2.5w/cm2 | Stainless Steel |
Process water, Soap and detergent solutions, Soluble cutting oils, Demineralized or deionized water | Stainless Steel304 316L | 4.5w/cm2 | Stainless Steel |
PLEASE CONSULT CORROSION GUIDE RECOMMENDATIONS. |
