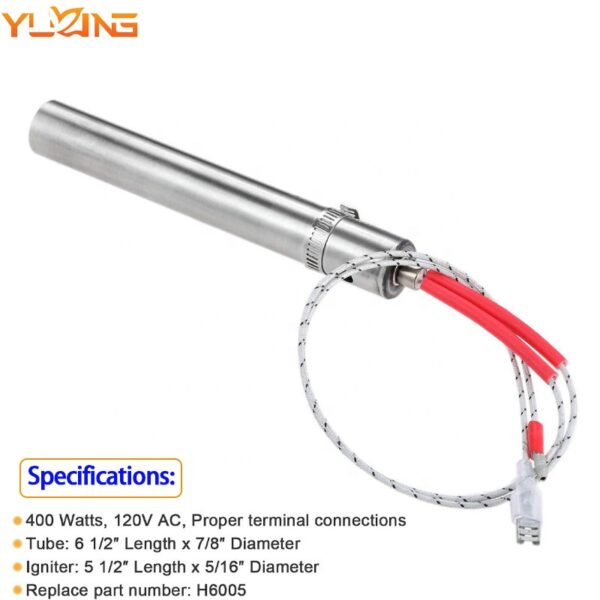

H6005 120V 400W Stainless Steel Ignitor Replacement for Lennox Country Winslow PS40 PI40 Pellet Stoves Heating Equipment Parts


Kategorija:

Opis

Opis izdelka
Precise Fit: Developed strictly in accordance with the original specifications of Lennox, it perfectly integrates with Country Winslow PS40 and PI40 series pellet stoves. No additional modifications are required; simply replace and use directly. This avoids equipment damage or safety hazards caused by incompatible models.

Stable Output: Rated voltage 120V, rated power 400W. High ignition efficiency, capable of quickly generating stable high temperatures, ensuring full ignition of the pellet fuel, reducing ignition delays and frequent stalling, and guaranteeing the continuous operation of the heating system.

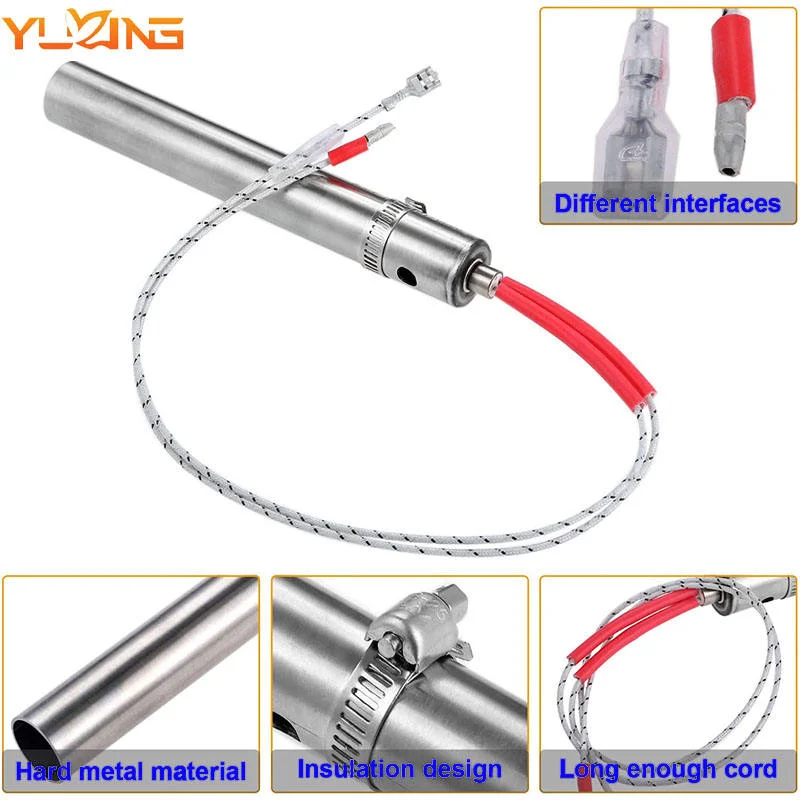

Durable Materials: Utilizes high-quality metal heating elements and insulated casings that are resistant to high temperatures and aging. They can withstand the long-term high-temperature environment inside the pellet stove, extending the service life and reducing the cost of frequent component replacements.

Safe and Reliable: Compliant with household heating equipment safety standards, with excellent insulation performance, effectively preventing risks such as electric leakage and short circuits. This makes the use process more reassuring and provides a stable guarantee for winter heating in the family.

Toleranca moči
+5%, -10%
Toleranca odpornosti
+10%, -5%
Na voljo so napetosti
380V,240V, 220V,110V,36V,24V or 12V
Max delovna temp
870ºC(1600F)
Toleranca dolžine
± 2% or 3.2mm (1/8), whichever is greater.
Camber tolerance
1.7mm per meter (0.020” per foot).
Toleranca premera
Diameter at each end may vary +0.05mm -0.1mm (+.002″ -.004″)
Standard Unheated Area
5-10mm;
Internal thermocouple
type J or K;
Lokacija termoelementa
Disc End, Sheath, Center of Heater;
Izolacijska upornost (hladno)
≥ 500 MΩ;
Največji tok uhajanja (hladno)
≤ 0.5 mA;
Premer
from 3.0mm to 30mm;

Function:

1. Operating conditions: ambient temperature-20℃ ~ + 60℃, relative temperature <80%;2. Electrical strength: cold withstand voltage AC work 1500V 50Hz lasts for 1 min without breakdown phenomenon;3. Thermal insulation performance: AC 1000V 50Hz lasts for 1 min without breakdown phenomenon;4. Leakage current <0.5MA; Izolacijska upornost> 30MΩ;
Aplikacija
* Brizganje-Notranje ogrevanje šob* Sistemi vročega tekača-Ogrevanje kolektorjev* Embalažna industrija-Ogrevanje rezalnih palic* Embalažna industrija-Ogrevanje vročih žigov* Laboratoriji-Ogrevanje analitske opreme* Medicina:Dializa,sterilizacijo,Analizator krvi,Nebulator,Grelec za kri/tekočino,Temperaturna terapija* Telekomunikacije:Odledenitev,Grelec ohišja* Prevoz:Oljni/bločni grelec,Aiecraft grelniki posod za kavo,* Živilska storitev:Parniki,Pomivalni stroji,* Industrijski:Pakirna oprema,Luknjači,Vroči žig.
Ocena strank
Pakiranje & Dostava
Plastic bag & Carton box
Certificate
Profil podjetja
pogosta vprašanja
1. kdo smo mi?Sedež imamo v mestu Jiangsu, Kitajska, začetek od leta 2010, prodaja v Oceanijo(50.00%),Severna Amerika(30.00%),Južna Amerika(10.00%),Južna Evropa(10.00%). Skupaj jih je približno 11-50 ljudje v naši pisarni.2. kako lahko zagotovimo kakovost?Vedno predprodukcijski vzorec pred množično proizvodnjo;Vedno končni pregled pred pošiljanjem;3.kaj lahko kupite pri nas?Cartridge Heater/Cast-In Heater/Circulation Heater/Enginee Block Heater/Open Coil Heater, Finned Heater/Strip Heater/Heating Element4. zakaj bi morali kupovati pri nas ne pri drugih dobaviteljih?1.Več kot 40 let izkušenj
2.UL CE RoHS CQC ISO9001:2008
3.R&D ekipa
4.Navedite poročilo o preskusu
5.Support product design5. katere storitve lahko zagotovimo?Sprejeti pogoji dostave: FOB,CFR,CIF,EXW,DDU,Hitra dostava;Valuta sprejetega plačila:ameriški dolar,EUR,CNY;Sprejeta vrsta plačila: T/T,L/C,D/P D/A,MoneyGram,Kreditna kartica,PayPal,Western Union,Gotovina,Depozitni depozit;Govorjeni jezik:angleščina,kitajski,francosko
