China Manufacture Micro Electric Rod Cartridge Heat Element Pencil Heater
China Manufacture Micro Electric Rod Cartridge Heat Element Pencil Heater
Opis
Opis izdelka

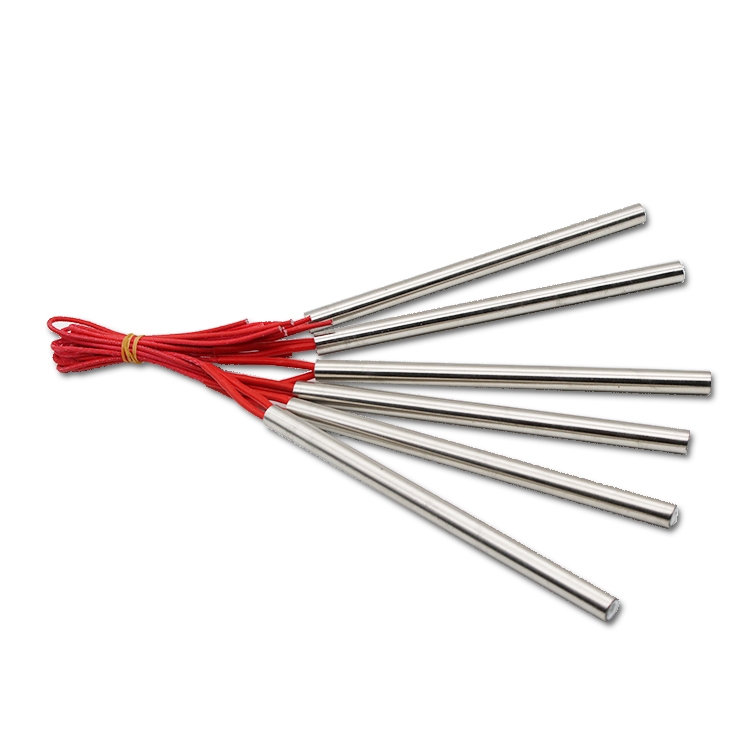

China Manufacture Micro Electric Rod Cartridge Heat Element Pencil Heater
Electric heater cartridge is made of MgO powder and MgO tube, keramični pokrovček, uporovna žica(NiCr2080), High temperature leads, seamless stainless steel sheath(304,321,316,800,840). usually in tube form, that is used in heating applications by way of insertion into metal blocks via a series of drilled holes.
Advantages and Datas
internal wiring: high temperature resistance, uniform heating, high thermal conductivity and difficult cable fracture.
external wiring: high temperature resistance, uniform heating and high thermal conductivity.
Odporna grelna žica | NiCr 80/20 žica |
Sheath | nerjaveče jeklo 304,321,316, Incoloy 800, Incoloy 840 |
Premer cevi | 3mm-30mm |
Dolžina cevi | min is 15mm max is 3meter. |
Toleranca moči | +5%, -10% |
Toleranca odpornosti | +10%, -5% |
Toleranca dolžine | ±1 mm |
Toleranca premera | ± 0.02mm |
Standardna hladna cona | 5-10mm |
Lokacija termoelementa | vrsta J / k |
Izolacijska upornost (hladno) | ≥ 500 MΩ |
Največji tok uhajanja (hladno) | ≤ 0.5 mA |

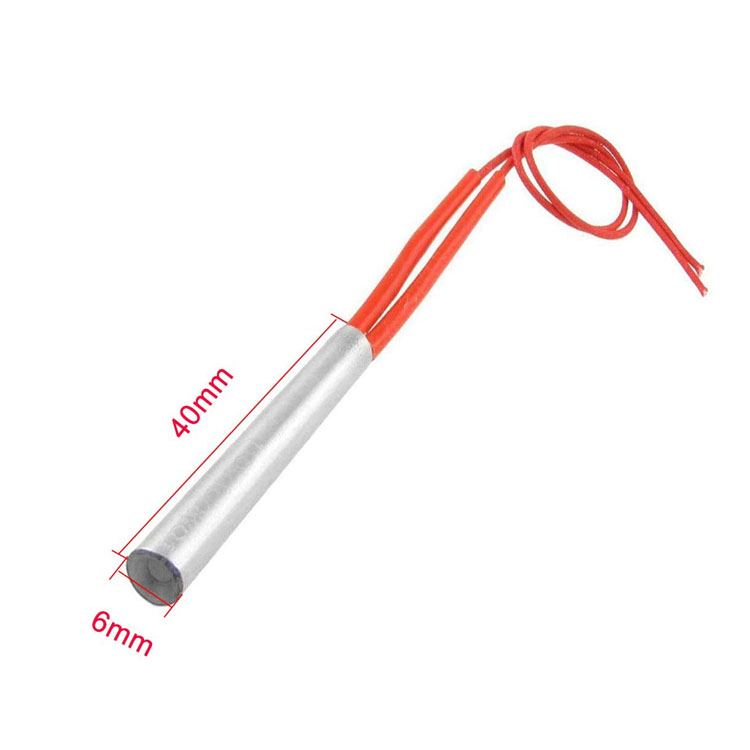

The size specifications of the picture are standard dimensions for reference only. Other size specifications can also be customized.
Ocena strank
Pakiranje & Dostava
Plastic bag & Carton box
Profil podjetja
- Taizhou YuLing electrical appliance co.,ltd is a heating element manufacurer in China,Provinca Jiangsu.
- Yuling is professional in heating industrial more than 40 leta,yuling can provide desinging andproducing heating elements.
- yuling has received ISO system certification and CE CQC UL ROHS product testing certification. Our range of products is primarily sold in the European and American markets.
- We employ stringent quality control measures to ensure the superior quality of our products, and implement impeccable Standard Operating Proceduresto enhance production efficiency, ultimately guaranteeing optimal benefits for our valued customers.
pogosta vprašanja
1. kdo smo mi?
Sedež imamo v mestu Jiangsu, Kitajska, začetek od leta 2010, prodaja v Oceanijo(50.00%),Severna Amerika(30.00%),Južna Amerika(10.00%),Južna Evropa(10.00%).
Skupaj jih je približno 11-50 people in our office.
2. kako lahko zagotovimo kakovost?
Vedno predprodukcijski vzorec pred množično proizvodnjo;
Vedno končni pregled pred pošiljanjem;
3.kaj lahko kupite pri nas?
Cartridge Heater/Cast-In Heater/Circulation Heater/Enginee Block Heater/Open Coil Heater, Finned Heater/Strip Heater/Heating Element;
4. zakaj bi morali kupovati pri nas ne pri drugih dobaviteljih?
1.Več kot 40 let izkušenj
2.UL CE RoHS CQC ISO9001:2008
3.R&D ekipa
4.Provide test report
5.Support product design
2.UL CE RoHS CQC ISO9001:2008
3.R&D ekipa
4.Provide test report
5.Support product design
5. katere storitve lahko zagotovimo?
Sprejeti pogoji dostave: FOB,CFR,CIF,EXW,DDU,Hitra dostava；
Valuta sprejetega plačila:ameriški dolar,EUR,CNY;
Sprejeta vrsta plačila: T/T,L/C,D/P D/A,Money Gram,Kreditna kartica,PayPal,Western Union,Gotovina,Depozitni depozit;
Govorjeni jezik:angleščina,kitajski,francosko
