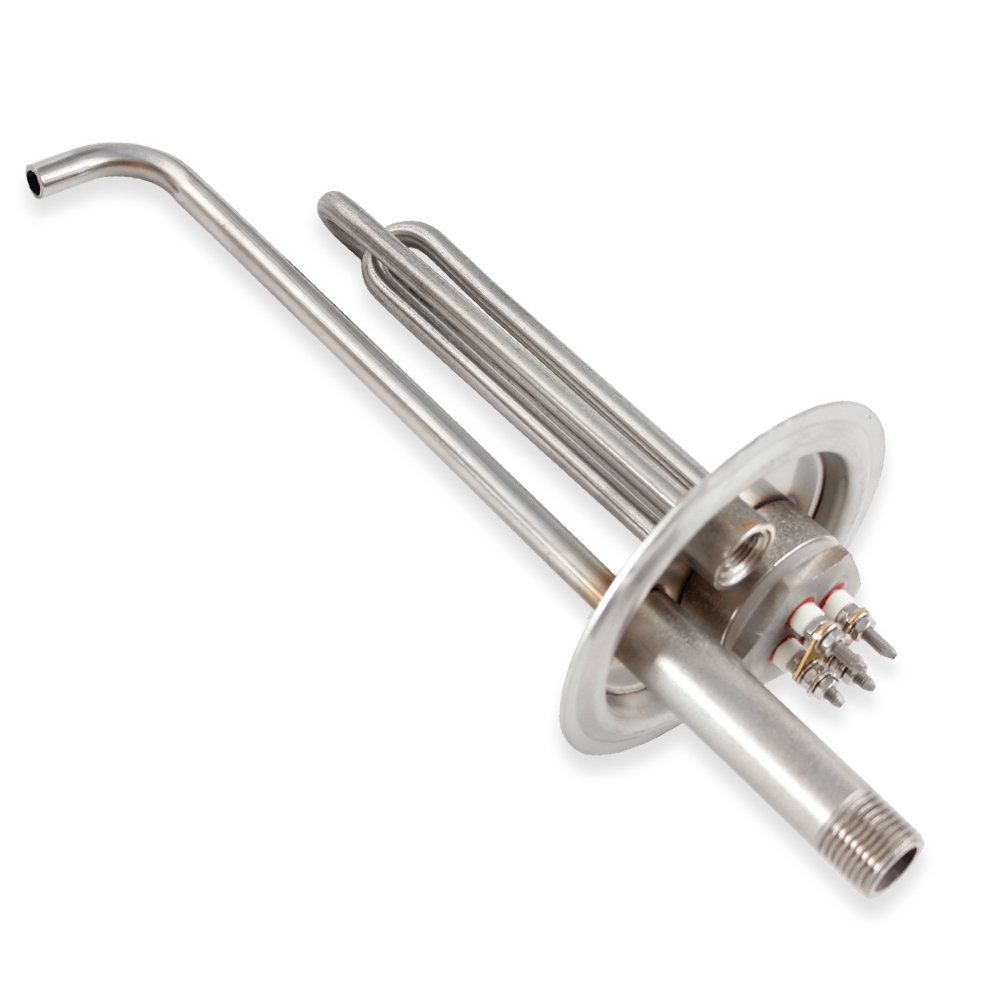

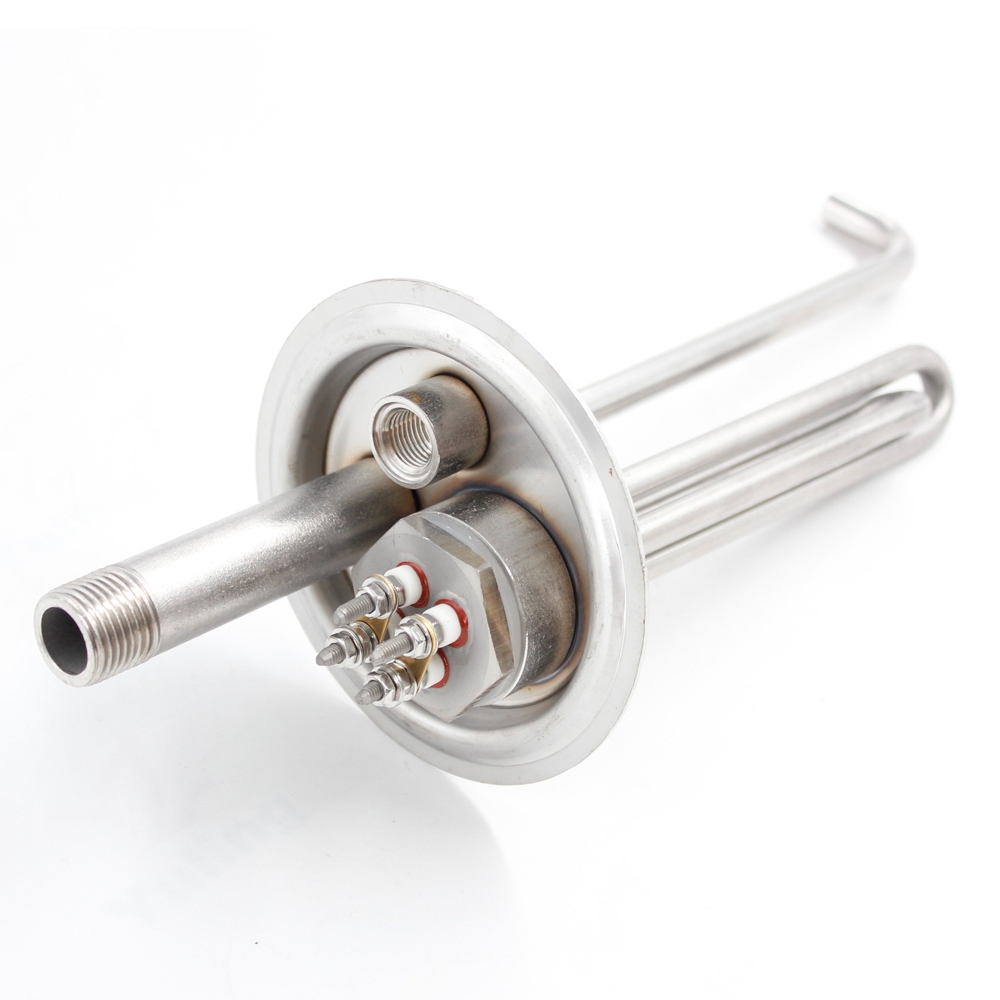

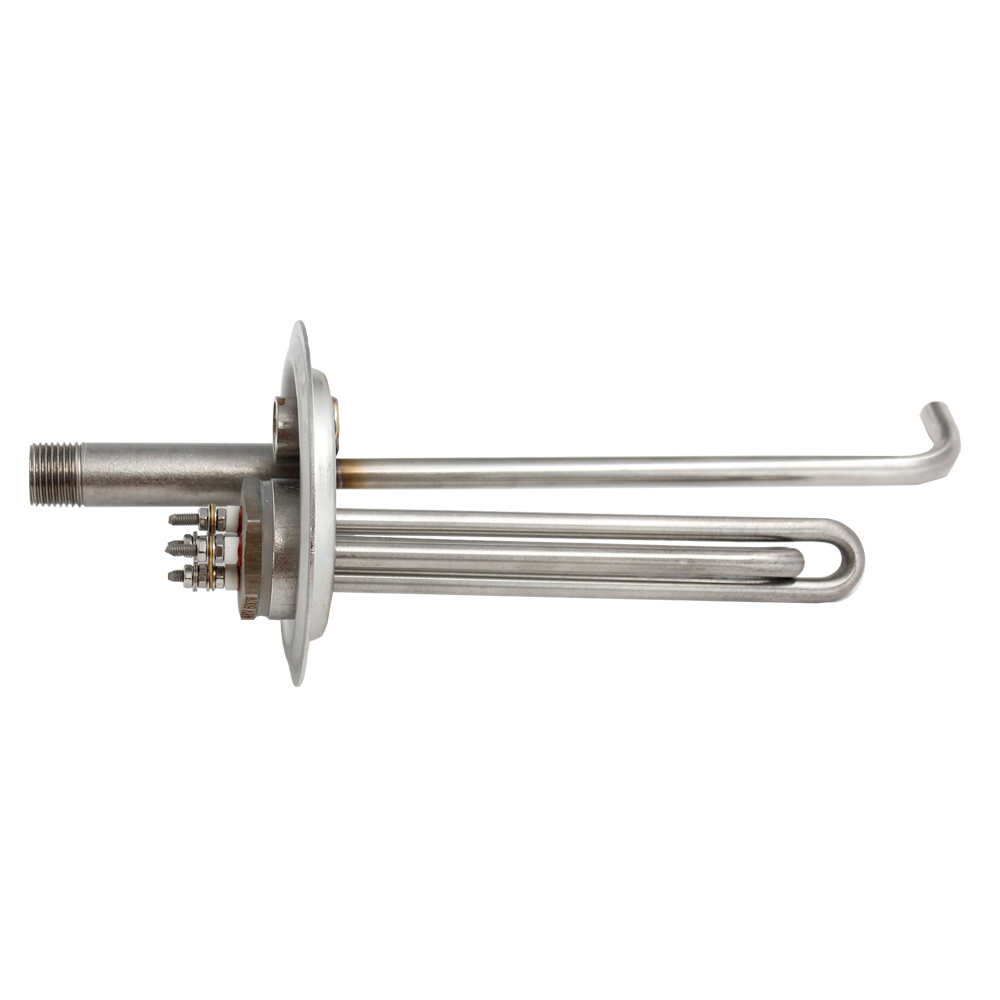

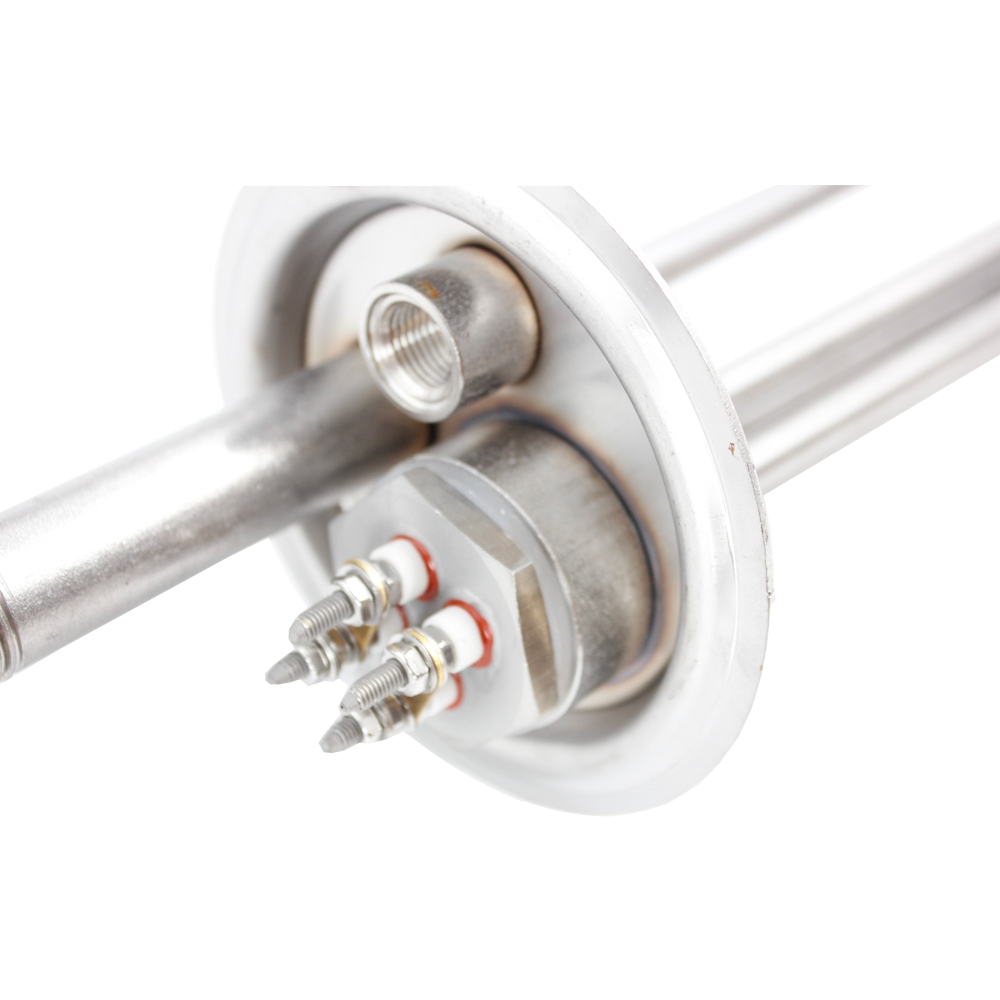

48V Element Immersion Dc Water Heater Heating Element With Thermostat
48V Element Immersion Dc Water Heater Heating Element With Thermostat
Opis
48V Element Immersion Dc Water Heater Heating Element With Thermostat
1. The heating elements can be used for both dc(solar PV , battery 12V/24V/36V/48V or custom)and AC electricity(110v/220v/380v or custom), according to customers’ requirements.
2. There are many types of terminals for wiring.
2. There are many types of terminals for wiring.
3.We fill the tube with high purity magnesium oxide powder for longer service life.
4.Custom the Flange size, sheath material, watt,voltage, immersion length, according to applications.
5.Explosion-proof & temperature control features also can be provided, if required.
6. The heating elements are CE,ATEX, CQC,ISO9001,ROHS,UL,CSA certified.Any request, please do not hesitate to let me know.
5.Explosion-proof & temperature control features also can be provided, if required.
6. The heating elements are CE,ATEX, CQC,ISO9001,ROHS,UL,CSA certified.Any request, please do not hesitate to let me know.
Product Features:
* The size and power all can be designed according to the working environment
* More safer than AC electric
* Environment protection and energy saving.
Specifikacija
Technical Parameter | |
Premer cevi | Φ6.8mm – φ20mm |
Tube Length | 200mm – 2000mm(prilagojeno) |
Thread/tri-clamp/Flange | 1”/1.25”/1.5″ or customized |
Length Tolerance | ±1.5% |
Napetost | 12V/24V/36V/48V/110v/220V/380V or Customized |
Moč | 300W/500W/1kw /1.5kw/3kw or customized |
Izolacijska upornost | ≥1000M |
Toleranca moči | +5% – 10% |
Leakage current | ≤0,5 mA |
Odporna žica | Ni80Cr20 or Cr25AI5 |
Materiali za plast | 304 Nerjavno jeklo, , 310 Nerjavno jeklo, 316 Nerjavno jeklo, Incoloy 800, Incoloy 840 |
Surface Treatment | Polishing, coating, plating |
How to order ?Pls provide this informations as follows:(example)1.Vottage :220/380V 2.Wattage :6KW3.Length: 600MM4.Thread: 1 1/2″5. Material: Nerjaveče jeklo, AISI 321 304, SUS 316L
Aplikacija
This product is applicable to Standard American water heater element replacement, Predgretje vode, Taborniki, Motor homes, industrijski stroji in oprema, Izprazni vaš avtomobilski akumulator za prenosno toplo vodo kjer koli, Neposredna uporaba vetra in sonca ter mnoge, many more uses where heat or diversion loads are needed.
Podrobnosti produkta
Profil podjetja
- Taizhou Yuling Electrical Appliance Co., Ltd je proizvajalec ogrevalnih elementov na Kitajskem,Provinca Jiangsu.
- Yuling je profesionalen pri ogrevanju industrijske več kot 40 leta,yuling can provide desinging and producing heating elements.
- Yuling je prejel ISO sistemsko certificiranje in Kakšen cqc ul rohs Potrdilo o testiranju izdelkov. Naša ponudba izdelkov se prodaja predvsem na evropskem in ameriškem trgu.
- Za zagotovitev uporabimo stroge ukrepe za nadzor kakovosti Vrhunska kakovost naših izdelkov, in izvajajo brezhibne standardne operativne postopke za izboljšanje učinkovitosti proizvodnje, na koncu zagotavljajo optimalne koristi za naše cenjene stranke.
