High temperature 350W Ceramic Finned Air Strip Heater Element
High temperature 350W Ceramic Finned Air Strip Heater Element
Opis
High temperature 350W Ceramic Finned Air Strip Heater Element
Opis izdelka
Finned strip heaters are extremely efficient and dependable as a heat source for hundreds of industrial and commercial applications. They are used for both forced (mounted in a duct) and natural convection air heating (mounted at the bottom of cabinet type ovens). The finned strip heater’s basic design consists of a helically wound resistance coil placed in a specially designed ceramic insulator. The resistance coil ismechanically connected to the screw terminal for positive connection. Stainless steel rectangular tubing is used to house the heater assembly. All remaining voids are filled with high purity magnesium oxide to increase thermal conductivity and dielectric strength. Nickel-plated steel fins (stainless steel optional) are mounted to the rectangular tubing. The fins have been specially designed to provide maximum surface contact for good heat dissipation into the finned cross sections, thus resulting in rapid heat transfer to the air. Finned strip heaters are manufactured in a full line of standard sizes, electrical ratings and terminations, or can be made to your specifications.
Struktura
1. Seamless stainless steel sheath.
2. Post terminals.
3. Ceramic element support.
4. Element wire situated in close proximity to outside surface for maximum heat transfer and minimum internal temperature whilepreserving good dielectric qualities.
5. Magnesium oxide packing.
6. Aluminum fins offering maximum radiating surface and providing for rapid heat transfer to the surrounding medium. Stainlesssteel fins are available for corrosive environments.
7.Aluminum fins are standard.
Funkcija
1. Watt density: Maks 35 w/in²
2. Standard Strip width: 40mm
3. Standard Finn dimension: 65X35mm
4. Maximum Allowable Sheath Temperature:
5. Rust resistant Mild Steel 500℃ Stainless Steel 800℃
Specifikacija
Ime izdelka | Finned air strip heater |
Material za plast | SUS304 Stainless Steel |
Insulation material | Ceramic/Mica |
Na voljo so napetosti | 110v, 220v, 230v, 240v, 380V, 480V, according to your requirement |
Moč | Available in a wide range of wattages |
Standard strip width | 38mm |
Standard strip thickness | 11mm |
Standard fin dimension | 51mmx35mm |
Mounting tabs | Available mounting tabs with holes, slots or without tabs |
Terminations Type | Off set terminations, Parallel terminals, terminal at each end or lead wires available |

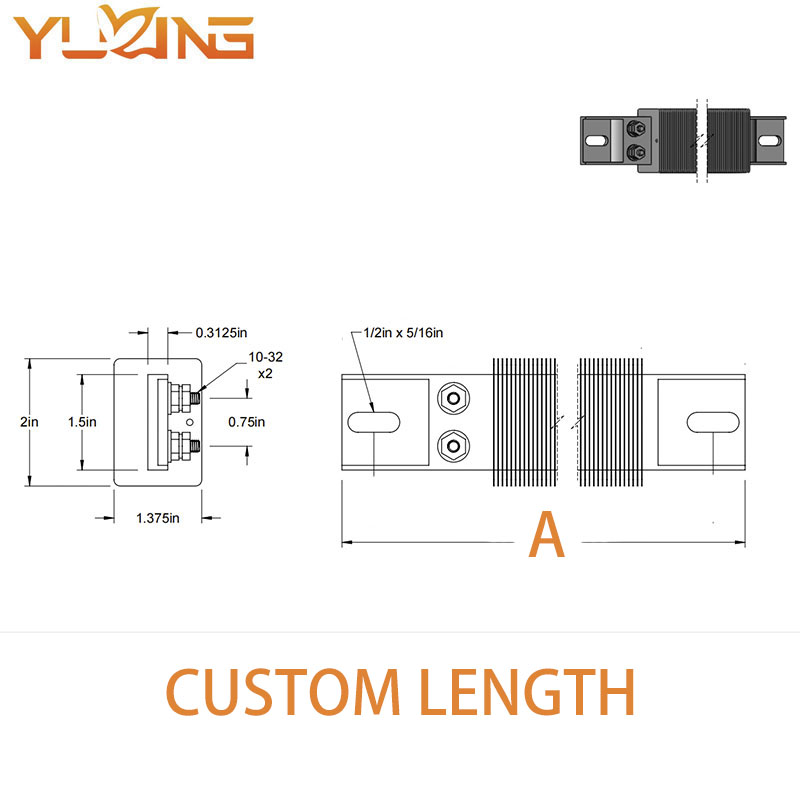

To Order | ||||
volt. | Vati | Dimensions: mm(inch) | ||
A | B | C | ||
120V | 150 | 140(5.5) | 114(4.5) | 25.4(1) |
240V | 150 | 140(5.5) | 114(4.5) | 25.4(1) |
120V | 250 | 203(8) | 178(7) | 70(2.75) |
240V | 250 | 203(8) | 178(7) | 70(2.75) |
120V | 330 | 203(8) | 178(7) | 70(2.75) |
240V | 330 | 203(8) | 178(7) | 70(2.75) |
120V | 300 | 267(10.5) | 241(9.5) | 133(5.25) |
240V | 300 | 267(10.5) | 241(9.5) | 133(5.25) |
120V | 500 | 305(12) | 279(11) | 184(7.25) |
240V | 500 | 305(12) | 279(11) | 184(7.25) |
120V | 750 | 305(12) | 279(11) | 184(7.25) |
240V | 750 | 305(12) | 279(11) | 184(7.25) |
120V | 500 | 387(15.25) | 362(14.25) | 254(10) |
240V | 500 | 387(15.25) | 362(14.25) | 254(10) |
120V | 750 | 457(18) | 432(17) | 324(12.75) |
240V | 750 | 457(18) | 432(17) | 324(12.75) |
120V | 1250 | 457(18) | 432(17) | 324(12.75) |
240V | 1250 | 457(18) | 432(17) | 324(12.75) |
240V | 1000 | 603(23.75) | 578(22.75) | 470(18.5) |
240V | 2000 | 762(30) | 737(29) | 629(24.75) |
240V | 2500 | 908(35.75) | 883(34.75) | 775(30.5) |
Ko naročite, please note the specifications as following:
1. Drawings,if have
2. Moč,Napetost,oblika
3. Working temperature
4. Material requirement
5. Screw size,if have
6. Quantity
Our factory also support customize. Write to the follow Email to get more details about thefinned heating elements: [email protected]
Ocena strank

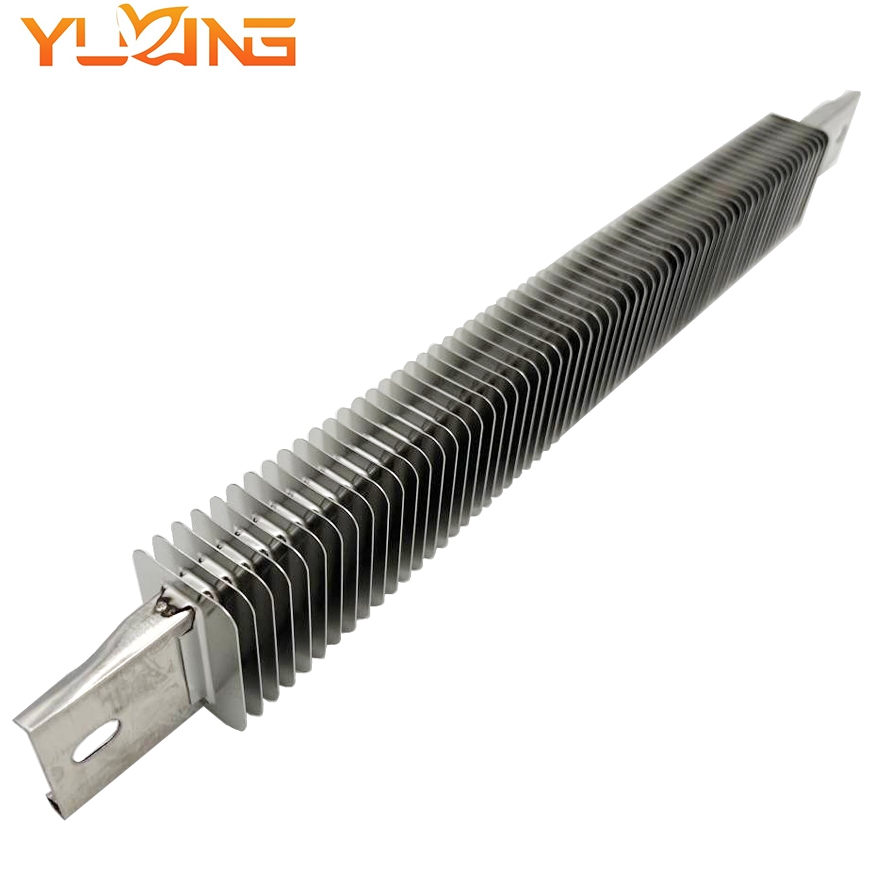

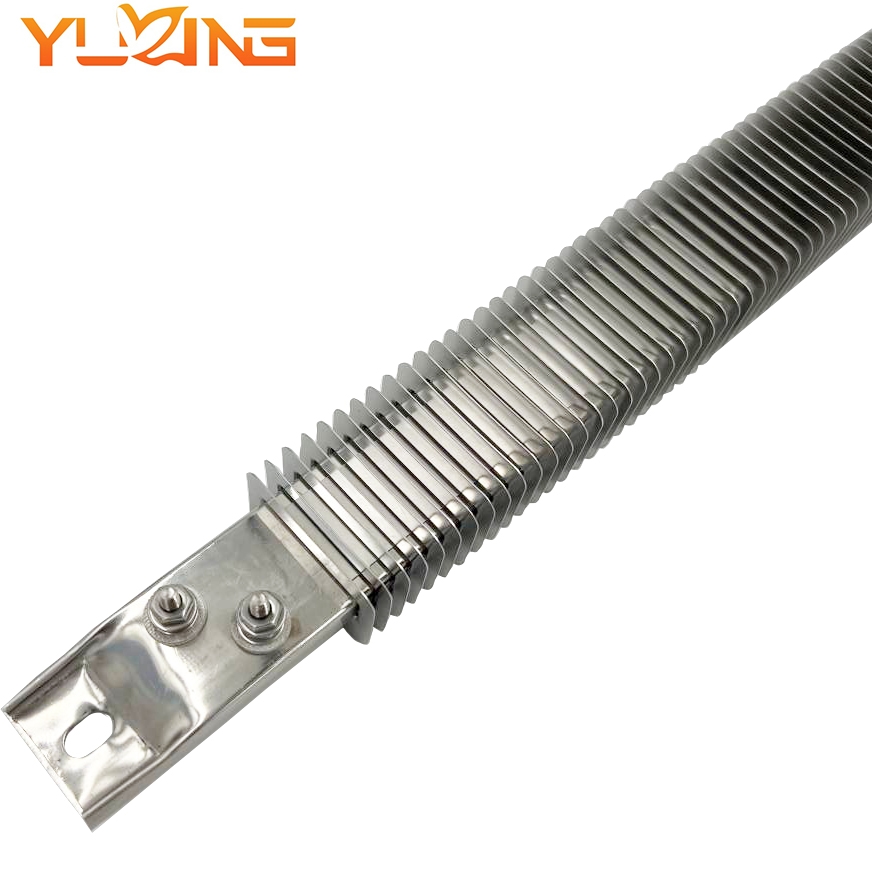

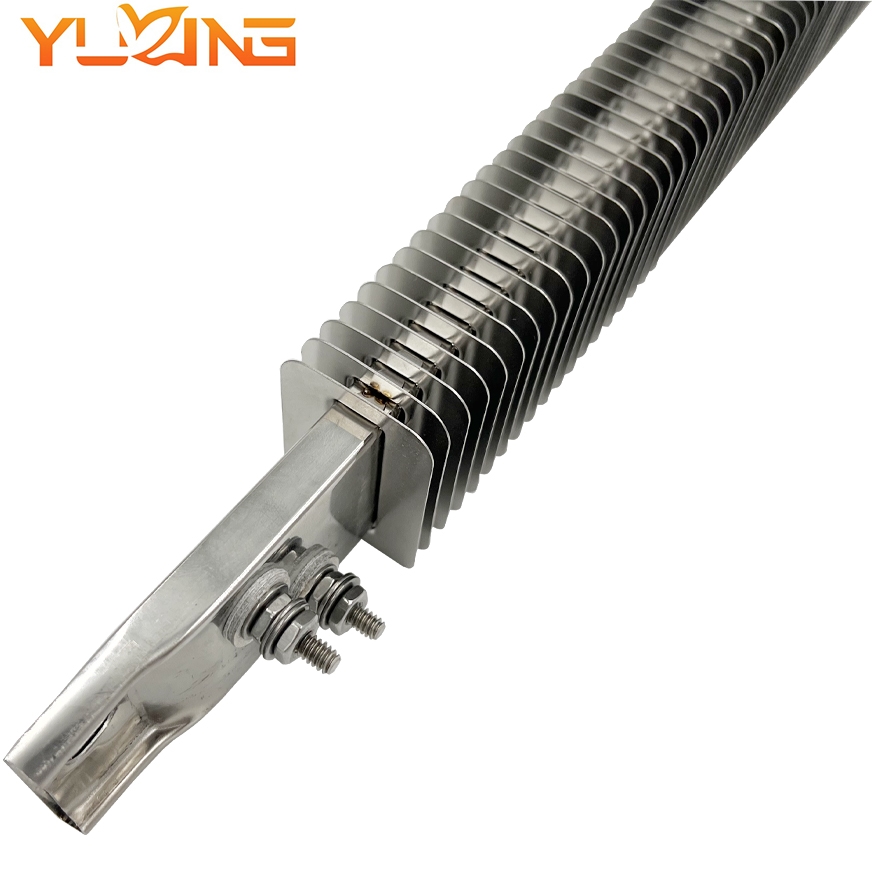

Podrobnosti Slike
Aplikacija
1. Dies and mold heating
2. Autoclaves
3. Thermoforming
4. Resistive Load Banks
5. Food warming
6. Freeze and moisture protection
7. Tank and platen heating
8. Embalaža
9. Ovens
Predstavitev podjetja
pogosta vprašanja
1. Kdo smo?
1.We have been doing foreign trade since 2010;
2.Sell to Domestic Market(50.00%), Severna Amerika(30.00%), Jugovzhodna Azija(10.00%), Zahodna Evropa(10.00%);
3. We have 500m² of office and 2500m² of workshop.
2. Kako lahko zagotovimo kakovost?
1.Izdelujemo v strogem skladu s standardom vodenja kakovosti;
2.Delavnico pregledamo enkrat 2 ure;
3.Potrdite podrobnosti vzorca s stranko za vsako naročilo.
3. Kaj lahko kupite od nas?
1.Električna naprava (Takojšnji grelec, Rebrasti grelec, Grelni element pečice, Obtočni grelec);
2.Podobni izdelki;
3.If there are other needs, we also can help customers to purchase.
4. Zakaj bi morali kupiti pri nas ne od drugih dobaviteljev?
1.Več kot 40 leta’ heating element industrial experience;2.UL(E501501)/CE/RoHS/CQC ISO9001:2008;
3.R&D tim in Laboratorij;
4.Povezovanje industrije in trgovine je zelo koristno za nabavo strank;
5.Izdelke v garancijskem roku bomo zamenjali brezplačno.
