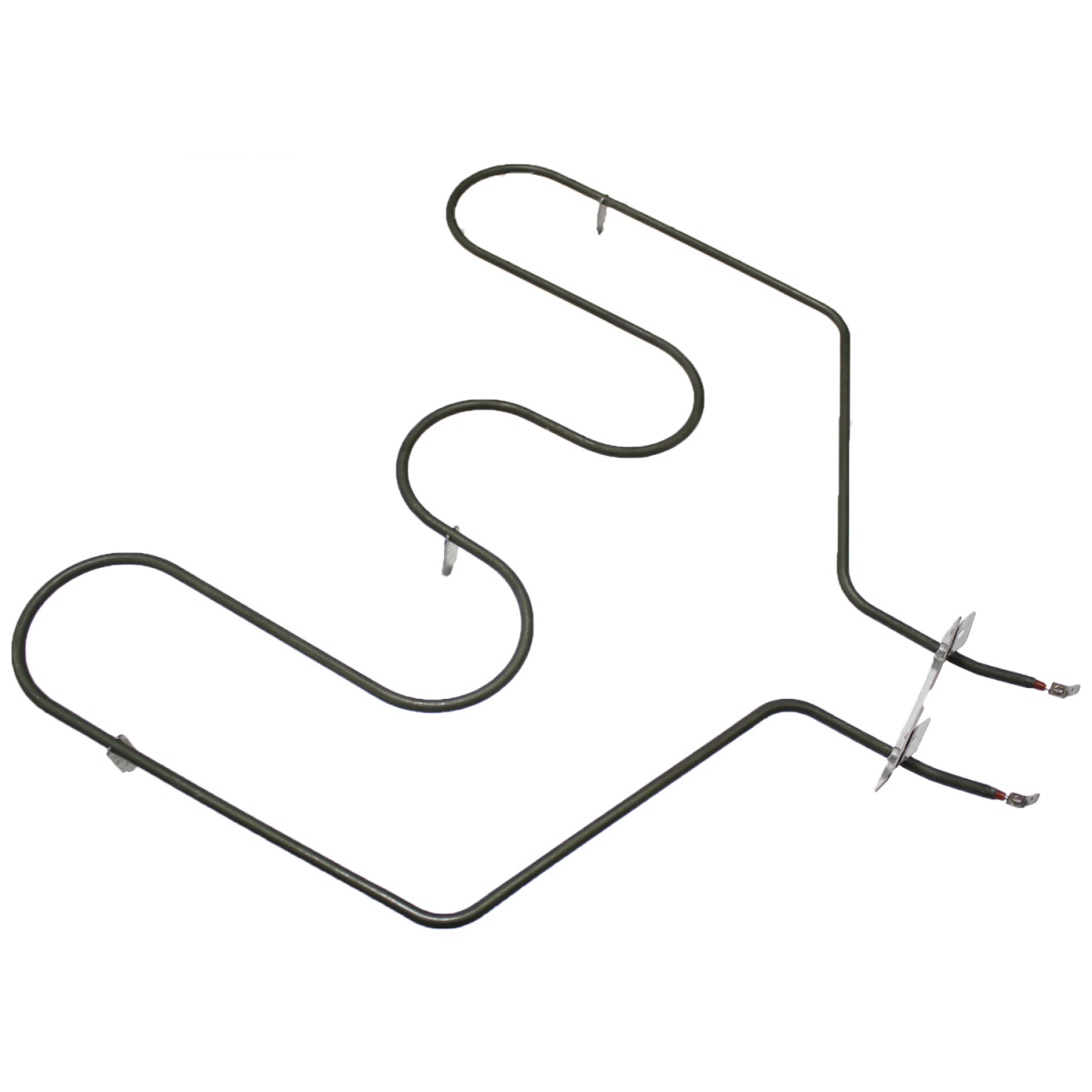

Pizza Oven Elements WB44T10011 Replacement Parts for Lincan Oven Cooking Heating Element
Oven Cooking Heating Element is high-quality and reliable heating elements, designed for compatibility with select GE oven models.
Описание

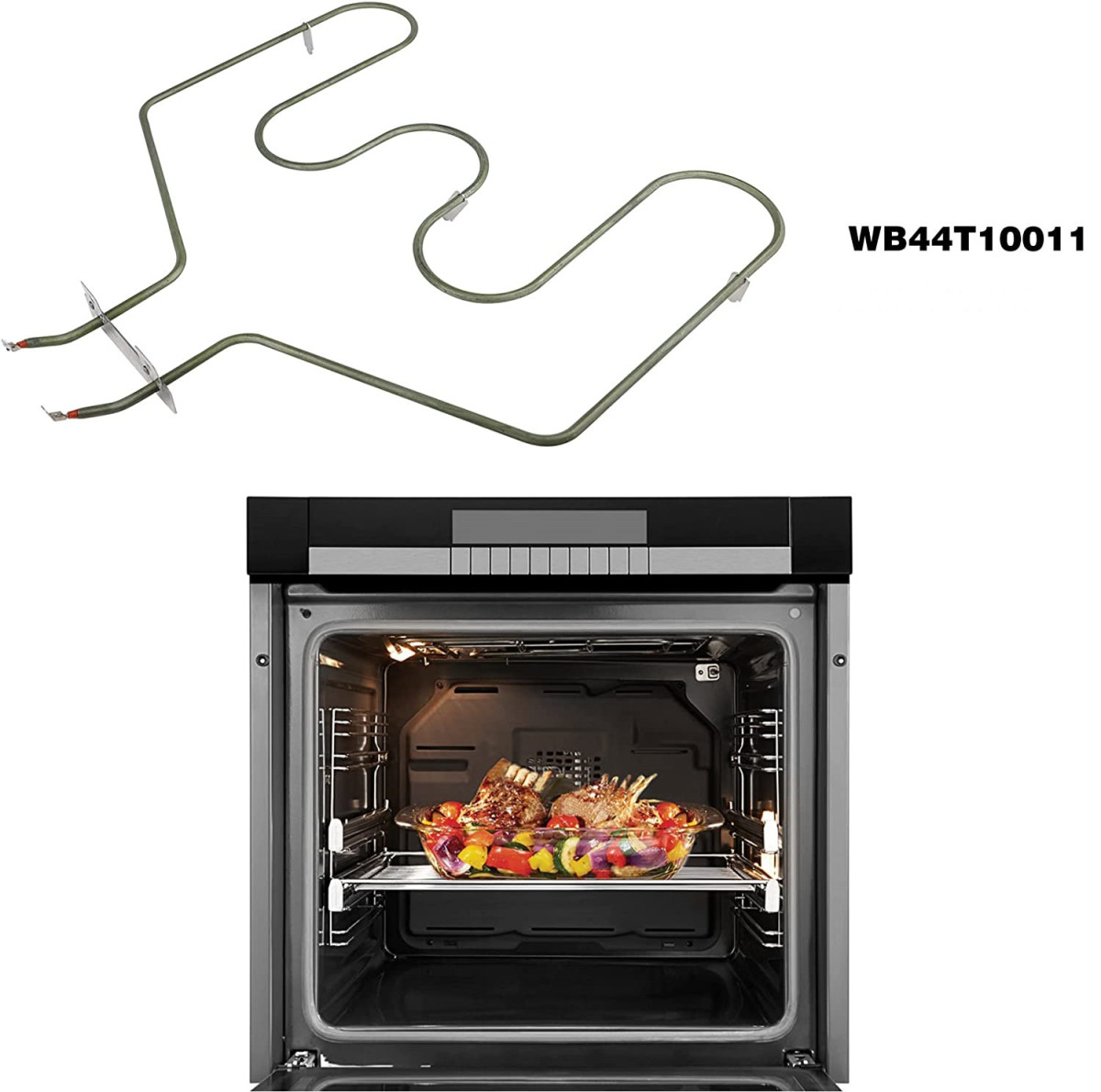

WB44T10011 Oven Range Heater Replacement Parts for Hotpoint Oven Cooking Heating Element
【PRODUCT SPECIFICATIONS】— WB44T10011 Heating Element rated power is 3410 watts and the voltage is 220 вольты. It has 3 mounting legs. Terminals are male spade. The size is approximate width 20.20 x length 22.20 x height 2.20 дюймы. Mounting bracket has 2 holes on either end for mounting to back of range 2-7/8″ centers. The Length from Mounting Bracket to end of Element is about 16-1/2″. The length (bent at 30 degree angle) from Bracket to terminal end is about 2-1/2″.
【HIGHLIGHTS&FUNCTIONS】— The package includes 1 x WB44T10011 Range Oven Bake Element. It is made of high temperature resistant nickel stainless steel alloy, this material can be used for a long time. non OEM but quality equal to OEM requirements. Installed easy faster, saving you time and energy. If any of the following occurs, replace Wb44t10011 Heating Element for Stove in time: ★There is little to no heat when baking; ★The element will not heat; ★The element is worn or corroded.
【HIGHLIGHTS&FUNCTIONS】— The package includes 1 x WB44T10011 Range Oven Bake Element. It is made of high temperature resistant nickel stainless steel alloy, this material can be used for a long time. non OEM but quality equal to OEM requirements. Installed easy faster, saving you time and energy. If any of the following occurs, replace Wb44t10011 Heating Element for Stove in time: ★There is little to no heat when baking; ★The element will not heat; ★The element is worn or corroded.
Details of Oven Cooking Heating Element
voltage | 220V3410W |
diameter | 6.6ММ |
material | СУС304 |
insulation resistance | ≥100MΩ |
Intension | 1800V/1min |
Leakage current | ≤0,5 мА |
Tolerance | +5%，-10% |
Shelf life | 3 годы |
Applications
Инструкция по установке
сопутствующие товары
Оценка клиентов
Информация о компании
Mark –
The functionality of this oven heating element is truly efficient! Excellent for all my baking endeavors
