5mm*30mm Probe Silicone PT100 RTD Sensor PT1000 Temperature Sensor 3wire PT Resistance Detector Thermometer
5mm*30mm Probe Silicone PT100 RTD Sensor PT1000 Temperature Sensor 3wire PT Resistance Detector Thermometer
Описание
5mm*30mm Probe Silicone PT100 RTD Sensor PT1000 Temperature Sensor 3wire PT Resistance Detector Thermometer
Описание продукта
What is A PT100 Sensor？PT 100 temperature sensors are the most common type of platinum resistance thermometer. Often resistance thermometers are generally called Pt100 sensors, even though in reality they may not be the RTD Pt100 type. Pt refers to that the sensor is made from Platinum (Pt). 100 refers to that at 0°C the sensor has a resistance of 100 ohms (Ω). A resistance thermometer is a type of temperature sensor. It consists of an element that uses resistance to measure temperature. Common names for Resistance Thermometers include RTDs (short for resistance temperature detector), RT, Pt100 RTD, or Pt1000. Pt100 probes can be protected in several ways and the temperature sensors are designed to get the best measurement of your process.
Спецификация
наименование товара | Stainless steel PT100 RTD Temperature Sensor |
Модель | ПТ100 (K/E/J/T/CU50 optional） |
Defalut Size | Ø45x 30mm |
Probe Material | 304 stainless steel（316 optional） |
Точность | Class B / Class A/ Class 2B, PT1000 Class 1/3 Б |
Probe Diameter | Ø2-Ø7mm |
Probe Length | 50мм, 100мм, 150мм, 200мм, 250мм, 300мм, 400мм, 500mm optional |

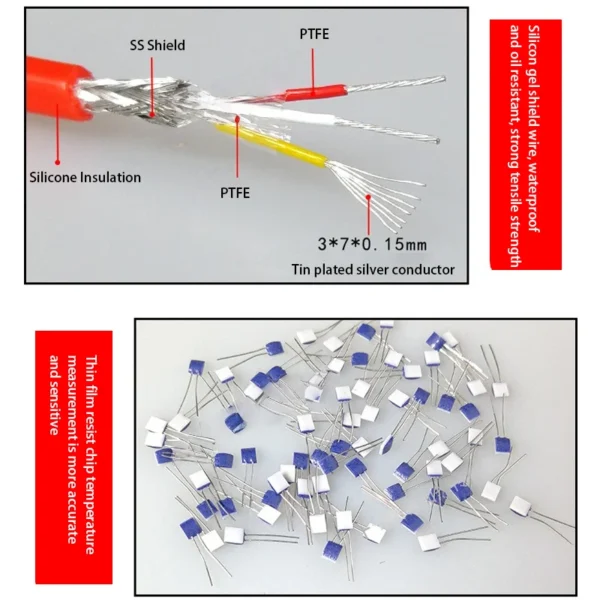

Wire Material | 3 Wire Teflon shield silver plated copper wire （Waterproof Silicone rubber/glass fiber optional） |
Wire Length | 0.5M/1M/2M/3M optional |
Temp range | PT100 -50℃-200℃CU50 -50℃-150℃K 0℃—600℃E 0℃—400℃ |
Terminals | U type Terminals , mini connectors |
Product Advantage:1)High Precision Temperature control probe2)Accurate measurement accuracy, high sensitivity, wide measurement range 0-500℃3)Accurate measurement (imported chip)4)быстрый ответ,anti-interference5)Good temperature resistance

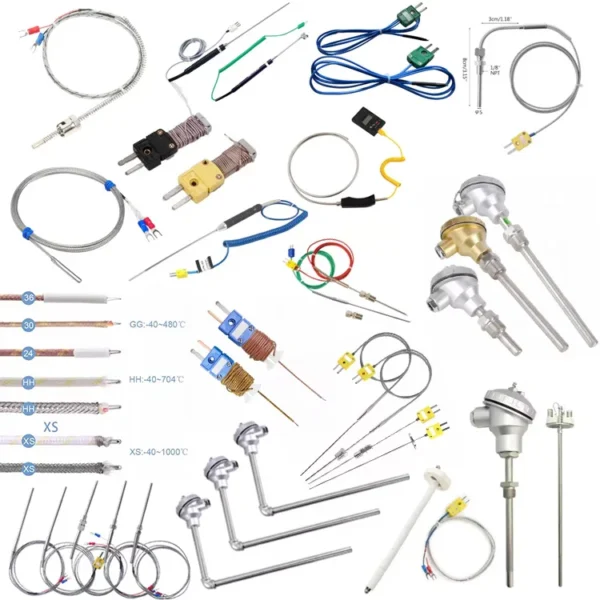

Different end user are avaliable
Other mode are avaliable, feel free to contact us
Упаковка & Доставка
Чтобы лучше обеспечить безопасность ваших товаров, профессиональный, экологически чистый, будут предоставлены удобные и эффективные услуги по упаковке.
