25W 30W 40W 50W Insulation Parallel Silicone Rubber Constant Power Heating Cable
The Silicone Rubber Constant Power Heating Cable is a durable and efficient heating solution that provides constant heat for pipes and vessels in various industries.
Descriere
Descriere produs
25W 30W 40W 50W Insulation Parallel Silicone Rubber Constant Power Heating Cable
Silicone rubber constant power heating cable is mainly used for antifreeze and heat preservation of pipelines and meters in various places. The maximum temperature is maintained at 150°C. Poate fi utilizat în aplicații cu gaz exploziv în prima și a doua zonă a fabricii. Constând din fire electrice din aliaj și material de izolare la temperaturi înalte din cauciuc siliconic, are caracteristicile generării rapide de căldură, temperatură constantă, eficiență termică ridicată și duritate bună.
Specificație

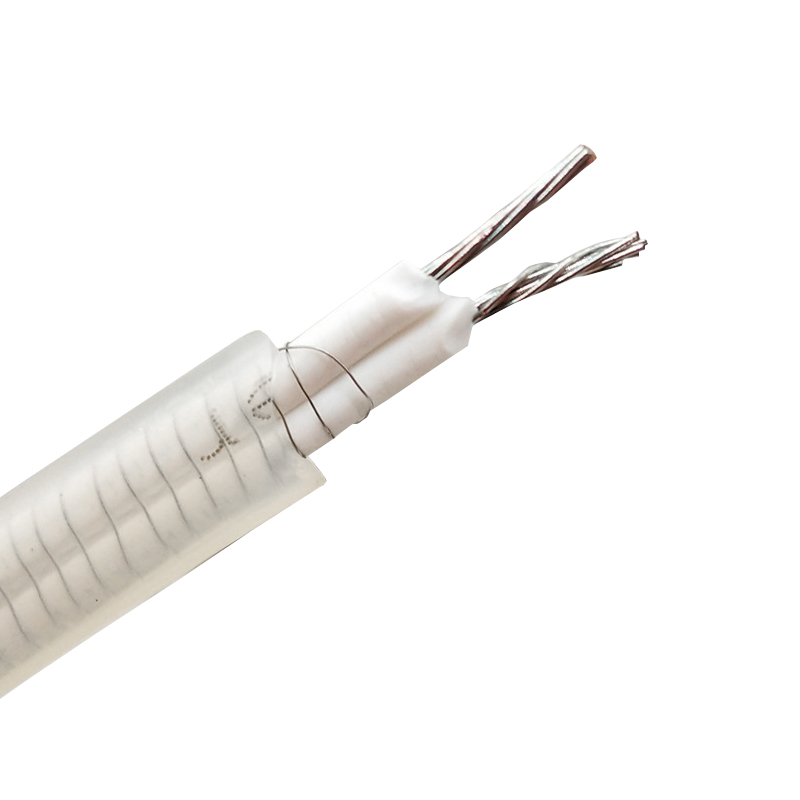

Structura
1.Firele de încălzire sunt două fire de cupru cositorit cu o secțiune de 0,75 m2.
2.Stratul izolat este realizat din cauciuc siliconic prin extrudare.
3.Spirala de sârmă din aliaj de înaltă rezistență și suprafața din cauciuc siliconic sunt centrul de încălzire.
4.Airtight cladding made by extrusion method.
Specificație
The voltage 36V-24V is determined by the user.(1)25W/M, withstand voltage AC3500V, use longest limit 65m.(2)40W/M, withstand voltage AC3500V, use longest limit 50m.(3)50W/M, withstand voltage AC3500V, use longest limit 44m.
Technical index sign
Output Power | 25W/M | 40W/M | 50W/M |
Voltaj | 220V | ||
Lead | 0.75 Square | ||
Wire Insulation Material | Silicon Rubber | ||
Heating Body | Cu-Ni Alloy Wire | Cu-Ni Alloy Wire | NiCr Alloy Wire |
Heating Coil External Insulation | Silicon Rubber | ||
Heating Body | 5mm*7mm | ||
Use Longest Limit | 65M | 50M | 44M |
Distance between Nodes | 0.5M | ||
Immergence Withstand Voltage | AC3500V | Insulation Resistance | ≥200mn |
Product Features
1. Good temperature resistance, with a working temperature of -60 to ±200℃2. Good heat conductivity and high thermal efficiency3. Reliable electrical property with quality guaranteed4. Flexible, easy to bend and install5. Good designability, with heating length, lead length, rated voltage and power determined by users.
Aplicație
Alimente & Catering (Chocolate machines – Refrigerating cases + blast chillers)Air conditioning (compressor crankcase heaters);Constructie (frost protection and heating for pipes, valves, snowmelt system gutters and ramps – Deicing and floor heating –Heated benches – Defrosting melt snow;Incubators, aquariums, terrariums, greenhouses, germinatoi (heating greenhouses, aquariums and terrariums)Medical (Celle mortuary)Industrial and commercial refrigeration (evaporators defrosting refrigerators for industrial, commercial and domestic – Pore and defrost doors, windows and cold storage – Ice cream machines);
