KW602 Type Tungsten-rhenium Rapid Thermocouple Dedicated Thermocouple Single Platinum-rhodium Double Platinum-rhodium
KW602 Type Tungsten-rhenium Rapid Thermocouple Dedicated Thermocouple Single Platinum-rhodium Double Platinum-rhodium
Descriere
KW602 Type Tungsten-rhenium Rapid Thermocouple Dedicated Thermocouple Single Platinum-rhodium Double Platinum-rhodium
Descriere produs

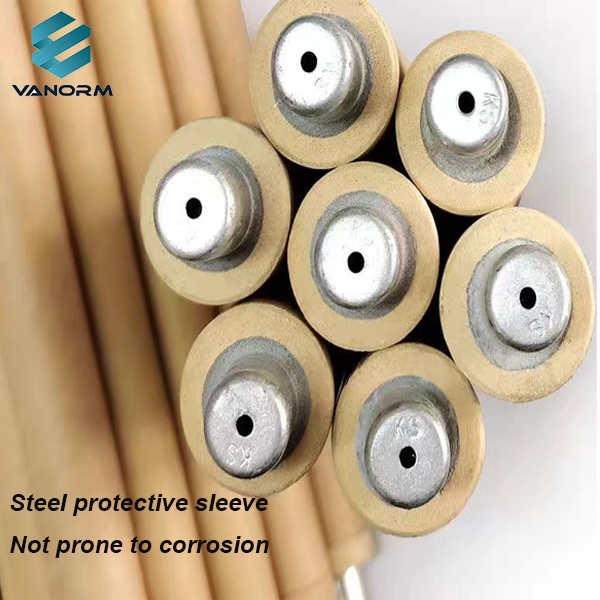

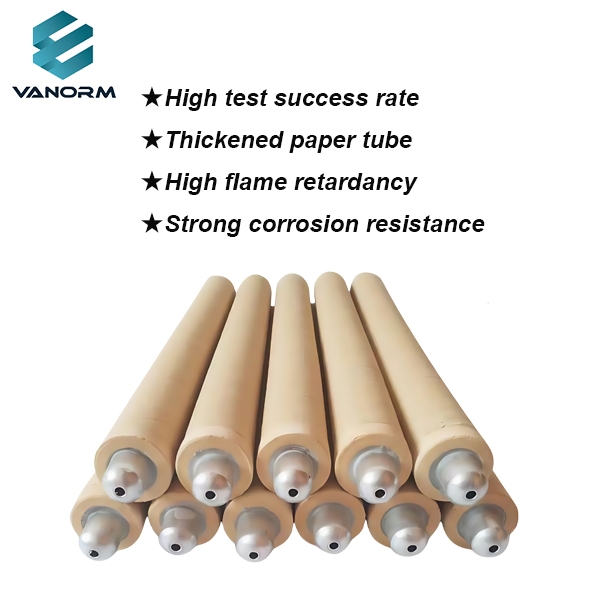

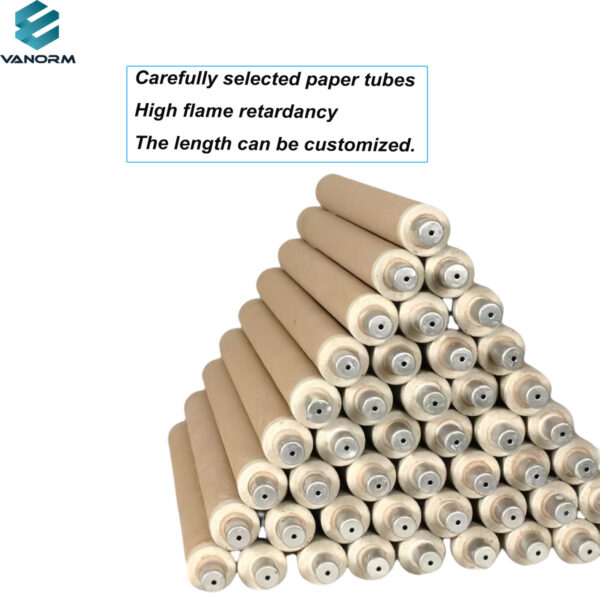

The structure of a rapid thermocouple mainly consists of a temperature-measuring thermocouple head and a large paper tube. The thermocouple head mainly consists of positive and negative thermocouple wires welded on the compensating wire. The compensating wire is embedded in the bracket, and the bracket is covered with a small paper tube. The thermocouple wires are supported and protected by quartz. The outermost part is equipped with a slag cap. All components are centrally installed in the mud head and bonded into a whole with fire-resistant fillers, and cannot be disassembled, so it is for single use.
Specificație
Various models meet different needs
Nume | Division number | Model | Operating temperature(℃） | Measure time |
tungsten baht 5- 26 | C | KC(KW5/26) | 1750 | 4-6s |
Tungsten baht 3- Tungsten zinc 25 | D | KD(KW3/25) | 1750 | |
Platinum-rhodium 10-platinum | S | K S | 1650 | |
Platinum-rhodium 13- platinum | R | KR | 1650 | |
Platinum-rhodium 30- Platinum chromium 6 | B | KB | 1750 |
Our Advantages
Aplicație
Application scope and working principle
Application scope: The rapid temperature measurement thermocouple is used to measure the temperature of molten steel and high-temperature molten metals. It is a disposable consumable thermocouple.
Working principle: Based on the thermoelectric effect of metals, the temperature of molten steel and highly molten metals is measured by the heat generated from the temperature difference between the two ends of the thermocouple. That is, when two conductors of different compositions are welded at both ends to form a circuit, the end directly measured is called the working end (hot end), and the end connected to the terminal is called the cold end. When there is a temperature difference between the hot end and the cold end, a thermal current will be generated in the circuit.
Ambalare & Livrare
Product Packaging Solutions
1.Our services include individual unit packaging with optional labeling to streamline operations and reduce time costs.
2.We provided fumigated solid wood pallets for heavy-duty exports and durable plywood crates for lighter loads, exempt from fumigation.
3.All solutions adhere to international trade standards, including certification for shipments to the US, Canada, and the EU, ensuring seamless customs clearance and pest control compliance.
2.We provided fumigated solid wood pallets for heavy-duty exports and durable plywood crates for lighter loads, exempt from fumigation.
3.All solutions adhere to international trade standards, including certification for shipments to the US, Canada, and the EU, ensuring seamless customs clearance and pest control compliance.
Our core competencies:
1.Vertical Manufacturing Expertise:The factory which we cooperated with operating professional production facilities, they maintain full control over Research and development. This vertical integration ensures stringent quality compliance (ISO 9001, CE,CQC,Rohs, UL) and enables competitive pricing without intermediaries.
2.Dual-Channel Procurement Solutions:Direct OEM Services, Customize heating systems and linear slot diffusers to meet project-specific airflow and thermal requirements.
3.Direct OEM Services: Customize heating systems and linear slot diffusers to meet project-specific airflow and thermal requirements.
4.Technical Partnership Model:Beyond transactional engagements, we provide ventilation system design and Energy efficiency audits for heating solutions,multilingual after-sales technical support.
5.Innovation and Sustainability:Investing 8% of annual revenue in R&D to be committed to creating better new products.
2.Dual-Channel Procurement Solutions:Direct OEM Services, Customize heating systems and linear slot diffusers to meet project-specific airflow and thermal requirements.
3.Direct OEM Services: Customize heating systems and linear slot diffusers to meet project-specific airflow and thermal requirements.
4.Technical Partnership Model:Beyond transactional engagements, we provide ventilation system design and Energy efficiency audits for heating solutions,multilingual after-sales technical support.
5.Innovation and Sustainability:Investing 8% of annual revenue in R&D to be committed to creating better new products.
Certificari
Our products had passed the CE CQC UL and Rohs certificated.
FAQ
1. Q:Cine suntem noi?
A:Our factory was established in 1996, and the foreign trade sales team was established in 20212.Q: Putem folosi propriul nostru expeditor?
A: Desigur. Le putem expedia.
3.Ce servicii putem oferi?Condiții de livrare acceptate: FOB,CFR,CIF,EXW,Livrare expres；Moneda de plată acceptată:USD,HKD,CNY;Tip de plată acceptat: T/T, PayPal, Bani gheata;Limbă vorbită: Engleză,chinez
4. Q: Cum plasez o comandă?
A: Please email your order to us and we will confirm with you.
Înainte de citare, am dori să confirmăm informațiile despre produs cu dvs, such as size and quantity. În orice caz, vă rugăm să ne contactați direct prin e-mail sau mesaj online.
5. Q: Cum garantam calitatea?
A: Urmăm cu strictețe standardele de management al calității producției; Verificați atelierul fiecare 2 ore; Și are propria echipă de cercetare și dezvoltare și laborator.
6. Q:Ce puteți cumpăra de la noi?
A: Electrical appliances and Ventilation Product; Daca mai sunt si alte nevoi, putem ajuta, de asemenea, clienții să cumpere.
