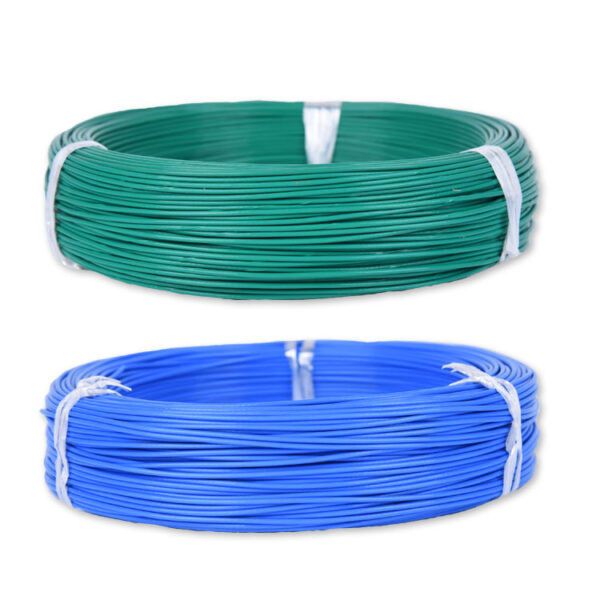

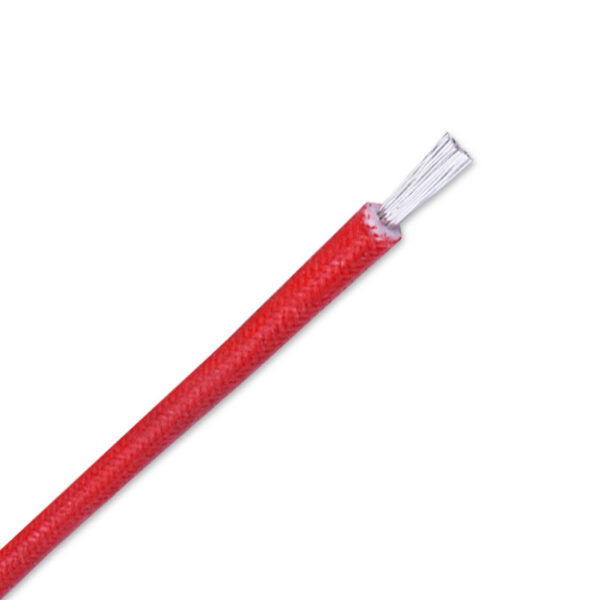

High Temperature Wire PTFE Insulation Cable Resistant Electronic Tin Silver Plated Copper Multi Core Line
High Temperature Wire PTFE Insulation Cable is a specialized wire that is designed to withstand high temperatures. It features insulation made of PTFE material that allows it to operate in temperatures up to 260°C without compromising performance.
Descriere
High Temperature Wire PTFE Insulation Cable
Culoare: Red, black, alb, yellow, blue, green, gray, brown, purple, orange, transparent.

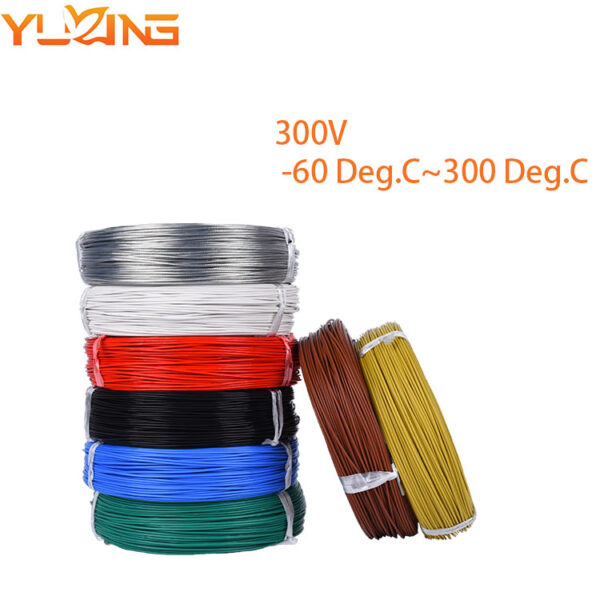

Temperature Range: -60 Deg.C ~ 200 Deg.
CRated Voltage: 300V
Feature: Waterproof, oil proof, radiation protection, flame retardant
Apply for: communication equipment and electronic instruments, connection cables for appliances, lighting equipment, electronicequipment, etc.
Note:1. Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid.2. Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
Ambalare:1x 5meters High Temperature Wire With PTFE Sheath
mărimea | Square | Conductor No | Outer Diameter | Insulation thickness |
YL3AWG | 25mm² | 49/0.8TS | 7.3mm | 0.68mm |
YL4AWG | 20mm² | 49/0.72TS | 6.6mm | 0.65mm |
YL5AWG | 16mm² | 133/0.39TS | 6mm | 0.6mm |
YL7AWG | 10mm² | 84/0.39TS | 5.6mm | 0.5mm |
YL10AWG | 6mm² | 37/0.45TS | 4.5mm | 0.45mm |
YL11AWG | 4mm² | 37/0.37TS | 3.5mm | 0.4mm |
YL12AWG | 3mm² | 37/0.32TS | 2.9mm | 0.35mm |
YL13AWG | 2.5mm² | 19/0.41TS | 2.78mm | 0.35mm |
YL14AWG | 2mm² | 19/0.37TS | 2.41mm | 0.3mm |
YL15AWG | 1.5mm² | 19/0.32TS | 2.25mm | 0.3mm |
YL16AWG | 1.2mm² | 19/0.28TS | 2.06mm | 0.25mm |
YL17AWG | 1mm² | 19/0.26TS | 1.8mm | 0.25mm |

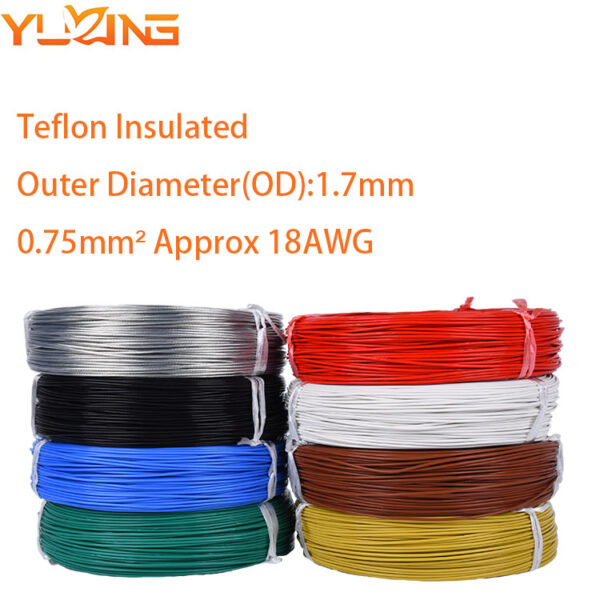

YL18AWG | 0.75mm² | 19/0.23TS | 1.7mm | 0.25mm |
YL20AWG | 0.5mm² | 19/0.18TS | 1.5mm | 0.25mm |
YL22AWG | 0.35mm² | 19/0.16TS | 1.3mm | 0.23mm |
YL23AWG | 0.3mm² | 7/0.23TS | 1.15mm | 0.23mm |
YL24AWG | 0.2mm² | 7/0.2TS | 1.1mm | 0.22mm |
YL26AWG | 0.12mm² | 7/0.15TS | 1mm | 0.2mm |
