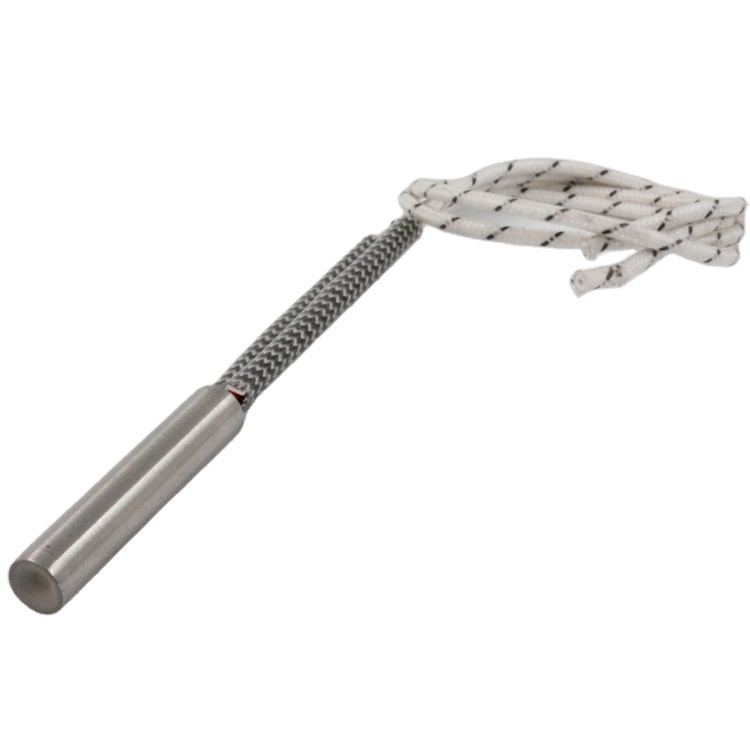

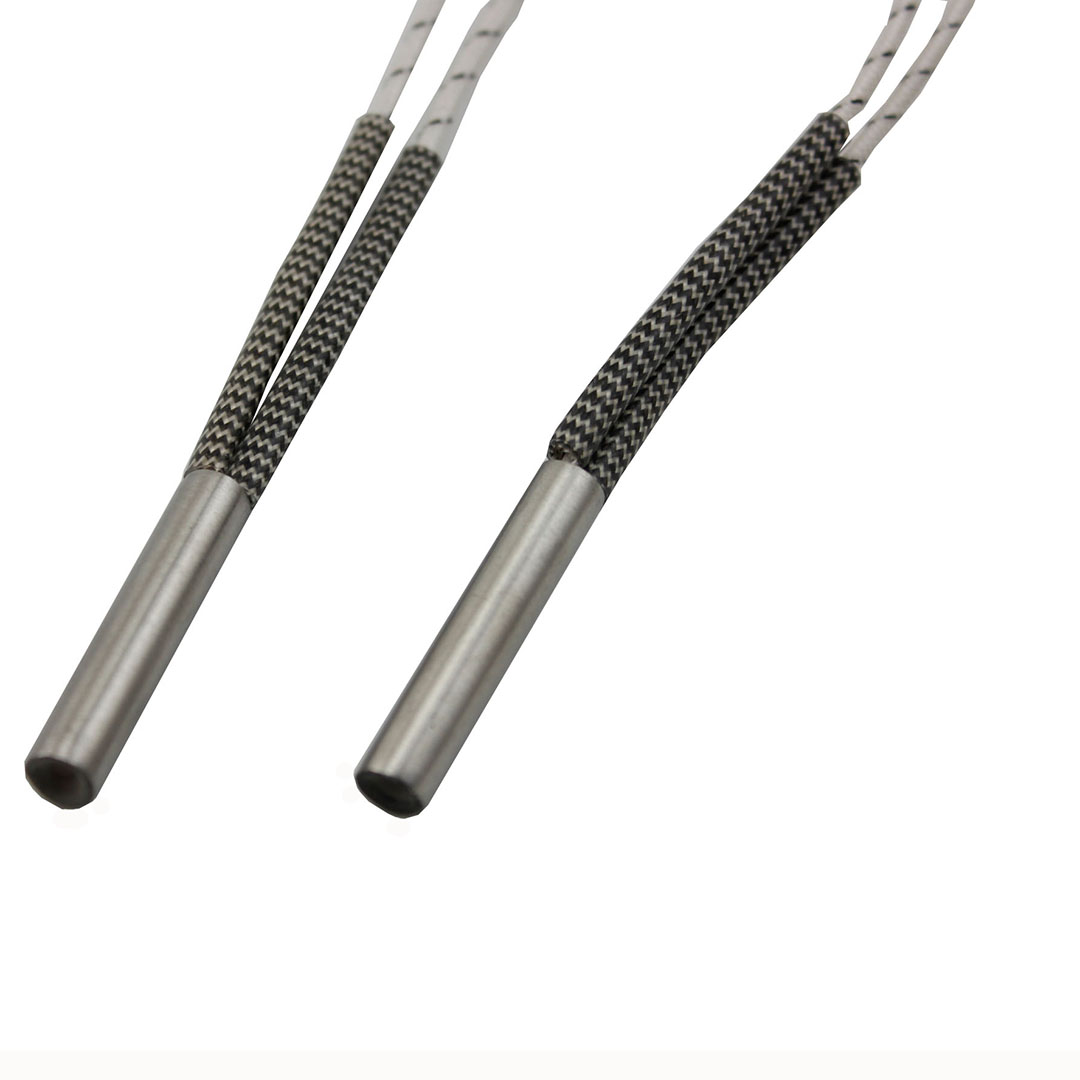

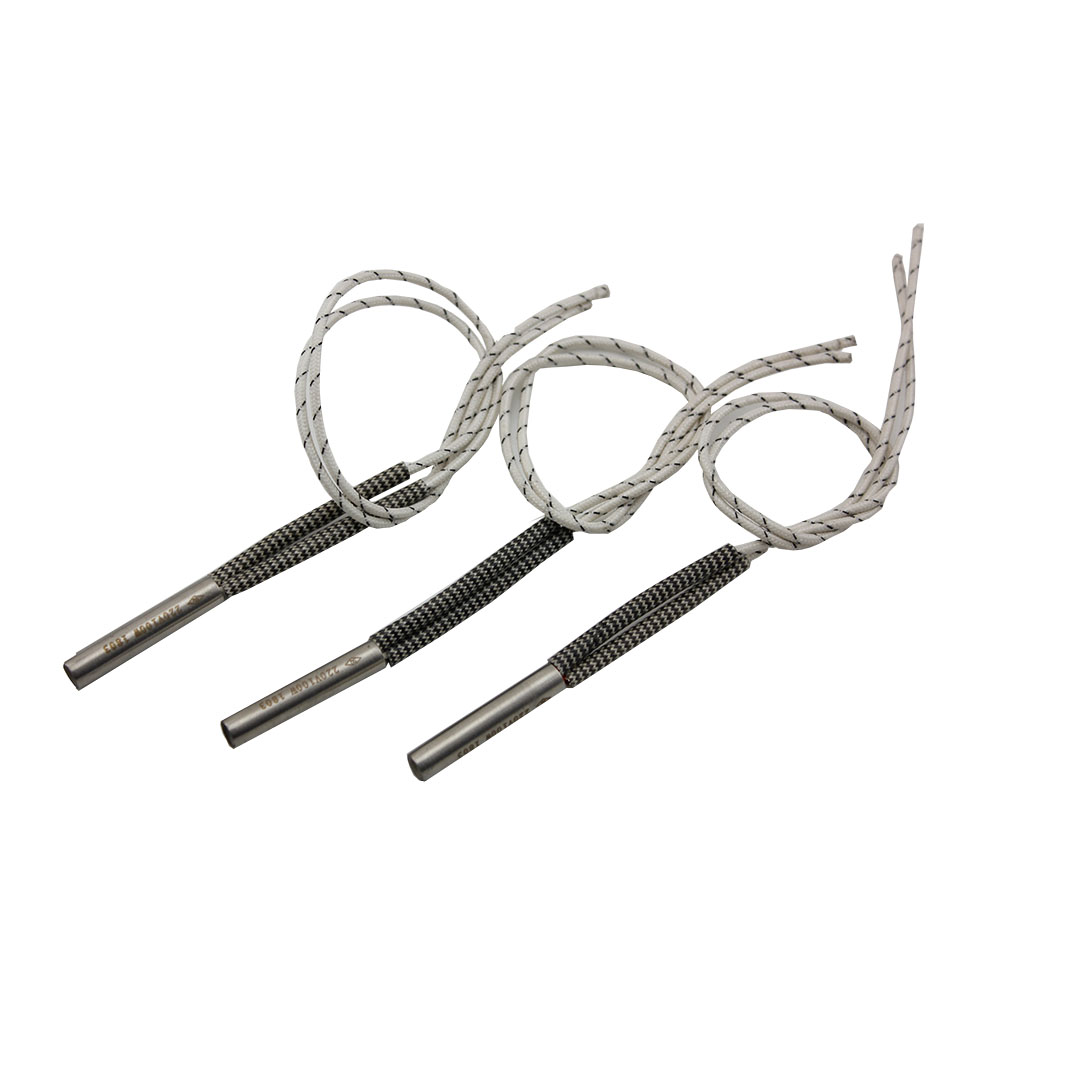

Pellet Stove Igniter Installation Ceramic Cartridge Heater
Ceramic Cartridge Heater is a robust and durable heating device used for heating solids or liquids in various industrial applications, providing precise temperature control.
Descriere
Pellet Stove Igniter Installation Ceramic Cartridge Heater
Descriere produs
Advantages
◆ Internal Wiring: high temperature resistance, uniform heating, high thermal conductivity and difficult cable fracture.
◆External Wiring: high temperature resistance, uniform heating and high thermal conductivity.
Date sheets
Sârmă de încălzire cu rezistență | NiCr 80/20 sârmă |
Toleranță la putere | +5%, -10% |
Toleranta la rezistenta | +10%, -5% |
Toleranta de lungime | ±1 mm |
Toleranta de diametru | -0.02mm |
Zona rece standard | 5-10mm |
Resiztenta izolarii (rece) | ≥ 500 MΩ |
Curent de scurgere maxim (rece) | ≤ 0.5 mA |
Locația termocuplului | tip J / K / Sârmă de împământare |
Product features:
1.All products are using SUS304/316 or INCOLOY840 seamless stainless steel tube.
2.Mgo holder and Mgo head with high temperature1800℃,sea water Mgo rod.3.Cr20Ni80 resistance wire and Nickel lead wire with 500℃.
Function:
1. Operating conditions: ambient temperature-20℃ ~ + 60℃, relative temperature <80%; 2. Electrical strength: cold withstand voltage AC work 1500V 50Hz lasts for 1 min without breakdown phenomenon; 3. Thermal insulation performance: AC 1000V 50Hz lasts for 1 min without breakdown phenomenon; 4. Leakage current <0.5MA; Resiztenta izolarii> 30MΩ;
