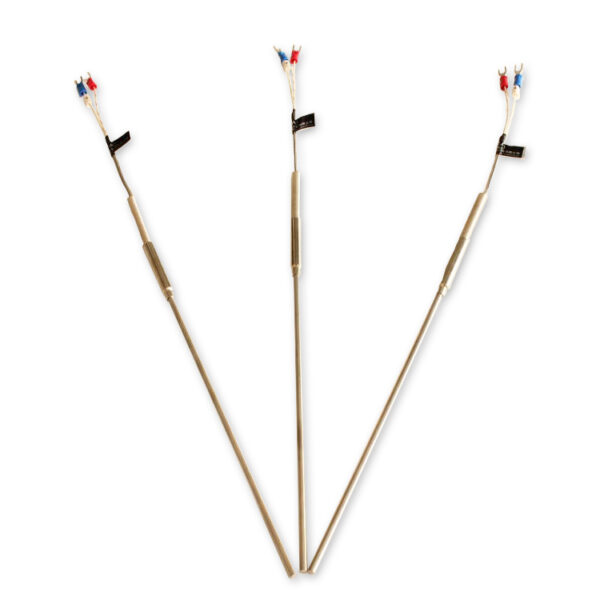

Sondă de îndoire Senzor de temperatură înaltă Termocuplu blindat k Tip Wrnk191
Highly durable armored thermocouple with strong protection against abrasion, corrosion, and impact.
Descriere
Sondă de îndoire Senzor de temperatură înaltă Termocuplu blindat k Tip Wrnk191
Descriere produs
Armored thermocouple can bend, high pressure resistance, heat resistance, heat fast response time and strong and durable wait for an advantage, it has to do with prefabricated thermocouple, heat resistance, as measure temperature sensor, and display instrument, instrument and electronic regulator usually used, at the same time also can be used as a prefabricated thermocouple, thermal resistance of thermal components. It can directly measure the temperature of liquid, vapor and gas media and solid surfacein various production processes from 0℃ to 1100℃(termocuplu), -200 ℃ to 500℃(thermal resistance).
Armored Thermocouple Features:①Less thermal response time, reduce the dynamic error; ②Flexible installation and use; ③Large measurement range; ④High mechanical strength, rezistență bună la presiune
Specificație
Numele produsului | Armored Thermocouple |
Tip | Default K type (can be used as PT100/J/T/E/N, etc.) |
Modelul produsului | WRNK-191 |
Interval de temperatură | 0-1100 grade |
Diametrul sondei | There are 0.5/1.5/2/2.3/2.5/3/4/5/6/8/10 diameters for selection |
Lungimea sondei | Customized according to customer requirements |
Lungimea plumbului | The default lead length is 1500mm under the price, which can be customized according to customer requirements |
Materialul sondei | SS321, SS316L, SS310S, SS446, incl600, incl800, etc. |
Aducere aminte: Cu cât diametrul sondei este mai mare, cu atât efectul de rezistență la temperatură este mai bun.
Cumpărătorii sunt rugați să furnizeze intervalul de măsurare real cât mai mult posibil, astfel încât să ne putem adapta la diametrul și materialul corespunzător.
New 304SUS high density braided sheath
High corrosion resistance and wear resistance, use long life and durability.
Stainless steel probe
Choose national standard 304 stainless steel raw material.
Be anti-interference
Teflon high temperature silver plating shield tetrafluoro material, with anti-interference ability.
Model | Absolvire | Temperature Range°C | Protective Tube Material | Mounting Fixtures |
WRPK-231 | S | 0~1300 | GH3039 | No fixture |
WRMK-231 | N | 0~1100 | GH3039 | |
0~800 | 1Cr18Ni9Ti | |||
WRNK-231 | K | 0~1100 | GH3030 | |
0~800 | 1Cr18Ni9Ti | |||
WREK-231 | E | 0~600 | 1Cr18Ni9Ti | |
WRCK-231 | T | 0~350 | 1Cr18Ni9Ti | |
WRFK-231 | J | 0~500 | 1Cr18Ni9Ti |
The thermal response time shall not exceed that specified in the following table :(s) | ||
Diametru(mm) | Termocuplu | |
Ungrounded | Grounded | |
2.0 | 0.5 | 0.4 |
3.0 | 1.2 | 0.6 |
4.0 | 2.5 | 0.8 |
5.0 | 4.5 | 1.2 |
6.0 | 6.0 | 2.0 |
8.0 | 8.0 | 4.0 |
Tip | Absolvire | Clasa de toleranta | |||
Ⅰ | Ⅱ | ||||
Valoarea toleranței | Domeniul de măsurare °C | Valoarea toleranței | Domeniul de măsurare °C | ||
WRN | K | ±1,5°C | -40~+375 | ±2,5°C | -40~+333 |
±0,004/t/ | 375~1000 | ±0,0075/t/ | 333~1200 | ||
WRM | N | ±1,5°C | -40~+375 | ±2,5°C | -40~+333 |
±0,004/t/ | 375~1000 | ±0,0075/t/ | 333-1200 | ||
WRE | E | ±1,5°C | -40~+375 | ±1,5°C | -40~+333 |
±0,004/t/ | 375~800 | ±0,004/t/ | 333~900 | ||
WRF | J | ±1,5°C | -40~+375 | ±1,5°C | -40~+333 |
±0,004/t/ | 375~750 | ±0,004/t/ | 333~750 | ||
WRC | T | ±1,5°C | -40~+125 | ±1°C | -40~+133 |
±0,004/t/ | 375~350 | ±0,0075/t/ | 133~350 |
