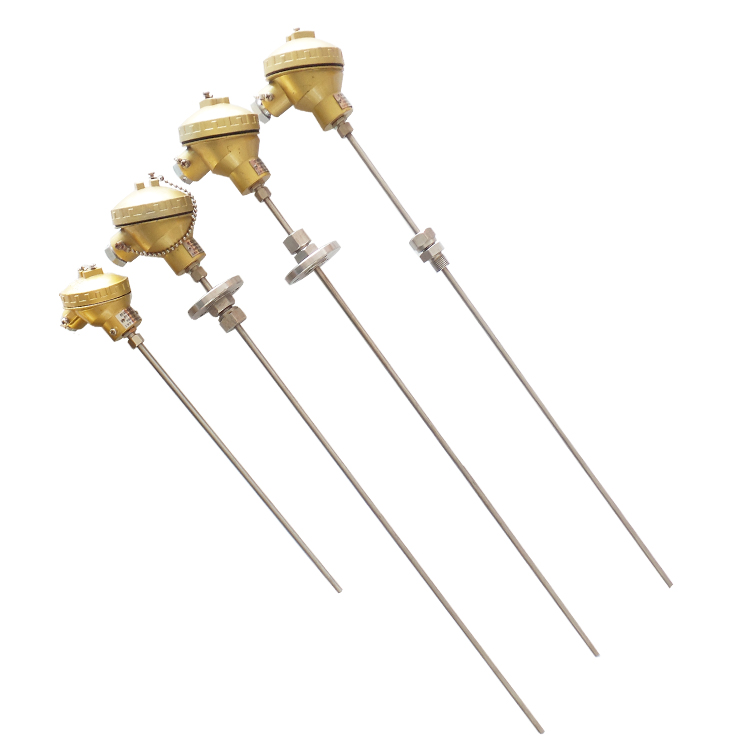

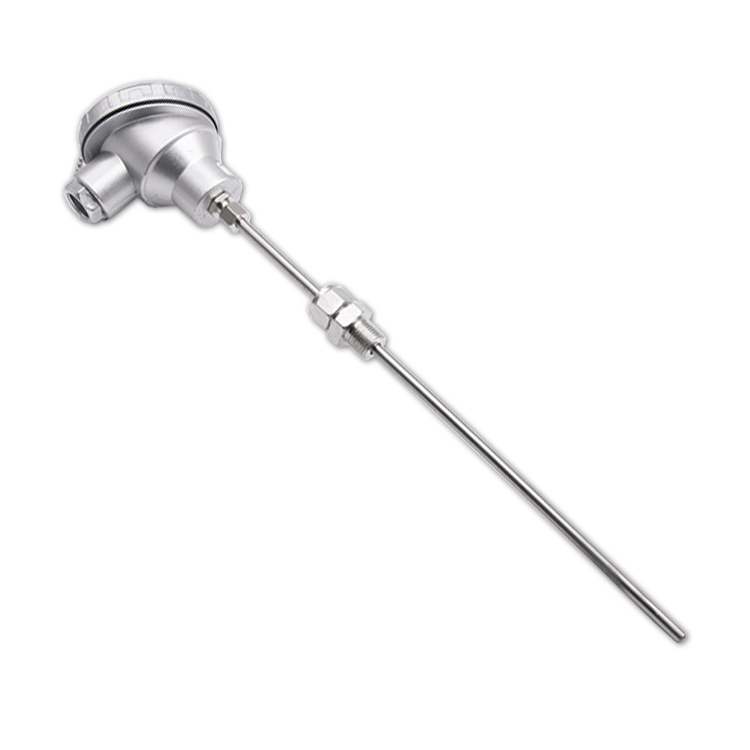

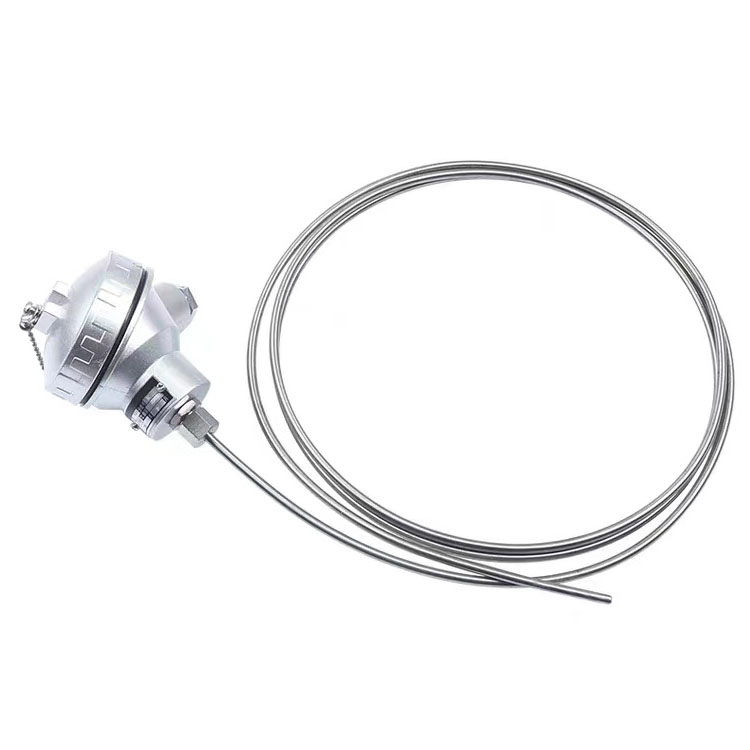

K-Type Thermocouple Probe Stainless Steel Sensor Armored Thermocouple
Armored Thermocouple is a temperature sensor consisting of a thermocouple enclosed in a protective metal sheath for use in harsh environments.
Descriere
Descriere produs
K-Type Thermocouple Probe Stainless Steel Sensor Armored Thermocouple
Armoured thermocouple can bend, high pressure resistance, heat resistance, heat fast response time and strong and durable wait for an advantage, it has to do with prefabricated thermocouple, heat resistance, as measure temperature sensor, and display instrument, instrument and electronic regulator usually used, at the same time also can be used as a prefabricated thermocouple, thermal resistance of thermal components. It can directly measure the temperature of liquid, vapor and gas media and solid surfacein various production processes from 0℃ to 1100℃(termocuplu), -200 ℃ to 500℃(thermal resistance).
Armored Thermocouple Features:①Less thermal response time, reduce the dynamic error; ②Flexible installation and use; ③Large measurement range; ④High mechanical strength, rezistență bună la presiune
Working PrincipleThe electrode of armored thermocouple consists of two different conductor materials. When there is a temperature difference between the measuring end and the reference end, a thermoelectric potential will be generated, and the working instrument will display the temperature value corresponding to the thermoelectric potential.
Specificație
Model | Absolvire | Temperature Range°C | Protective Tube Material | Mounting Fixtures |
WRPK-231 | S | 0~1300 | GH3039 | No fixture |
WRMK-231 | N | 0~1100 | GH3039 | |
0~800 | 1Cr18Ni9Ti | |||
WRNK-231 | K | 0~1100 | GH3030 | |
0~800 | 1Cr18Ni9Ti | |||
WREK-231 | E | 0~600 | 1Cr18Ni9Ti | |
WRCK-231 | T | 0~350 | 1Cr18Ni9Ti | |
WRFK-231 | J | 0~500 | 1Cr18Ni9Ti |
The thermal response time shall not exceed that specified in the following table :(s) | ||
Diametru(mm) | Termocuplu | |
Ungrounded | Grounded | |
2.0 | 0.5 | 0.4 |
3.0 | 1.2 | 0.6 |
4.0 | 2.5 | 0.8 |
5.0 | 4.5 | 1.2 |
6.0 | 6.0 | 2.0 |
8.0 | 8.0 | 4.0 |
Tip | Absolvire | Clasa de toleranta | |||
Ⅰ | Ⅱ | ||||
Valoarea toleranței | Domeniul de măsurare °C | Valoarea toleranței | Domeniul de măsurare °C | ||
WRN | K | ±1,5°C | -40~+375 | ±2,5°C | -40~+333 |
±0,004/t/ | 375~1000 | ±0,0075/t/ | 333~1200 | ||
WRM | N | ±1,5°C | -40~+375 | ±2,5°C | -40~+333 |
±0,004/t/ | 375~1000 | ±0,0075/t/ | 333-1200 | ||
WRE | E | ±1,5°C | -40~+375 | ±1,5°C | -40~+333 |
±0,004/t/ | 375~800 | ±0,004/t/ | 333~900 | ||
WRF | J | ±1,5°C | -40~+375 | ±1,5°C | -40~+333 |
±0,004/t/ | 375~750 | ±0,004/t/ | 333~750 | ||
WRC | T | ±1,5°C | -40~+125 | ±1°C | -40~+133 |
±0,004/t/ | 375~350 | ±0,0075/t/ | 133~350 |
Detalii Imagini
Cutie de joncțiune impermeabilă
Sudarea de precizie a filetului și tubului de protecție asigură etanșarea și impermeabilitatea, Performanță stabilă, durabil, durata de viata lunga
Interfață fără întreruperi
Interfață de sudare cu arc cu argon, sudare lină
304 țeavă din oțel inoxidabil
Rezistență la temperaturi ridicate, raspuns rapid, precizie ridicata, performanță mai stabilă
Etanșare de jos
technology
Introducerea tehnologiei germane de etanșare, rezistenta la socuri si rezistenta la presiune
