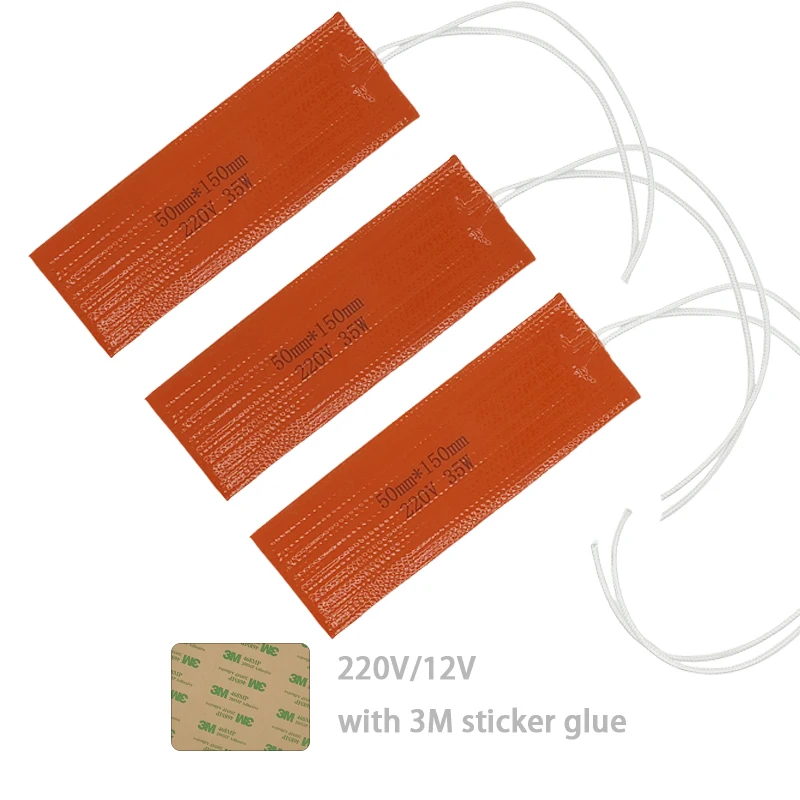

Soft 220V 35W Waterproof Square Silicone Pad Heating Pad Silicone Rubber Heater Plate Heating Element for Heating Applications
Soft 220V 35W Waterproof Square Silicone Pad Heating Pad Silicone Rubber Heater Plate Heating Element for Heating Applications
Descrição
Soft 220V 35W Waterproof Square Silicone Pad Heating Pad Silicone Rubber Heater Plate Heating Element for Heating Applications
Descrição do produto
The silicone rubber heaters have advantage of thinness, lightness and flexibility. It is made of nickel,chromium alloy wire and insulating materials,Quickly heating,high thermal efficiency and long use life.
Tensão | 12V a 480V | Grossura | 1.5mm/1mm/2MM/3MM |
Potência | 0.1-1.2C/CM2 | Insulation Ohm | More than 5MΩ |
Min Size | 10*10milímetros | Max Temperature | 250 degree |
Max Size | 2000*10000milímetros | Tensão do fio | 15N*15N |
Thermocouple Type | K/J/Without | ||
Controller | Digital | Anti-explosion | |
Plugue | US or custmized plug | European | British |
3M Back Adhesive | with | Without |

Material: Alloy heating wire + Silicone rubberColor: OrangeVoltage: 12V/220VPower: According to the Volatage.
Working Power: 0.4w/cm²
Aplicativo
Características:
The heat conduction is good, and the current density can reach 3W/cm2 when the working temperature doesnot exceed 240 °C.Working temperature is allowed to be less than 150 °C.Breakdown voltage up to 20~50KV/mm.Safe, waterproof and moisture-proof.
Observação:Please allow 1-5mm errors due to manual measurement.Due to light and screen setting difference, the color of the item may be slightly different from pictures.
How to make a order of silicone rubber heater:Tamanho, Potência & Voltages are available on request.
1)size.When looking for a heater quote, the size of silicone rubber heater is needed.like width,comprimento,thickness etc.2)VoltageThe right voltage is according to your application.low voltage:like 12V silicone rubber heater,24V silicone rubber heater.3)WattageThe right wattage is essential for silicone rubber heaters. The wattage needs to be matched to the heater area heated, it’sintended resistance, temperature, and materials. 4)Wire typeThe wire type is also according to your application, you can refer to the picture of silicone rubber

Controller
1.Knob controller
2.Digital controller

How to use
Adhesive

Another connect way
Spring Fastenter


★Freeze Protection and Condensation Prevention★Optical Equipment★Exhaust Gas Pre-heating for DPF Regeneration★Curing of Plastic Laminates★Photo Processing Equipment★Semiconductor Processing Equipment★3D Printers★Laboratory Research★LCD Displays★Medical Applications

Embalagem & Entrega



Perguntas frequentes
1. quem somos nós?Estamos baseados em Jiangsu, China, começar a partir de 2010, vender para a Oceania(50.00%),América do Norte(30.00%),América do Sul(10.00%),Sul da Europa(10.00%). Há um total de cerca de 11-50 pessoas em nosso escritório.2. como podemos garantir qualidade?Sempre uma amostra de pré-produção antes da produção em massa;Sempre inspeção final antes do envio;3.o que você pode comprar de nós?Cartridge Heater/Cast-In Heater/Circulation Heater/Enginee Block Heater/Open Coil Heater, Finned Heater/Strip Heater/Heating Element4. por que você deveria comprar de nós e não de outros fornecedores?1.Mais do que 40 anos de experiência
2.UL CE RoHS CQC ISO9001:2008
3.O R&Equipe D
4.Provide test report
5.Support product design5. quais serviços podemos fornecer?Termos de entrega aceitos: FOB,CFR,CIF,EXW,DDU,Entrega Expressa;Moeda de pagamento aceita:USD,EUR,CNY;Tipo de pagamento aceito: T/T,L/C,D/P D/A,MoneyGram,Cartão de crédito,PayPal,Western Union,Dinheiro,Garantia;Língua falada:Inglês,chinês,Francês
2.UL CE RoHS CQC ISO9001:2008
3.O R&Equipe D
4.Provide test report
5.Support product design5. quais serviços podemos fornecer?Termos de entrega aceitos: FOB,CFR,CIF,EXW,DDU,Entrega Expressa;Moeda de pagamento aceita:USD,EUR,CNY;Tipo de pagamento aceito: T/T,L/C,D/P D/A,MoneyGram,Cartão de crédito,PayPal,Western Union,Dinheiro,Garantia;Língua falada:Inglês,chinês,Francês
