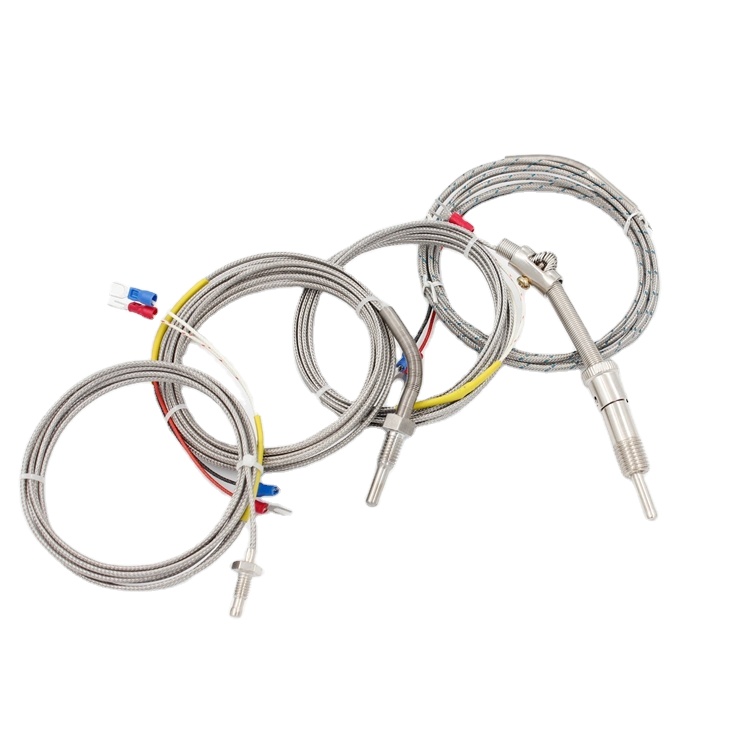

Stainless Steel Sheathed Dia 1.0mm 1.5mm 2.0mm 3.0mm K J type flexible thermocouple temperature probe temperature sensor
thermocouple temperature probe
Descrição
Stainless Steel Sheathed Dia 1.0mm 1.5mm 2.0mm 3.0mm K J type flexible thermocouple temperature probe temperature sensor
Descrição do produto
Stainless Steel Sheathed Dia 1.0mm 1.5mm 3.0mm 6.0mm Type K/j/n thermocouple temperature probe
Thermocouple is a sensor that measures temperature. It consists of two different types of metals, joined together at one end. When the junction of the two metals is heated or cooled, a voltage is created that can be correlated back to the temperature.Thermocouple alloys are commonly available as wire.
Nome | Stainless Steel Sheathed Dia 1.0mm 1.5mm 3.0mm 6.0mm Type K/j/n thermocouple temperature probe |
Tipo | K / E / N / J. / T / S / R / B |
Material | 304/316/316l/310s/3039/Inconel /Ceramic Tube |
Thermocouple head | 2 pin or 3 pin |
Diâmetro da sonda | 0.5mm to 10mm |
Comprimento da sonda | Personalizado |
Fio | 1/4” 5/16” M4 M5 M6 M8 M12 fixed or flexible |
Diâmetro do tubo | 3-25milímetros |
Product Paramenters
Categoria | Code | Temperature Range |
Ni-Cr-Si —- Ni-Si-Mg | N | 0°C ~ 1200°C |
Ni-Cr—-Ni-Si | K | 0°C ~ 1200°C |
Ni-Cr—-Cu-Ni | E | 0°C ~ 800°C |
Fe—-Cu-Ni | J. | 0°C ~ 750°C |
Cu—-Cu-Ni | T | 0°C ~ 350°C |
Pt-Rh13—-Pt | R | 0°C ~ 1600°C |
Pt-Rh10—-Pt | S | 0°C ~ 1600°C |
Pt-Rh30—-Pt-Rh6 | B | 0°C~ 1700°C |
Order Guide, Please Specify:
1) Probe Diameter, Length2) Material, Quantity3) Lead option and length or terminal configuration, sheath material4) thermocouple type **Better to provide drawings/pictures
