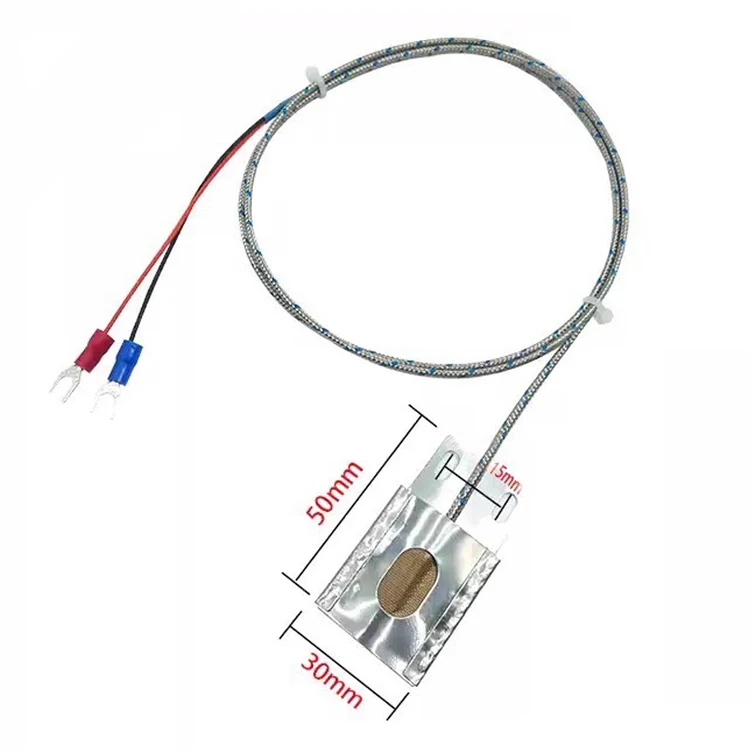

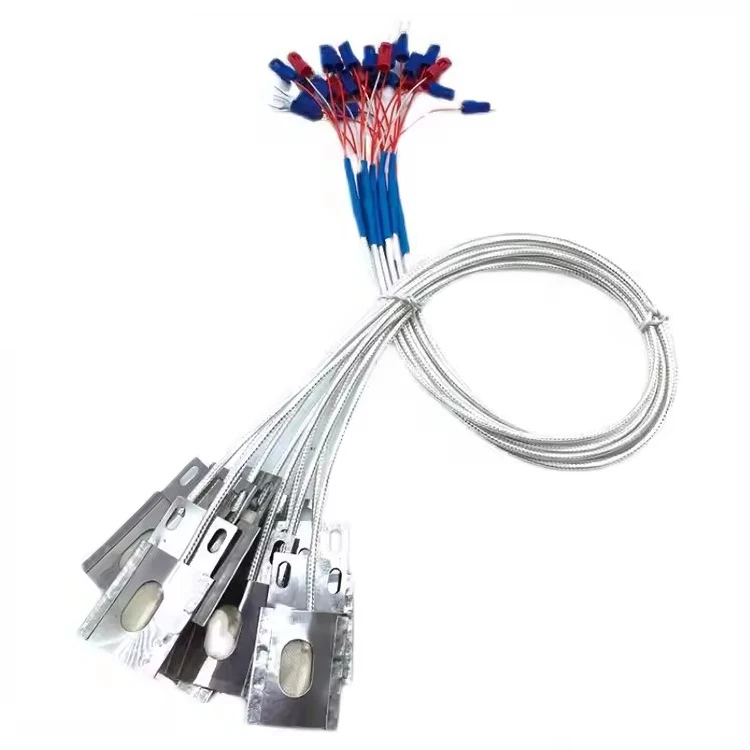

Adhesive Thermocouple Pt100 Ring Patch Platinum Thermal Resistance Temperature Sensor RTD Temperature Sensor SMD Chip
Adhesive Thermocouple Pt100 Ring Patch Platinum Thermal Resistance Temperature Sensor RTD Temperature Sensor SMD Chip
Descrição
Adhesive Thermocouple Pt100 Ring Patch Platinum Thermal Resistance Temperature Sensor RTD Temperature Sensor SMD Chip
Descrição do produto
What is A PT100 Sensor？PT 100 temperature sensors are the most common type of platinum resistance thermometer. Often resistance thermometers are generally called Pt100 sensors, even though in reality they may not be the RTD Pt100 type. Pt refers to that the sensor is made from Platinum (Pt). 100 refers to that at 0°C the sensor has a resistance of 100 ohms (Ω). A resistance thermometer is a type of temperature sensor. It consists of an element that uses resistance to measure temperature. Common names for Resistance Thermometers include RTDs (short for resistance temperature detector), RT, Pt100 RTD, or Pt1000. Pt100 probes can be protected in several ways and the temperature sensors are designed to get the best measurement of your process.
Especificação
Nome do Produto | Stainless steel PT100 RTD Temperature Sensor |
Modelo | PT100 (K/E/J/T/CU50 optional） |
Probe Material | 304 stainless steel（316 optional） |
Precisão | Classe B / Class A/ Class 2B, PT1000 Class 1/3 B |
Wire Material | 3 Wire Teflon shield silver plated copper wire （Waterproof Silicone rubber/glass fiber optional） |
Wire Length | 0.5M/1M/2M/3M optional |
Temp range | PT100 -50℃-200℃CU50 -50℃-150℃K 0℃—600℃E 0℃—400℃ |
Terminals | U type Terminals , mini connectors |
Product Advantage:1)High Precision Temperature control probe2)Accurate measurement accuracy, high sensitivity, wide measurement range 0-500℃3)Accurate measurement (imported chip)4)resposta rápida,anti-interference5)Boa resistência à temperatura
Different end user are avaliable
Other mode are avaliable, feel free to contact us
Embalagem & Entrega
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
