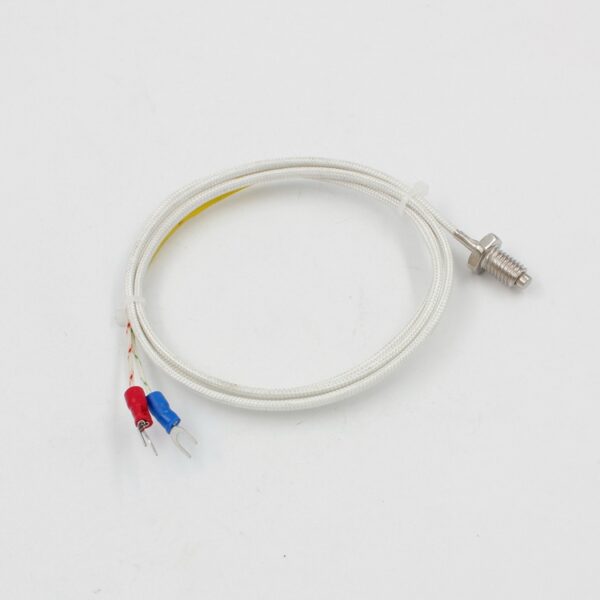

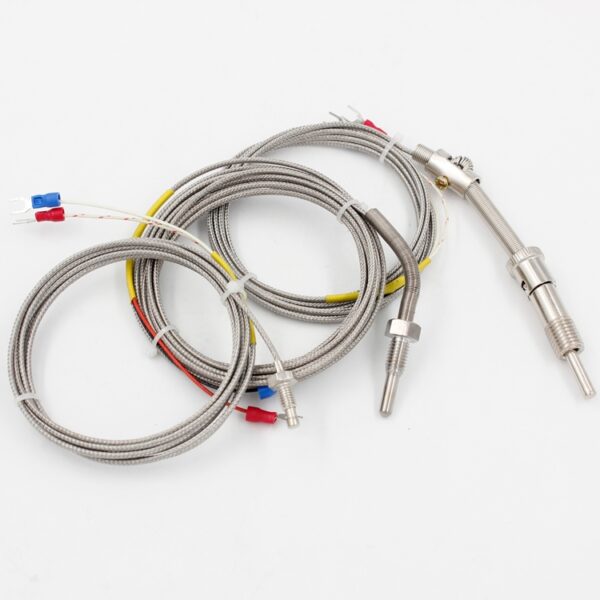

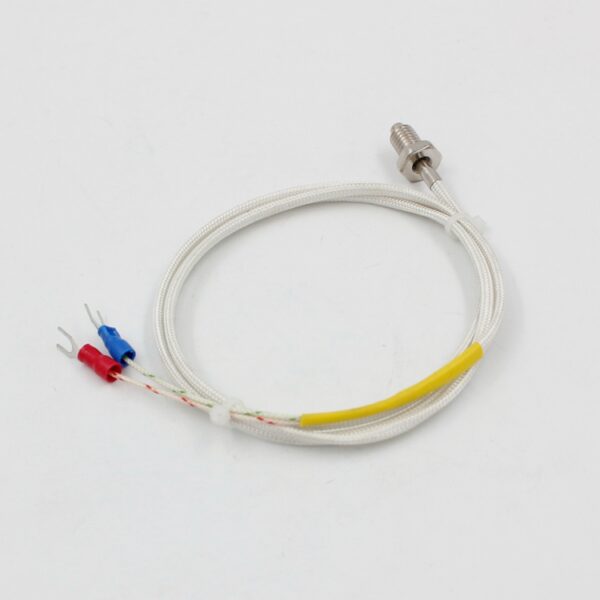

Industrial M6 M8 thread screw K/J type thermocouple with 2m lead wire
Screw K/J type thermocouple is a simple and reliable temperature sensor used in various industrial applications for temperature measurement.
Descrição
Industrial M6 M8 thread screw K/J type thermocouple with 2m lead wire
Descrição do produto
Screw thermocouple is suitable for measuring the surface temperature of turbine and motor bearing or other body in power plant. The end thermocouple is suitable for measuring the surface temperature of turbine, motor bearing or other body in power plant. Widely used in packaging food, pharmaceutical, plastic machinery, borracha, oven, etc., high quality, can completely replace the import of similar products. The outer layer of the shield wire is tightly woven and flexible.
Type K (chromel – alumel) is the most common general purpose thermocouple with a sensitivity.
Specifications: High quality.
Modelo: screw K/J type thermocouple
Screw head specification: M6 (default M6, if M8 or other, please contact the seller).
Tail length: 1000mm -10000mm (can be customized)
Temperature Range: 0-800.
Thread Diameter: 6milímetros / 0.23.
Internal Insulation: Fiberglass.
External Shielding: Metal Shield.
Indexing number: K, E, etc.. (can be customized) Indexing number: K, E, Pt100……
The linear thermocouple K type use temperature is generally not more than 600 graus; E-type use temperature generally not more than 400 graus; Pt100 thermal resistance temperature -200+450 graus, if you have special requirements, please contact the seller.
Cable Material | Shielded wire, Fiberglass, PTFE, Silício |
Thread Size | M5/M6/M8 |
K | 0-800°C |
J. | 0-600°C |
E | 0-400°C |
PT100 | -200-500°C |
Thread Size | M6*1/M6*1.25 |
Imagens de detalhes
