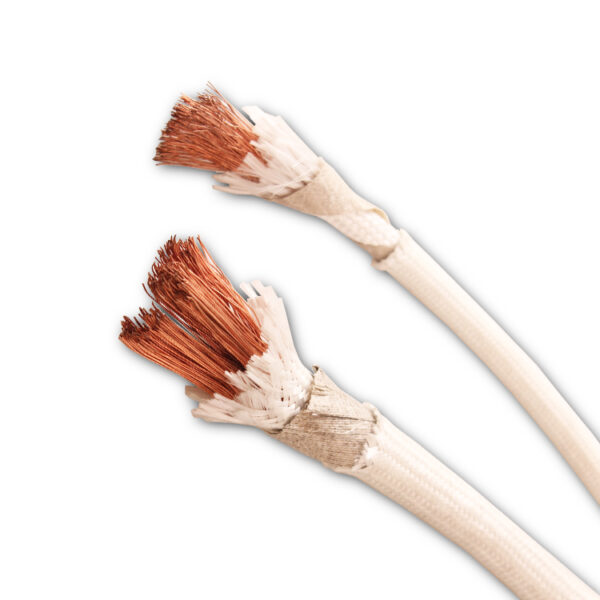

Pure Copper Mica High Temperature Fire Resistance Cable Wrapping Fiberglass Braided Wire

Mica high temperature fire resistance cable is a type of cable that can withstand extreme temperatures and resist fire. Made of mica insulation.


Descrição

Descrição do produto
Pure Copper Mica High Temperature Fire Resistance Cable Wrapping Fiberglass Braided Wire
Feature

Mica high temperature wire temperature tolerance of 500 °C and 600°CSpecification: 0.5mm², 0.75mm², 1mm², 1.5mm², 2mm², 2.5mm², 4mm², 6mm².Operating voltage: 600V or less (AC)Faixa de temperatura: 0-500°CLong-term allowable use temperature 500 CLaying conditions: fixed layingRelative temperature: 65%Can be bent to use, plus the flame does not burn, no harmful toxic gases.GN500 C refractory high temperature, anti-aging, wear, flexible bending performance. Can be bent to use, plus flame does not burn, fire retardant, longa vida útil.

StructureConductor: Pure Copper Insulation: Fiberglass Wrapping Jacket: Fiberglass Braid

Mica high temperature fire resistance cable
Aplicativo
Applicable to high-temperature environment AC rated voltage 600V or less electrical circuit installation and connection, widely used in electromagnetic heating coil, metalurgia, petroleum, químico, oil refining, natural gas and other special environments, various mechanical manufacturing fields, various electrical devices requiring fire performance The required wire and cable, as well as various electric heating equipment, electric heating devices and so on.
Especificação
Mica high temperature fire resistance cable
Conductor
Outer Diameter mm
Electrical Properties
Embalagem
Sectional Area mm2
Jacket Thickness mm
Max Conductor
Resistance DC 20°C
M/coll
0.50
7×0.30
2.6±0.3
39.0
200
0.75
11×0.30
2.7±0.3
26.0
200
1.0
7X0.41
2.8±0.3
19.5
200
1.5
21×0.30
3.0±0.3
13.3
100
2.0
28×0.30
3.3±0.3
10.0
100
2.5
35×0.30
3.6±0.5
7.98
100
4.0
56×0.30
4.5±0.5
4.95
100
6.0
84×0.30
5.5±0.5
3.30
100
10
140×0.30
6.6±0.5
1.91
100
16
228×0.30
7.8±0.5
1.21
100
25
361×0.30
9.5±0.5
0.78
100
35
494×0.30
11.2±1.0
0.554
100
50
703×0.30
13.2±1.0
0.386
100
70
988×0.30
15.4±1.0
0.272
100
95
960×0.40
17.4±1.0
0.206
100
Imagens de detalhes
Mica High Temperature Fire Resistance Cable
GN500 degree mica high temperature fire resistance cable
Adopt pure copper wire, high temperature resistant fire retardant braided layer, mica wrapping high temperature resistant
Selfflameout, good flame retardant
High purity alkalifree glass fiber has good flame retardancy and selfextinguishing
Mica High Temperature Fire Resistance Cable
Mica High Temperature Fire Resistance Cable
Good flexibility
Refractory mica tape wrapped + two layers of glass fiber temperature -60~500 degrees, fire retardant
Exposição de produtos
Mica High Temperature Fire Resistance Cable
Mica High Temperature Fire Resistance Cable
Mica High Temperature Fire Resistance Cable
produtos relacionados
Embalagem & Entrega
Mica High Temperature Fire Resistance Cable
perfil de companhia
Mica High Temperature Fire Resistance Cable
Mica High Temperature Fire Resistance Cable
