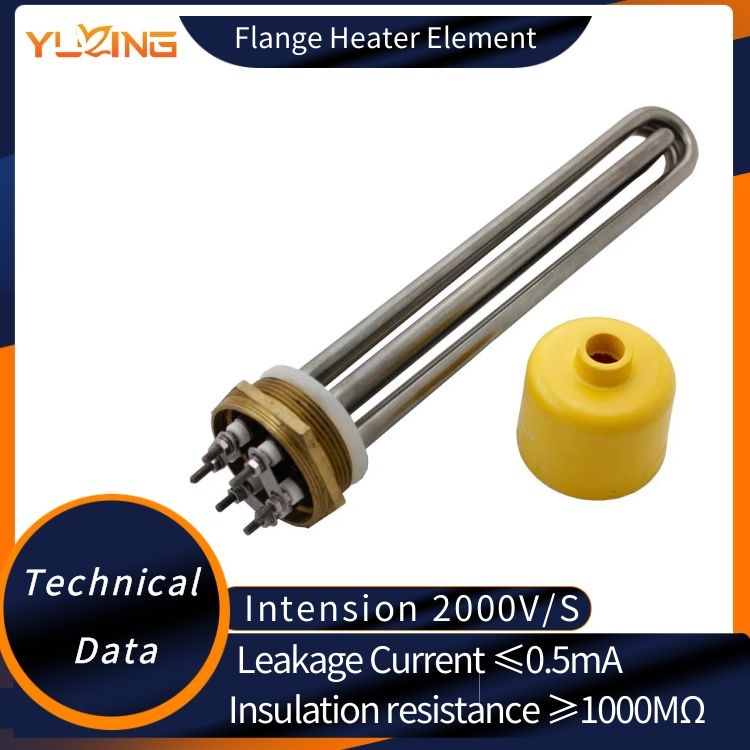

120V 240V 480V Heat Water Flange Immersion Heater Element

The Immersion Heater Element is a versatile and durable heating solution used to heat liquids in various industrial and commercial heating applications, providing efficient heat transfer.


Descrição

120V 240V 480V Heat Water Flange Immersion Heater Element
Descrição do produto
120V 240V 480V Heat Water Flange Immersion Heater Element are designed for heating or temperature maintening of liquids, gas or mixture in static or circulation conditions.The design is based on customer process conditions: fluid to heat (type and properties), in/out temperature, pressure, heat exchange conditions (stagnant or flowing), and environment conditions (ATEX or not, onshore or offshore, etc.). Flange immersion heaters can be straight or L-shaped.
Flange size
DN 50 to DN 800
Screw plug size
1″- 3″
Diâmetro do tubo
8-16 milímetros
Immersion Length
150milímetros- 1500milímetros
Heating Element
3 elements, 4 elements, 6 elements, 10 elements etc under customer request
Wattage density
2-8W/cm2
Tensão
UP to 600V
Material da bainha
Stainless Steel 304 316L 310S Copper Incoloy 800 840
Built in thermostat well
Built-in thermostat wells can be installed upon request. When ordering, please provide length BUILT-IN THERMOSTAT WELL andinternal diameter
Immersion Heater Element
Immersion Heater Element
Immersion Heater Element
Immersion Heater Element

>>How to choose the right Material for immersion heater?

Tipo
Characteristic
Iron
Easy to rust,used in places with high loss and no special requirements
201 Stainless Steel
Good quality than iron pipe,suitable for most working enviroments,temperature less than 300℃
304 Stainless Steel
Better quality than 201,can be used in a slightly corrosive enviroment,can withstand 450℃
316 Stainless Steel

Can be used in corrosive environments

2520 stainless steel-can withstand 1300℃,special high temperature,high cost
Outsourcing Teflon
Special used in highly corrosive environments,99% of strong acid and alkali does not react
Titanium
Dedicated to highly corrosive environments,resistência a altas temperaturas,expensive construction,long life
