OEM Explosion-Proof Tubular Heater Immersion Flange Heater Heating Equipment Heating Element with Core Heating Wire SS304
OEM Explosion-Proof Tubular Heater Immersion Flange Heater Heating Equipment Heating Element with Core Heating Wire SS304
Descrição
OEM Explosion-Proof Tubular Heater Immersion Flange Heater Heating Equipment Heating Element with Core Heating Wire SS304
Descrição do produto

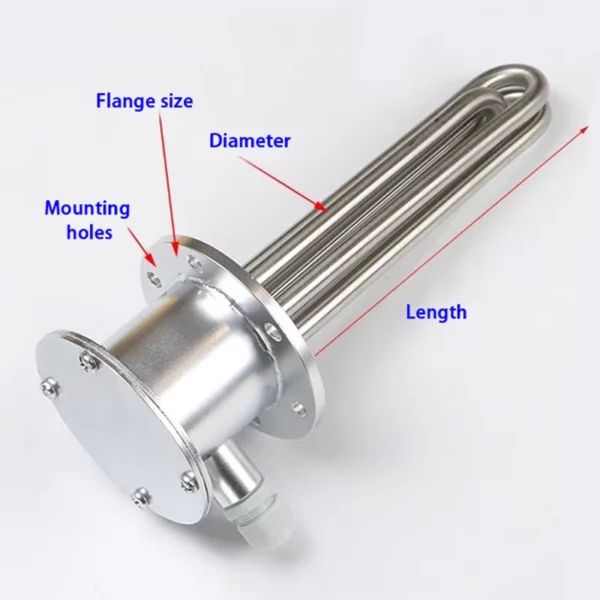

Explosion-proof Flange Heater
high power explosion-proof flange heater is an electric heating equipment with the advantages of environmental friendly energy saving and long service life. Adopting high standard materials, and with excellent explosion-proof structure, when the heating element is over-temperature, it can avoid the heating element burning, and effectively extend the service life of the electric heating tube. Então, this product can be widely used in petroleum, químico, natural gas, mining and other places that need explosion-proof.
Any request, please do not hesitate to let me know.
Especificação
Nome do Produto | Explosion-proof Flange Heater |
Material da bainha | Aço inoxidável 304, 316eu, 310S,Cobre, Titaninum, incoloy800, incoloy840 |
Rated Voltage | 220v/380v/Customized |
Poder | 5kw~100kw/Customized |
Diâmetro do tubo | 8milímetros,10milímetros,12milímetros,14mm/Customized |
Connection Type | Thread/Flange/ Clamp/Customized |
Rosca | NPT / BSP Thread |
Round Flange Size | DN50 DN80 DN100 DN120 DN150 DN200 etc |
Terminal Cover Material | Aço inoxidável, Plastic |
Heating Medium | Gas / Oil / Water |
These flanged heater products are designed for heating heat transfer fluids, medium and lightweight oils and water in tanks andpressure vessels. Plate flanged heaters are ideal for applications requiring low to medium wattage requirements. Flanged heatersare made with tubular elements that are brazed or welded to the flange. Stock plate flanged heaters are supplied with generalpurpose or moisture-resistant terminal enclosures.
Material | Maximum Operating Temperatures | Maximum Watt Densities | ||
Alloy 800 | 1600 F° | 870 F° | 100 W/in2 | 15.5 C/cm2 |
304 Aço inoxidável | 1200 F° | 650 F° | 100 W/in2 | 15.5 C/cm2 |
Steel | 750 F° | 400 F° | 30 W/in2 | 4.7 C/cm2 |
1. Tensão: 220 V / 380 v Power: how many kilowatts?
2. Flange diameter or model (round flange, square flange, screw flange,triangular flange)
3. Pipe length and diameter
4. Use environment of electric heating pipe
5. Our company can produce according tothe drawing or design for free
Please consider the following factors in order to select the proper sheath material:
Material da bainha | Aplicativo |
Stainless Steel304 316L | Light oils , In forced oil circulation loops |
Stainless Steel304 316L or Copper | ater, Freeze protection, Hotwater storage, Boilerandwaterheaters, Coolingtowers, Solution not corrosive to copper, Food equipment |
Stainless Steel 316L 310s or Incoloy | Oil, Heavy and non-circulated oils, Solution water, Corrosive solutions, Steam super heating |
Stainless Steel304 316L | Process water, Soap and detergent solutions, Soluble cutting oils, Demineralized or deionized water |
Stainless Steel304 316L | Fluid heat transfer media, Tar, High to low viscosity petroleum oils, Asphalt, Wax, Paraffin, Degreasing solvents, Alcohol, Moltensalt, Solutions not corrosive to steel |

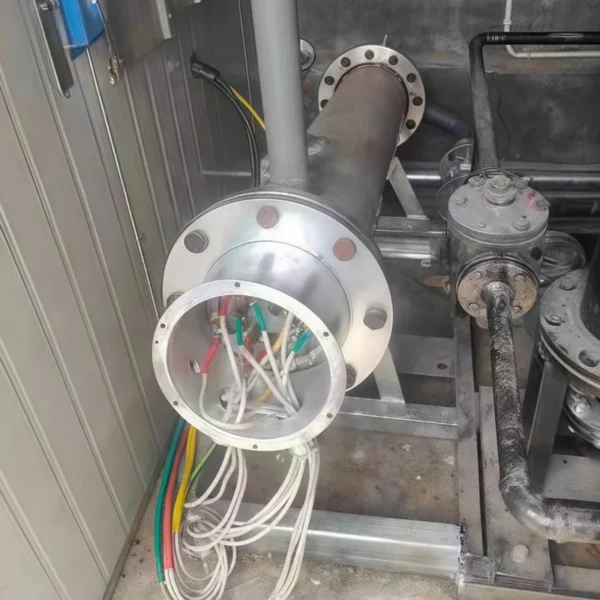

Installation display
Embalagem & Entrega
Perguntas frequentes

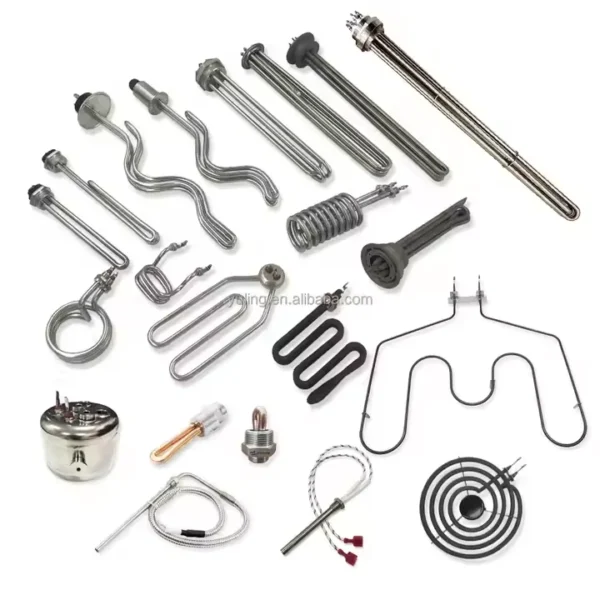

1. quem somos nós?Estamos baseados em Jiangsu, China, começar a partir de 2010, vender para a Oceania(50.00%),América do Norte(30.00%),América do Sul(10.00%),Sul da Europa(10.00%). Há um total de cerca de 11-50 pessoas em nosso escritório.2. como podemos garantir qualidade?Sempre uma amostra de pré-produção antes da produção em massa;Sempre inspeção final antes do envio;3.o que você pode comprar de nós?Cartridge Heater/Cast-In Heater/Circulation Heater/Enginee Block Heater/Open Coil Heater, Finned Heater/Strip Heater/Heating Element4. por que você deveria comprar de nós e não de outros fornecedores?1.Mais do que 40 anos de experiência
2.UL CE RoHS CQC ISO9001:2008
3.O R&Equipe D
4.Provide test report
5.Support product design5. quais serviços podemos fornecer?Termos de entrega aceitos: FOB,CFR,CIF,EXW,DDU,Entrega Expressa；Moeda de pagamento aceita:USD,EUR,CNY;Tipo de pagamento aceito: T/T,L/C,D/P D/A,MoneyGram,Cartão de crédito,PayPal,Western Union,Dinheiro,Garantia;Língua falada:Inglês,chinês,Francês
2.UL CE RoHS CQC ISO9001:2008
3.O R&Equipe D
4.Provide test report
5.Support product design5. quais serviços podemos fornecer?Termos de entrega aceitos: FOB,CFR,CIF,EXW,DDU,Entrega Expressa；Moeda de pagamento aceita:USD,EUR,CNY;Tipo de pagamento aceito: T/T,L/C,D/P D/A,MoneyGram,Cartão de crédito,PayPal,Western Union,Dinheiro,Garantia;Língua falada:Inglês,chinês,Francês
