Industrial Electric Fin Tube Heater U-Type Air Heating Element for Load Bank New Stainless Steel Restaurant Retail Industries
Efficient heating with Electric Fin Tube Heater! Easy to install and use, providing consistent and comfortable warmth. Perfect for use in homes, offices, and commercial spaces. Economical and energy-saving, heat your space with this reliable and durable heater.
Descrição
Industrial Electric Fin Tube Heater U-Type Air Heating Element for Load Bank New Stainless Steel Restaurant Retail Industries
Descrição do produto
Electric Fin Tube Heaters are the most common heaters and are best suited for a large number of applications such as conduction, convection, and radiation. the heaters can be produced almost any shape or size.Electric Fin Tube Heater is constructed like basic tubular elements with the addition of continuous spiral fins,4-5 per inch permanently furnace brazed to the sheath. Fins greatly increase surface area and permit faster heat transfer to air, resulting in lower surface element temperatures.
Technical Details | |
Construction Diameter | 8MM 10MM 12MM 14MM 16MM 18MM 20MM. etc. |
Material do tubo | stainless steel 304/321/316/310S,Incoloy 800 840 |
Ppwer Tolerance | Tolerance±10% |
Use of Alloys | Suitable for heater tube AISI 304 in water or humid enviroment max temperature up to 170°C. In air max 220°C |
Fio | M12 M14 M16 M18 |
Watt Density | Tube watt density of 30 watts sq in-suitable for many uses |
Custom | Custom configurations, lengths, watts, volts available |
TUBE MATERIAL | FIN MATERIAL | TUBE DIA.(MILÍMETROS) | FIN HEIGHT (MILÍMETROS) | FIN THICKNESS (MILÍMETROS) | FIN PITCH (MILÍMETROS) |
SS304/316/321/Incoloy | S.Steel / mild Steel | Φ6.7 | 3-5 | 0.3-0.4 | 3-5 |
SS304/316/321/Incoloy | S.Steel / mild Steel | Φ8 | 3-5 | 0.3-0.4 | 3-5 |
SS304/316/321/Incoloy | S.Steel / mild Steel | Φ9 | 3-5 | 0.3-0.4 | 3-5 |
SS304/316/321/Incoloy | S.Steel / mild Steel | Φ10 | 5-7 | 0.3-0.4 | 3-7 |
SS304/316/321/Incoloy | S.Steel / mild Steel | F12 | 5-7 | 0.3-0.4 | 3-7 |
SS304/316/321/Incoloy | S.Steel / mild Steel | Φ14 | 5-10 | 0.3-0.4 | 3-7 |
SS304/316/321/Incoloy | S.Steel / mild Steel | Φ16 | 5-10 | 0.3-0.4 | 5-10 |
SS304/316/321/Incoloy | S.Steel / mild Steel | Φ20 | 5-10 | 0.3-0.4 | 7-10 |
How to order?

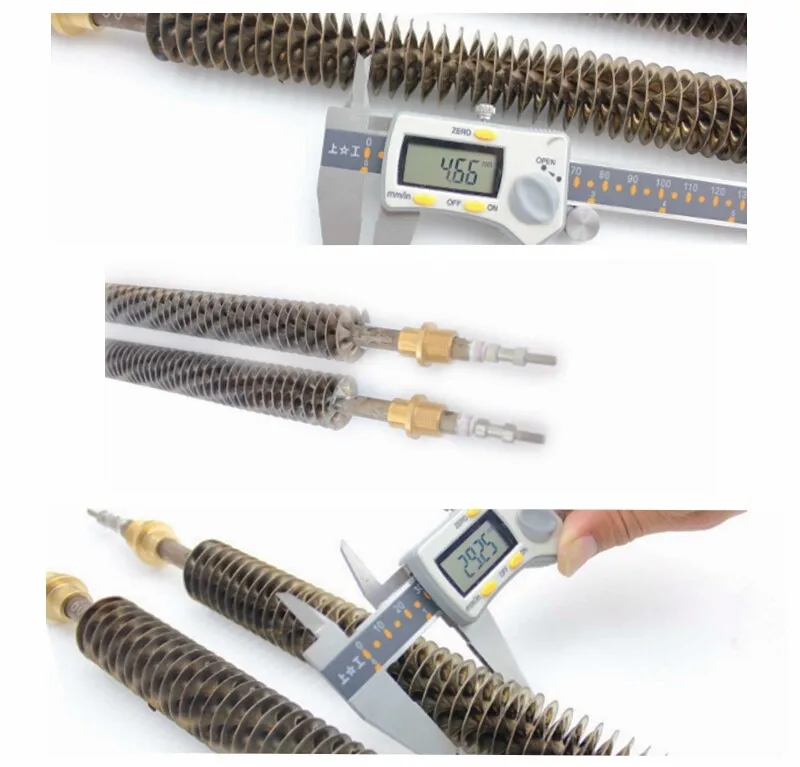

Imagens de detalhes
Aplicativo
Avaliação do cliente
Embalagem & Entrega
perfil de companhia
Estamos ansiosos pela oportunidade de trabalhar com você e fornecer os produtos e serviços excepcionais pelos quais somos conhecidos..
Perguntas frequentes
1. Who are we?Estamos baseados em Jiangsu, China, começar a partir de 2010, vender para a Oceania(50.00%),América do Norte(30.00%),América do Sul(10.00%),Sul da Europa(10.00%). We have 500 ㎡ of office and 8000 ㎡of factory. 2. How can we guarantee quality?Sempre uma amostra de pré-produção antes da produção em massa;Sempre inspeção final antes do envio;3.What can you buy from us?Cartridge Heater/Cast-In Heater/Circulation Heater/Engine Block Heater/Open Coil Heater, Finned Heater/Strip Heater/Heating Element4. Why should you buy from us not from other suppliers?1.Mais do que 40 years experience
