New 500w 800w 1000w Stainless Steel Finned Heater Air Tubular Heater Electric Air Fin Heater
An Air Fin Heater is a highly efficient and effective device used to transfer heat from one medium to another. It utilizes a series of fins to increase the surface area of heat transfer, resulting in faster and more efficient heating.
Descrição
500w 800w 1000w Stainless Steel Finned Heater Air Tubular Heater Electric Air Fin Heater
Descrição do produto

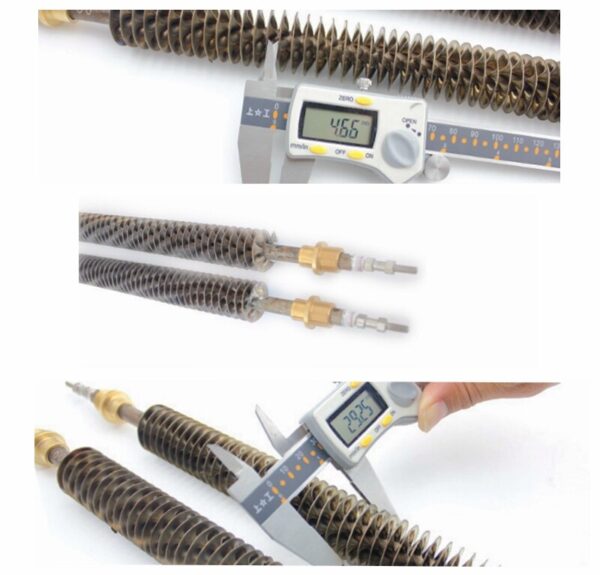

Air Fin Heaters are the most common heaters and are best suited for a large number of applications such as conduction, convection, and radiation. the heaters can be produced almost any shape or size.Air Fin Heater is constructed like basic tubular elements with the addition of continuous spiral fins,4-5 per inch permanently furnace brazed to the sheath. Fins greatly increase surface area and permit faster heat transfer to air, resulting in lower surface element temperatures.
Technical Details | |
Construction Diameter | 8MM 10MM 12MM 14MM 16MM 18MM 20MM. etc. |
Material do tubo | stainless steel 304/321/316/310S,Incoloy 800 840 |
Power Tolerance | Tolerance±10% |
Use of Alloys | Suitable for heater tube AISI 304 in water or humid enviroment max temperature up to 170°C. In air max 220°C |
Fio | M12 M14 M16 M18 |
Watt Density | Tube watt density of 30 watts sq in-suitable for many uses |
Custom | Custom configurations, lengths, watts, volts available |
TUBE MATERIAL | FIN MATERIAL | TUBE DIA.(MILÍMETROS) | FIN HEIGHT (MILÍMETROS) | FIN THICKNESS (MILÍMETROS) | FIN PITCH (MILÍMETROS) |
SS304/316/321/Incoloy | S.Steel / mild Steel | Φ6.7 | 3-5 | 0.3-0.4 | 3-5 |
SS304/316/321/Incoloy | S.Steel / mild Steel | Φ8 | 3-5 | 0.3-0.4 | 3-5 |
SS304/316/321/Incoloy | S.Steel / mild Steel | Φ9 | 3-5 | 0.3-0.4 | 3-5 |
SS304/316/321/Incoloy | S.Steel / mild Steel | Φ10 | 5-7 | 0.3-0.4 | 3-7 |
SS304/316/321/Incoloy | S.Steel / mild Steel | F12 | 5-7 | 0.3-0.4 | 3-7 |
SS304/316/321/Incoloy | S.Steel / mild Steel | Φ14 | 5-10 | 0.3-0.4 | 3-7 |
SS304/316/321/Incoloy | S.Steel / mild Steel | Φ16 | 5-10 | 0.3-0.4 | 5-10 |
SS304/316/321/Incoloy | S.Steel / mild Steel | Φ20 | 5-10 | 0.3-0.4 | 7-10 |
How to order?
Imagens de detalhes
Aplicativo
Avaliação do cliente
Embalagem & Entrega
perfil de companhia
Since our establishment in 1996, we have been located in the renowned Qingtong Industrial Park, Distrito de Jiangyan, Cidade de Taizhou, Província de Jiangsu. Como um fornecedor conhecido de marcas líderes como Haier, Agora, Sampux, Parar, e outros, our products are of the highest quality and sold mainly in the European market.At Yuling, temos orgulho do nosso compromisso com a qualidade e segurança, evidenciado por nossas certificações como a ISO9001:2008 sistema de qualidade internacional, Segurança do produto CQC, CE, RoHS, e testes UL. Nós nos esforçamos para manter os mais altos padrões em nossos produtos e serviços e melhorar continuamente nossos processos de produção.
Perguntas frequentes
1. Who are we?Estamos baseados em Jiangsu, China, começar a partir de 2010, vender para a Oceania(50.00%),América do Norte(30.00%),América do Sul(10.00%),Sul da Europa(10.00%). We have 500 ㎡ of office and 8000 ㎡of factory. 2. How can we guarantee quality?Sempre uma amostra de pré-produção antes da produção em massa;Sempre inspeção final antes do envio;3.What can you buy from us?Cartridge Heater/Cast-In Heater/Circulation Heater/Engine Block Heater/Open Coil Heater, Finned Heater/Strip Heater/Heating Element4. Why should you buy from us not from other suppliers?1.Mais do que 40 years experience
