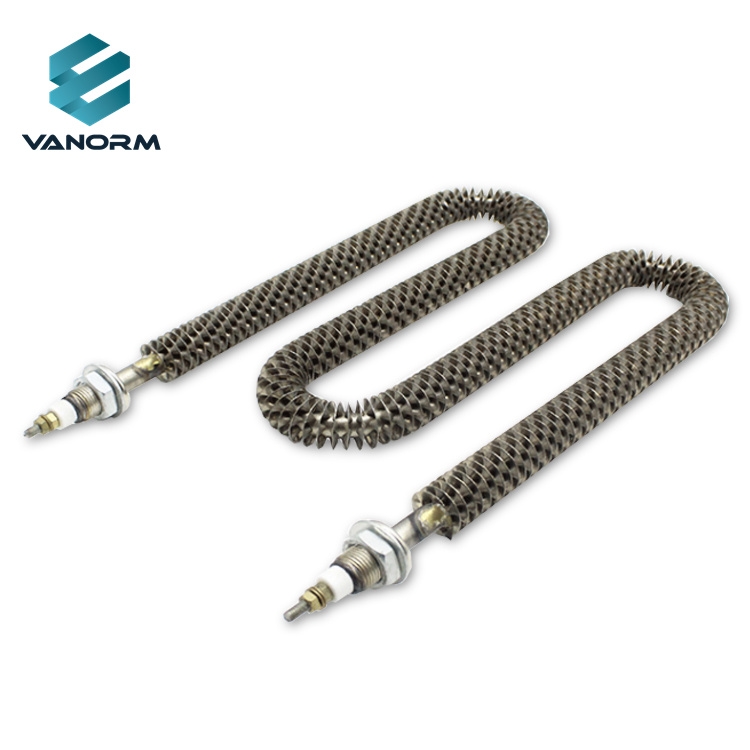

Customized 240V 5KW Finned Tubular Heater Element 304 Incoloy 840 Stainless Steel for Air Heating

Customized 240V 5KW Finned Tubular Heater Element 304 Incoloy 840 Stainless Steel for Air Heating


Descrição

Customized 240V 5KW Finned Tubular Heater Element 304 Incoloy 840 Stainless Steel for Air Heating
Descrição do produto
Finned Heater are the most common heaters and are best suited for a large number of applications such as conduction, convection, and radiation. the heaters can be produced almost any shape or size.

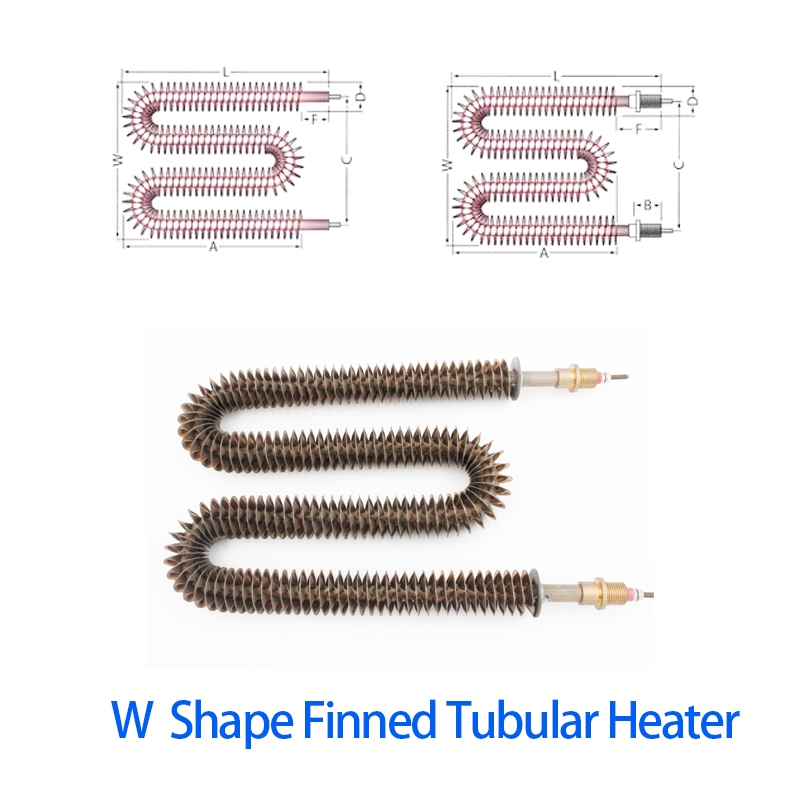

Air duct electric finned tubular heater is constructed like basic tubular elements with the addition of continuous spiral fins,4-5 per inch permanently furnace brazed to the sheath. Fins greatly increase surface area and permit faster heat transfer to air, resulting in lower surface element temperatures.

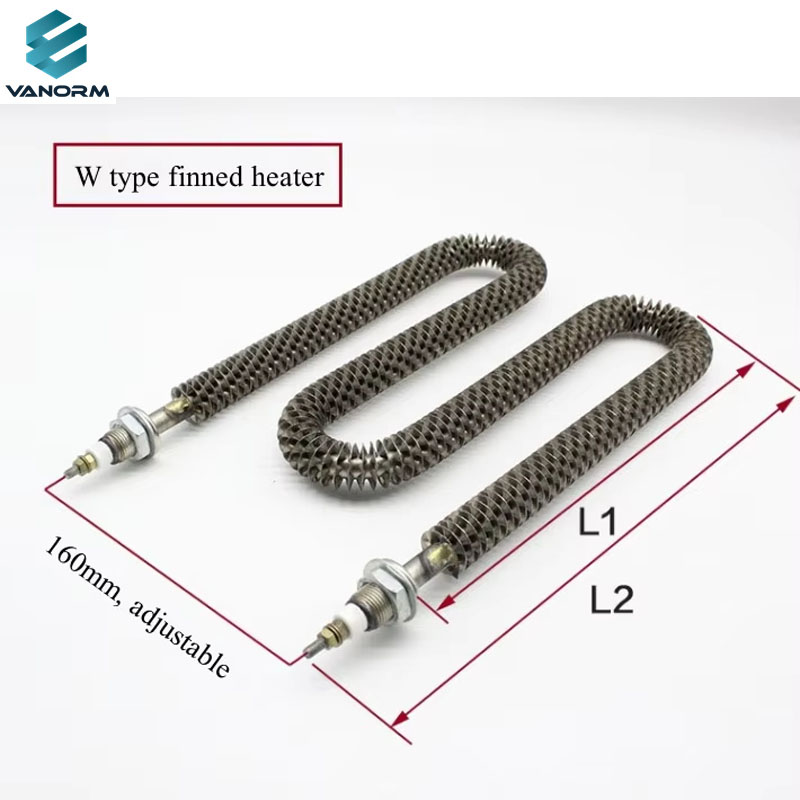

Finned Tubular Heater Element
Finned Tubular Heater Element
Finned Tubular Heater Element
Finned Tubular Heater Element
Especificação
Technical Details
Construction Diameter
8MM 10MM 12MM 14MM 16MM 18MM 20MM. etc.
Material do tubo
stainless steel 304/321/316/310S,Incoloy 800 840
Ppwer Tolerance
Tolerance±10%
Use of Alloys
Suitable for heater tube AISI 304 in water or humid enviroment max temperature up to 170°C. In air max 220°C
Fio
M12 M14 M16 M18
Watt Density
Tube watt density of 30 watts sq in-suitable for many uses
Custom
Custom configurations, lengths, watts, volts available

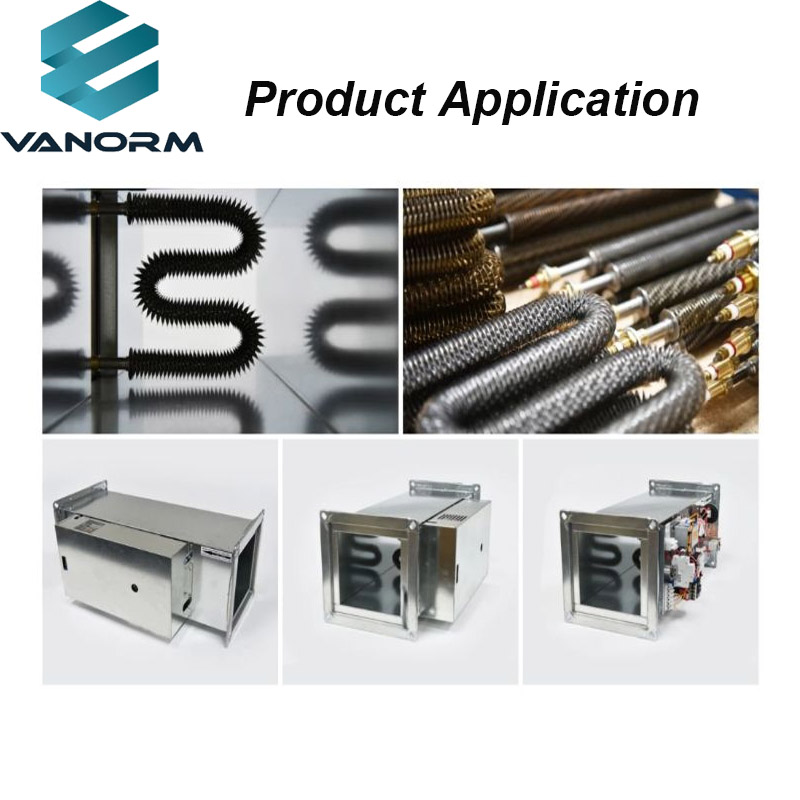

Aplicativo
Finned Tubular Heater Element
Embalagem & Entrega
Finned Tubular Heater Element
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
perfil de companhia
we have passed the industry qualification certification to protect the product quality. We provide one-stop procurement services to reduce the procurement cost for customers.We offer a service of batch remittance to alleviate the pressure on customerscapital turnover.
Perguntas frequentes
1. quem somos nós?Estamos baseados em Jiangsu, China, start from 2021,sell to North America(90.00%),Domestic Market(10.00%). Há um total de cerca de 11-50 pessoas em nosso escritório.2. como podemos garantir qualidade?Sempre uma amostra de pré-produção antes da produção em massa;Sempre inspeção final antes do envio;3.o que você pode comprar de nós?Elemento de aquecimento, Ventilation Products, Thermocouple4. por que você deveria comprar de nós e não de outros fornecedores?we have passed the industry qualification certification to protect the product quality. We provide one-stop procurement services to reduce the procurement cost for customers.5. quais serviços podemos fornecer?Termos de entrega aceitos: FOB,EXW,DDP;Moeda de pagamento aceita:USD;Tipo de pagamento aceito: T/T,L/C,D/P D/A;Língua falada:Inglês,chinês,Francês
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
